🔧 Formula Z Performance Z-Pipes: How to Choose the Right Model for Your Application
The Z-Pipe by Formula Z Performance is a patent-pending dual exhaust crossover that does the job of a traditional X-pipe or H-pipe in a fraction of the space — balancing exhaust pulses between banks for improved scavenging, sharper throttle response, and a refined, exotic tone. Every model is 3D printed from 316L stainless steel using DMLS and SLM technology, with internal geometry that cannot be fabricated from mandrel-bent tube.
The right model comes down to one question: where is your engine, and where does your exhaust exit? This guide walks through every model, which vehicles each suits, and how to choose between them.
QUICK RECOMMENDATION GUIDE
- Front-engine, adding to an existing exhaust: Straight Classic
- Front-engine, building a new exhaust around the Z-Pipe: Classic with 45° Inlet
- Front-engine, tight transmission tunnel or low-clearance chassis: Ultra-Narrow Straight Classic
- Most mid-engine cars: SuperCar Style
- Rear-engine Porsche 911 or similar packaging: Opposing Style
- Corvette C8 (non-Z06): SuperCar or Opposing — see the C8 note below
- C8 Z06 / ZR1 with four center tips: C8 Z06/ZR1 Specific model
- GT3/GT4-style center-exit bumper, trophy truck, dune buggy, or tube-frame build: Center Exit Style
CLASSIC MODEL — MOST FRONT-ENGINE VEHICLES
The Classic is the main fitment for most modified vehicles — the correct model for roughly 80–85% of front-engine cars where the exhaust runs rearward through the transmission tunnel and exits out the back. It is generally the best choice when replacing an existing X-pipe or H-pipe, and it offers the most freedom of placement of any model in the lineup.
Placement tip: install the Z-Pipe as far forward in the exhaust or driveshaft tunnel as practical to maximize the scavenging effect.
Three variants cover different packaging situations:

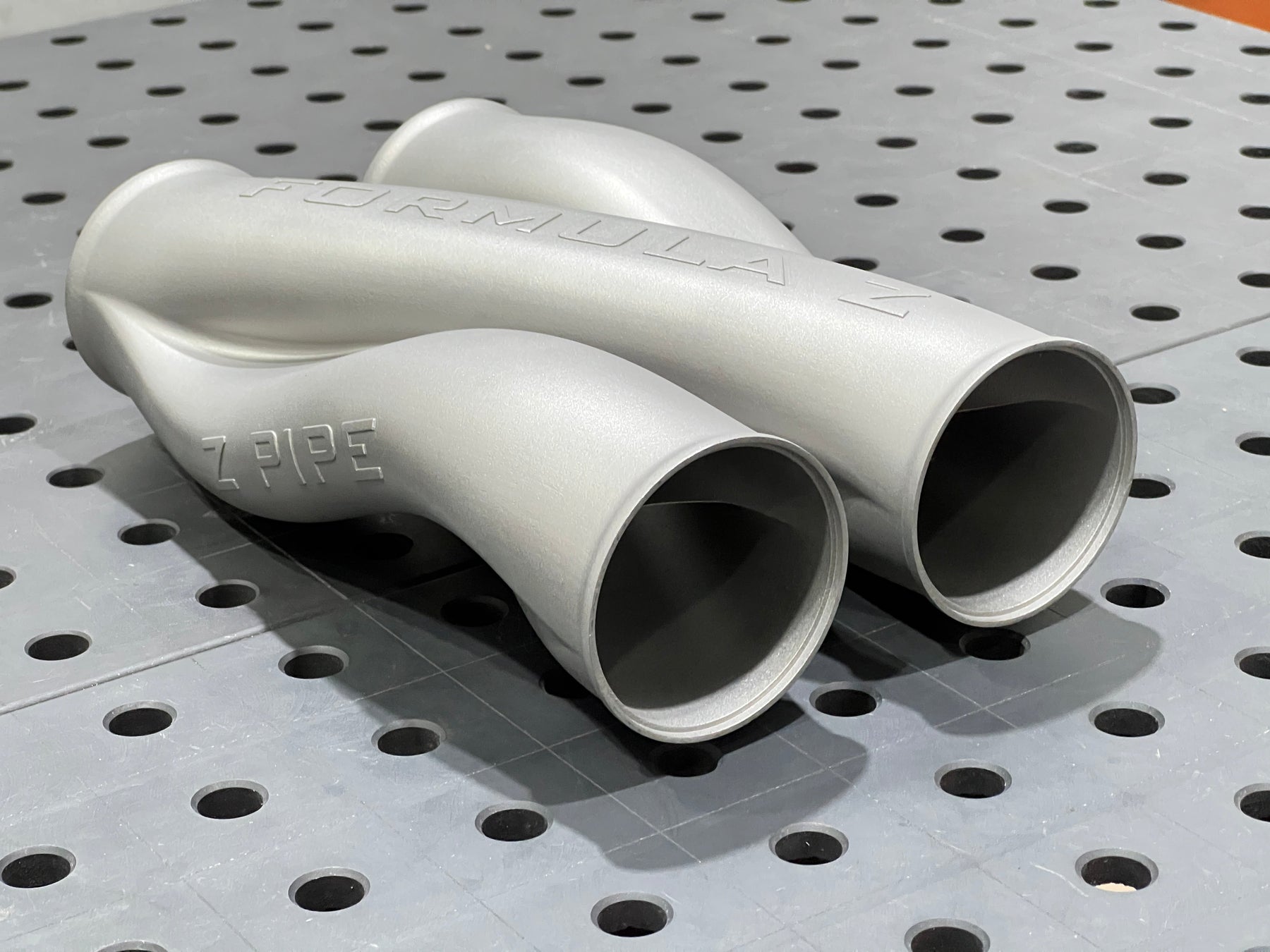

- Straight Classic — the retrofit choice, with flexible placement along an existing system. Available in 2.500", 2.750", and 3.000" ID.
- Classic with 45° Inlet — integrated 45° bends at the inlet side help packaging and let the Z-Pipe sit farther forward in the car, packaging far tighter than welding separate bends to a straight unit. The best choice when building a new exhaust system around the Z-Pipe. Available in 3.000" and 3.500" ID.
- Ultra-Narrow Straight Classic — the slimmest body in the lineup, with the same constant cross-sectional area, for tight transmission tunnels and low-clearance chassis. Available in 2.500" and 3.000" ID.
Shop all variants: Classic Style Z-Pipes
SUPERCAR MODEL — MOST MID-ENGINE VEHICLES
Originally designed around a nearly plug-and-play exhaust system for the McLaren 720S, the SuperCar model covers the vast majority of mid-engine vehicles — the short run between the engine and rear bumper leaves no room for a traditional crossover, and the SuperCar geometry is shaped for exactly that space. It fits very well on the Audi R8 V8/V10, Lamborghini Huracán, Aventador, and Revuelto, and Ferrari F430, F8 Tributo, and SF90, among many other mid-engine platforms.
McLaren 750S and 765LT: these platforms require extended inlet legs due to changes in turbo location — email us at support@aceraceparts.com before ordering.
Shop it here: SuperCar Style Z-Pipe – 3.000" ID
OPPOSING MODEL — REAR-ENGINE PACKAGING
The Opposing model was created to solve the specific packaging problem of rear-engine 911 layouts: with the engine behind the rear axle, there is very little lengthwise room for exhaust routing, mufflers, resonators, and bumper clearance. The Opposing runs very short lengthwise and uses more vertical stack height to create room in a short rear bumper area — which can leave space for a second pair of tubes, resonators, and mufflers behind the bumper.
Beyond Porsche 911 platforms, the Opposing is also used on the Dodge Viper, Ferrari 488, Ferrari 458 Speciale and Competizione, mid-engine Corvette C8 (non-Z06), and kit cars with similar packaging constraints. Available in 2.250", 2.500", and 3.000" ID.
Shop all sizes: Opposing Style Z-Pipes
CENTER EXIT MODEL — GT3/GT4 AND CUSTOM BUILDS
The Center Exit model was originally designed for Porsche GT3 and GT4-style cars, where the exhaust exits through the center of the bumper, and merges both banks into a centered configuration with precise exhaust alignment. It has since been used on a much wider range of builds — older 993 and 964 race cars, trophy trucks, dune buggies, and tube-frame customs. Available in 2.500" and 3.000" ID; check the dimensional drawings on each product page to match your tip center-to-center spacing before ordering.
Shop all sizes: Center Exit Style Z-Pipes
A NOTE FOR C8 CORVETTE OWNERS
The C8 splits two ways. The Z06 and ZR1 use four centrally mounted exhaust tips, so they take the dedicated C8 Z06/ZR1 Specific model, which splits flow to all four center tip locations — this also applies to Stingray and Grand Sport cars converting to the Z06/ZR1 rear bumper and center tips. Non-Z06 C8s have separate tips at the outer corners of the bumper and use either the SuperCar or Opposing model depending on the exhaust layout — email us with your build details and we will point you to the right one.
VEHICLE-SPECIFIC MODELS
Some platforms get a dedicated, direct-fit model where routing, clearances, and connection points are engineered for that chassis:
- Corvette C8 Z06 / ZR1 — 3.000" ID, four center-mounted tips
- Porsche 991.2 Carrera — 2.500" ID extra-wide center exit, for cars equipped with the Porsche Sport Exhaust (PSE) and center-exit bumper; non-PSE cars use the Opposing model
- Ferrari 458 Italia / Spider — 2.500" ID; 458 Speciale and Competizione use the Opposing model
Fitment guidance also exists for platforms including the Aston Martin DB11 and DBS, Mercedes-AMG GT/GTS/GTR, Ferrari Purosangue, and Koenigsegg Agera, Agera RS, and CCX — email us and we will match your platform to the right model and size.
QUICK REFERENCE
| Model | Best fit | Simple rule |
|---|---|---|
| Straight Classic | Most front-engine vehicles with rear-exit exhaust | The default choice for 80–85% of modified vehicles; best for retrofits |
| Classic 45° Inlet | Front-engine cars with tight packaging | Use when building the exhaust system around the Z-Pipe |
| Ultra-Narrow Classic | Tight tunnels and low-clearance chassis | Use when width is the constraint |
| SuperCar | Most mid-engine vehicles | Usually correct for mid-engine cars, including non-Z06 C8 |
| Opposing | Rear-engine layouts, especially Porsche 911 | Short length with more vertical stack height |
| Center Exit | GT3/GT4-style bumpers and custom builds | Use when the exhaust exits through the center |
| Vehicle-Specific | C8 Z06/ZR1, 991.2 PSE, Ferrari 458 | Direct fit engineered for the chassis |
STILL NOT SURE?
The best model depends on engine location, exhaust exit location, available straight length, vertical room, ground clearance, and whether you are retrofitting or building from scratch. Every product page includes a dimensional drawing for fitment verification. Email us at support@aceraceparts.com with your vehicle and exhaust details and we will point you to the right Z-Pipe.
Browse the full lineup: Formula Z Performance Z-Pipes
