DELIVERING MORE POWER WITH ENHANCED ACOUSTICS — Z-PIPE BY FORMULA Z
The Opposing Style Z-Pipe by Formula Z Performance routes the two exhaust banks in from opposing directions — a patent-pending crossover built for rear-engine layouts where no conventional X-pipe fits. Its short overall length and taller vertical stack height give it packaging flexibility that traditional crossovers cannot match. Engineered with precision, the Z-Pipe maintains a consistent, unrestricted exhaust pathway without reducing cross-sectional area, promoting smooth, high-velocity gas flow and increasing exhaust scavenging. This advanced design improves throttle response throughout the entire RPM range and boosts volumetric efficiency.
This 3.000" ID version is built for high-flow dual exhaust systems running 3.000" tubing — big-power rear-engine builds where full cross-section through the crossover matters.
Each Z-Pipe is precisely crafted from high-quality 316L stainless steel using advanced Direct Metal Laser Sintering (DMLS) and Selective Laser Melting (SLM) technologies, ensuring unmatched accuracy and durability — internal geometry that cannot be fabricated from mandrel-bent tube. Installation is straightforward as the Z-Pipe sits completely downstream of all emissions components, and its compact size makes it perfect even for the tightest installations. Experience a refined, clean, and exotic exhaust tone that is distinctly crisp and balanced across both exhaust banks.
FEATURES
- Opposing inlets for layouts where the banks approach from opposite directions
- Short overall length with taller vertical stack height for packaging flexibility
- Improved exhaust scavenging effect increases volumetric efficiency and horsepower
- Truly balanced flow between exhaust banks
SPECIFICATIONS
- Inlet/Outlet: 3.000" ID
- Material: 316L stainless steel
- Manufacturing: DMLS / SLM 3D printed

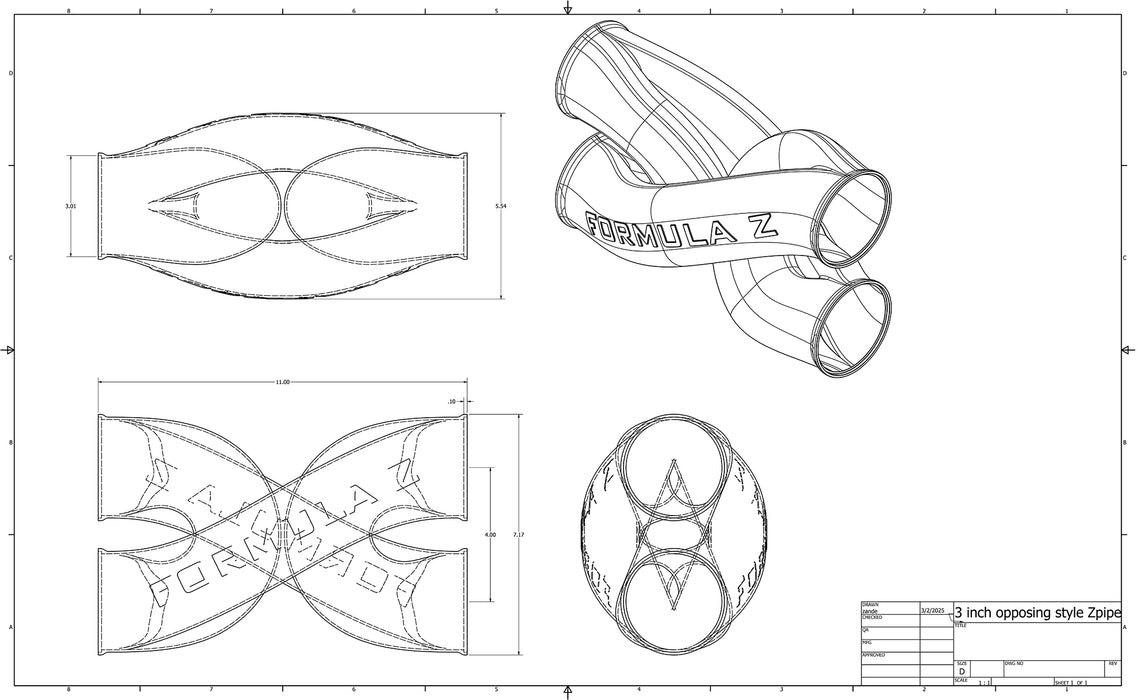

- Overall dimensions: 11.00" L x 5.54" H x 7.17" W
- Weight:
- Connection: Welding Required
APPLICATIONS
The Opposing Model was developed for rear-engine layouts with tight packaging constraints. Primary applications are Porsche 911 platforms and the mid-engine Corvette C8 (non-Z06), along with select rear-engine kit cars. It installs downstream of all emissions components — match the Z-Pipe ID to your exhaust tubing size.
Other layouts: Straight Classic for front-engine cars with rear-exit dual exhaust, SuperCar Style for mid-engine builds, and Center Exit Style for center-exit systems.
For the full breakdown of every model, see our guide: How to Choose the Right Z-Pipe for Your Application.
INSTALLED ON VEHICLE
Opposing Style Z-Pipe installation examples:
Z-PIPE CROSS-SECTION
FLOW MODEL COMPARISON
X-Pipe vs. H-Pipe vs. Z-Pipe Flow Comparison
