DELIVERING MORE POWER WITH ENHANCED ACOUSTICS — Z-PIPE BY FORMULA Z
The Corvette C8 Z06/ZR1 Specific Z-Pipe by Formula Z Performance is a direct-fit, patent-pending crossover engineered for the C8 Z06 and ZR1 chassis — routing, clearances, and connection points designed for this platform rather than adapted to it. Built as a two-inlet, four-outlet design, it feeds the factory quad center-exit tip layout directly, with no adapters or splitters. Engineered with precision, the Z-Pipe maintains a consistent, unrestricted exhaust pathway without reducing cross-sectional area, promoting smooth, high-velocity gas flow and increasing exhaust scavenging. This advanced design improves throttle response throughout the entire RPM range, boosts volumetric efficiency, and gives the flat-plane V8 an even sharper, more exotic edge.
Each Z-Pipe is precisely crafted from high-quality 316L stainless steel using advanced Direct Metal Laser Sintering (DMLS) and Selective Laser Melting (SLM) technologies, ensuring unmatched accuracy and durability — internal geometry that cannot be fabricated from mandrel-bent tube. The Z-Pipe sits completely downstream of all emissions components. Experience a refined, clean, and exotic exhaust tone that is distinctly crisp and balanced across both exhaust banks.
FITMENT
- Fits: Corvette C8 Z06 and ZR1
- Configuration: 2 inlets / 4 outlets, matched to the quad center-exit tip layout
- Install position: downstream of all emissions components
- Connection: welded into the exhaust system; professional installation recommended
Non-Z06 C8 owners: your platform uses one of our universal models — see the SuperCar Style Z-Pipe or the Opposing Style Z-Pipe depending on your exhaust configuration, and email us if you are unsure which suits your build.

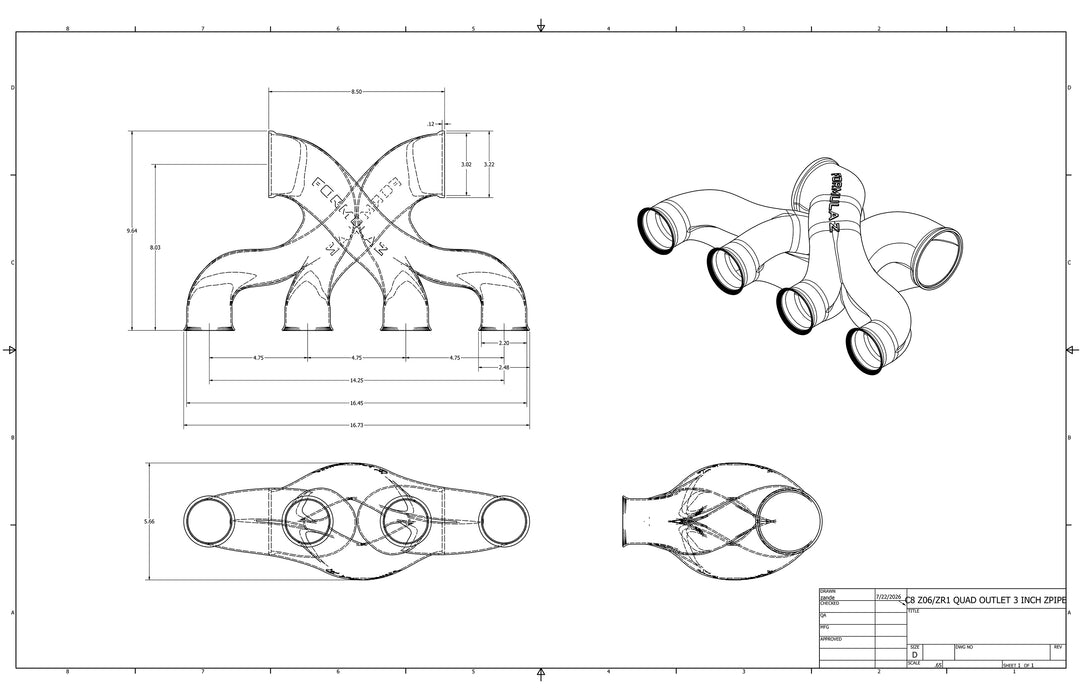

SPECIFICATIONS
- Inlet/Outlet: 3.000" ID (3.22" OD, .12" wall)
- Inlet spacing: 8.50" outside to outside
- Outlet spacing: 4.75" on center between each outlet (14.25" between outer outlet centers, 16.45" across outer flange edges)
- Overall dimensions: 9.64" L x 5.66" H x 16.73" W
- Material: 316L stainless steel
- Manufacturing: DMLS / SLM 3D printed
- Weight: [lb]
- Connection: Welding Required
Questions on fitment for your specific configuration? Email us at support@aceraceparts.com and we will confirm before you order.
For the full breakdown of every model, see our guide: How to Choose the Right Z-Pipe for Your Application.
INSTALLED ON VEHICLE
C8 Z06 Z-Pipe installation examples by WOR Fabrications:
Z-PIPE CROSS-SECTION
FLOW MODEL COMPARISON
X-Pipe vs. H-Pipe vs. Z-Pipe Flow Comparison
