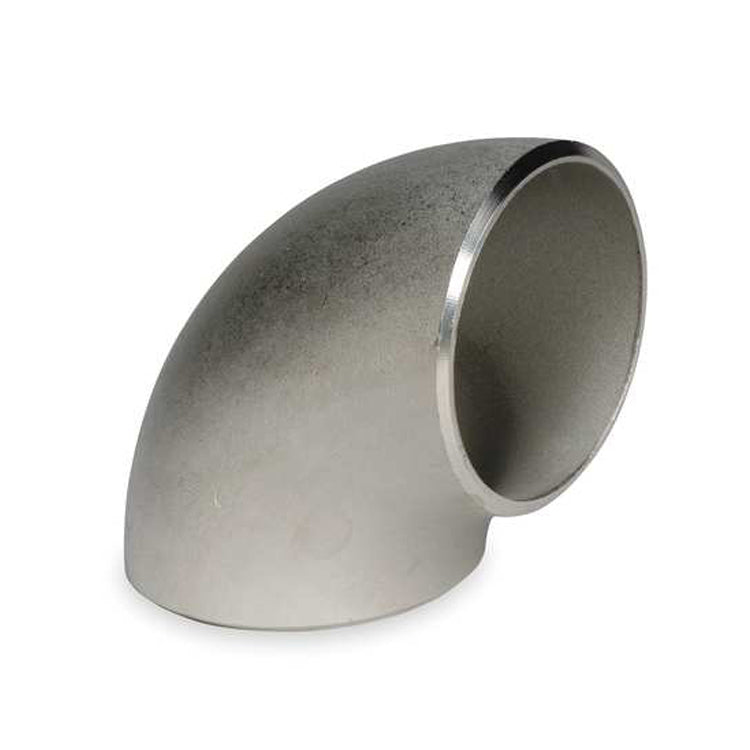

2-1/2" Schedule 10 Short Radius 90° Elbow 304LSKU:
Brand: Ace Race Parts
Our pipe size "weld els" are a high quality, cost effective solution for turbo manifold builders. Save money on your next project without sacrificing quality with Ace Race Parts pipe size products!
|Pipe Size||2-1/2" (2.875")|
|Material Type||304L Stainless|
What is Nominal Pipe Size (NPS)?
If you've worked with pipe much at all, you've probably noticed that the size of the pipe isn't really what size the pipe is. Unlike tubing, which is generally specified by its OD (outside diameter), or silicone hose, which is generally specified by its ID (inside diameter), pipe is specified by the industry designated size, or trade size. The first thing that all fabricators should know is that "Nominal Pipe Size", or NPS, is an industry designation, or "trade size", and it is does not reference the actual measured size of the material. Even the most experienced fabricators are sometimes confused by the industry's terminology and method of sizing.

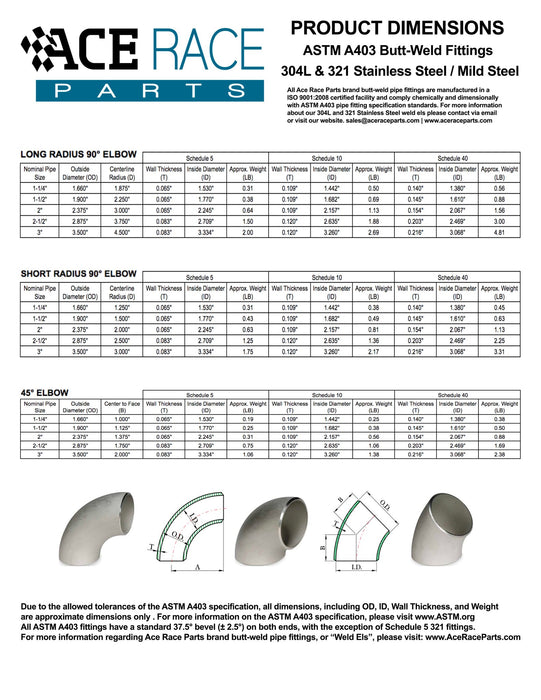

Below is a chart of standard pipe sizes ranging from 1/8" to 4".
Note: This pipe size material is only compatible with other pipe size material (pipe size weld els, tees, reducers, straight lengths, etc). Pipe size material is not compatible with stainless steel tube, tube fittings, or mandrel bends that are sized by the outside diameter.
Please be sure to verify that your selected pipe size meets the requirements of your project. It is the customer's responsibility to verify the compatibility of the items in their shopping cart. Ace Race Parts is not responsible for orders with mismatched, or incompatible, products.
