Our Aluminum weld bungs are precision CNC machined, in an ISO 9001 certified facility, from 6061-T6 Aluminum billet and are available in both Male and Female configurations and in sizes ranging from -4AN to -20AN, as well as NPT sizes.

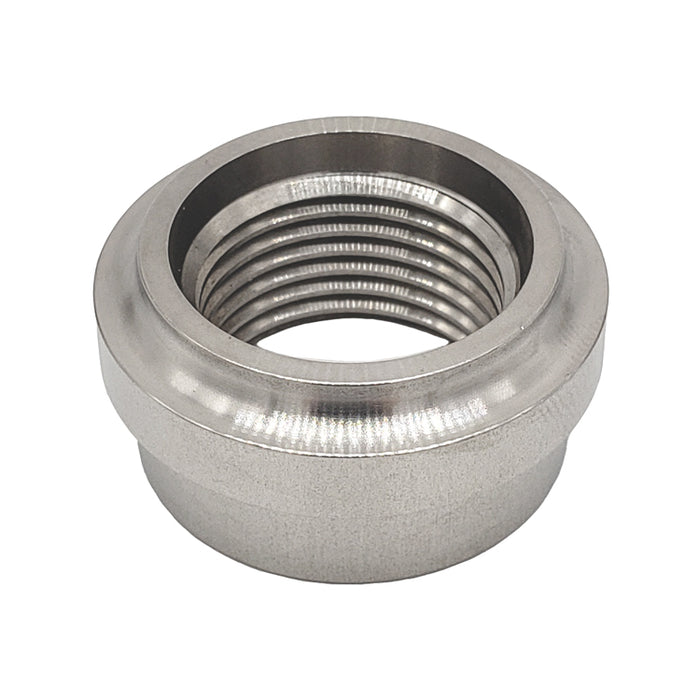

-8AN Weld Bungs feature a standard 37° flared seating surface and 3/4"-16 SAE Female Thread. Our Aluminum Weld Bungs are a high quality, affordable choice for aluminum radiators, oil pans, tanks, and other custom fabrication projects.
DETAILED SPECIFICATIONS:
Material Size | -8AN |
SAE Thread | 3/4"-16 |
Thread Type | Female |
Shoulder OD | 1.210" |
Body OD | 1.055" |
Height |
0.555" |
Material Type | 6061-T6 Aluminum |
