Turbo Outlet Flange - Garrett GTX29, GT30/GTX30, GT35/GTX35, GT40/GTX40 - 304 Stainless - Ace Race Parts

Turbo Outlet Flange - Garrett GTX29, GT30/GTX30, GT35/GTX35, GT40/GTX40 - 304 Stainless

Name: Turbo Outlet Flange - Garrett GTX29, GT30/GTX30, GT35/GTX35, GT40/GTX40 - 304 Stainless
Brand: Ace Race Parts
SKU: 27169
Price: 22.95 USD
Availability: InStock
Rating: 5.0 (4 reviews)

by Ace Race Parts

SKU 27169

Availability:

Only 17 left!

$ 22.95 - $ 22.95

$ 22.95

$ 22.95 - $ 22.95

$ 22.95

Product Dimension Info

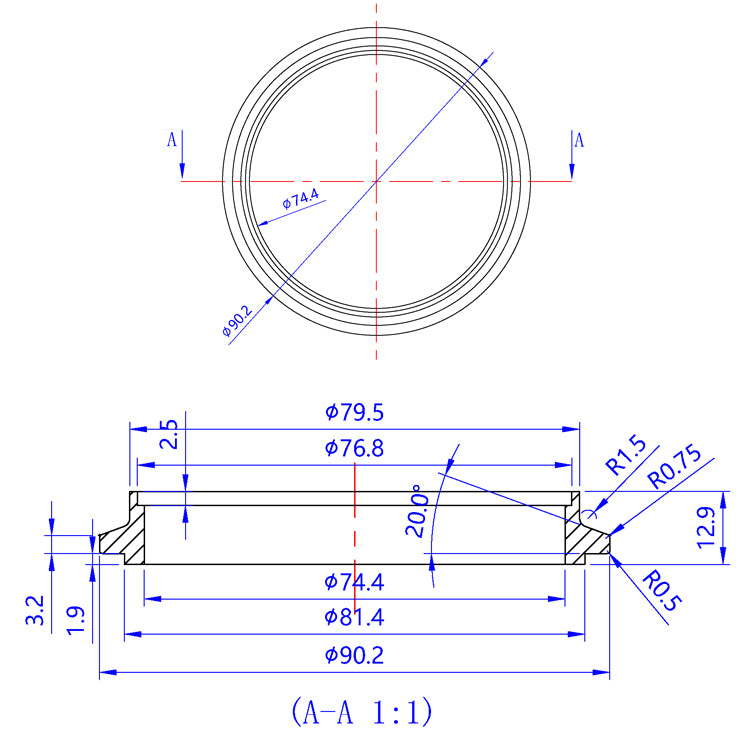

Detailed product dimensions are listed further down this page. All dimensions are nominal and subject to material and manufacturing tolerances. If you need help with a dimension, please email us at your convenience.

TRUSTED BY THE INDUSTRY'S TOP FABRICATORS AND MANUFACTURERS!

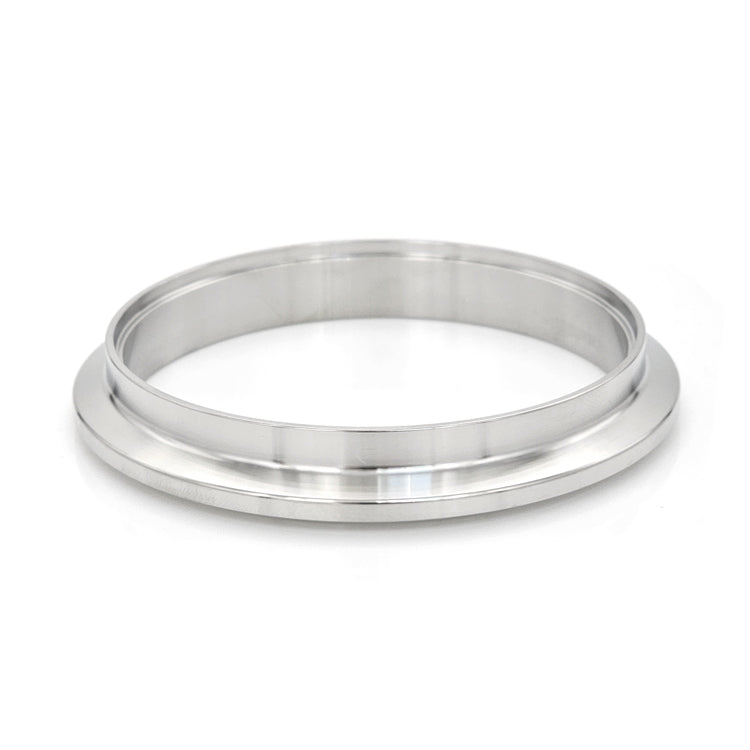

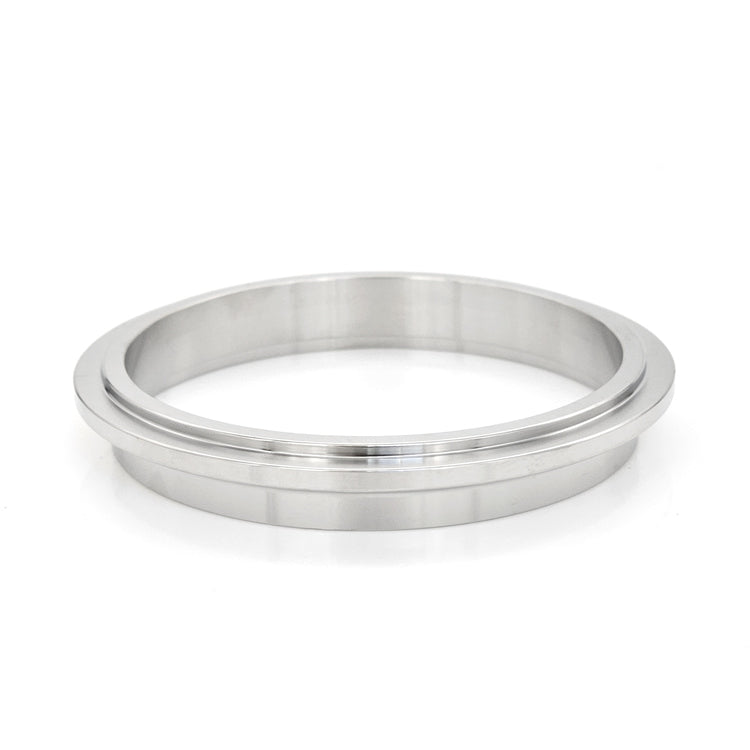

The Ace Race Parts brand of Turbo Outlet Flanges is precision CNC machined from solid 304 Stainless round bar and will withstand the punishment of high temperature turbo applications. Our version of this particular Garrett Turbo Outlet Flange features a 3.000" ID Counterbore and is compatible with a variety of Garrett brand turbochargers (please see the "Compatibility" list provided below). For dimensional details, please view the "Dimensions" table provided below.

FEATURES

Precision CNC Machined
304 Stainless Steel

COMPATIBILITY

TURBO OUTLET:

G25-550, G25-660
G30-660, G30-770, G30-900
G35-900, G35-1050
G25/G30/G35 Standard & Reverse Rotation Turbine Kits
GTX2967R, GTX2971R (V-Band)
GTX3071R Gen.2, GTX3076R Gen.2, GTX3576R Gen.2, GTX3582R Gen.2, GTX3584RS
GT30/GT35 Turbine Kits (V-Band)
Turbonetics (T6 Turbine only)
