Turbo Inlet Flange - TiAL V-Band Housing for Garrett GT28/GTX28, GT30/GTX30, GT35/GTX35 - 304 Stainless
Turbo Inlet Flange - TiAL V-Band Housing for Garrett GT28/GTX28, GT30/GTX30, GT35/GTX35 - 304 Stainless
Turbo Inlet Flange - TiAL V-Band Housing for Garrett GT28/GTX28, GT30/GTX30, GT35/GTX35 - 304 Stainless

Turbo Inlet Flange - TiAL V-Band Housing for Garrett GT28/GTX28, GT30/GTX30, GT35/GTX35 - 304 Stainless

by Ace Race Parts
SKU 27162
Availability:
Out of stock
Sold out
$ 23.95 - $ 23.95
$ 23.95
$ 23.95 - $ 23.95
$ 23.95

Dimensions at a glance

Bore ID1.984" (50.4mm)
Flange OD3.000" (76.2mm)
Counterbore2.173" (55.2mm)
Alloy304 Stainless

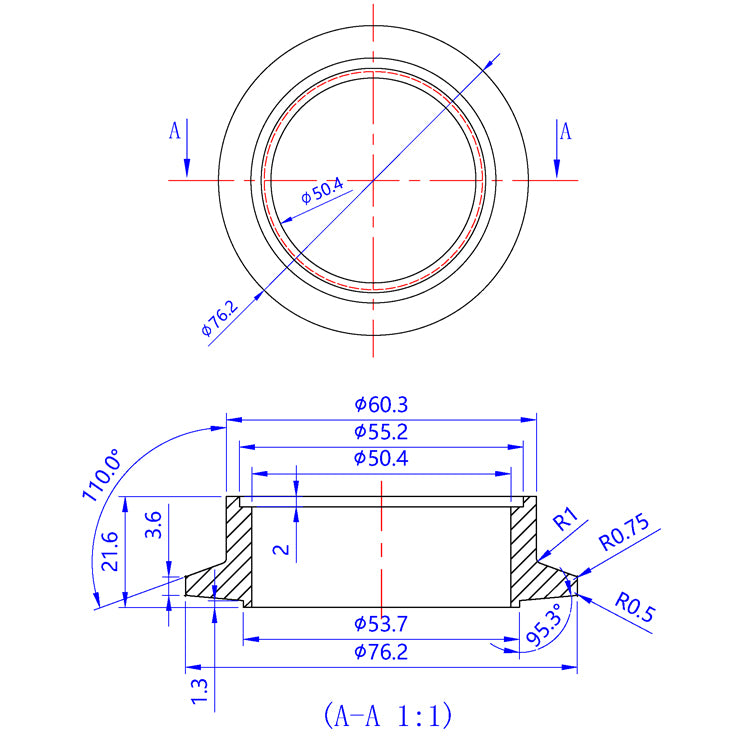

View drawing

Nominal dimensions; material and manufacturing tolerances apply. Need another dimension? Email us and we'll help.

TRUSTED BY THE INDUSTRY'S TOP FABRICATORS AND MANUFACTURERS!

The Ace Race Parts brand of Turbo V-Band Inlet Flanges is precision CNC machined from solid 304 Stainless bar stock and offers durability in the most extreme conditions. Our version of this particular TiAL V-Band Turbo Housing Inlet Flange is compatible with a variety of Garrett turbochargers (please see the "Compatibility" list provided below). For dimensional details, please view the "Dimensions" table provided below.

FEATURES

  • Precision CNC Machined
  • 304 Stainless Steel
  • For use with TiAL V-Band Turbine Housings

COMPATIBILITY

  • TURBO INLET: TiAL Turbine Inlet for Garrett GT28, GTX28, GT30, GTX30, GT35, and GTX35
