Turbo Inlet Flange - (PTE) Precision Turbo Medium Frame Turbo Housings - 304 Stainless - Ace Race Parts
Turbo Inlet Flange - (PTE) Precision Turbo Medium Frame Turbo Housings - 304 Stainless - Ace Race Parts
Turbo Inlet Flange - (PTE) Precision Turbo Medium Frame Turbo Housings - 304 Stainless
Turbo Inlet Flange - (PTE) Precision Turbo Medium Frame Turbo Housings - 304 Stainless - Ace Race Parts
Turbo Inlet Flange - (PTE) Precision Turbo Medium Frame Turbo Housings - 304 Stainless - Ace Race Parts

Turbo Inlet Flange - (PTE) Precision Turbo Medium Frame Turbo Housings - 304 Stainless

by Ace Race Parts
SKU 27163
Availability:
Only 14 left!
$ 23.99 - $ 23.99
$ 23.99
$ 23.99 - $ 23.99
$ 23.99

Dimensions at a glance

Bore ID1.984" (50.4mm)
Flange OD3.000" (76.2mm)
Alloy304 Stainless

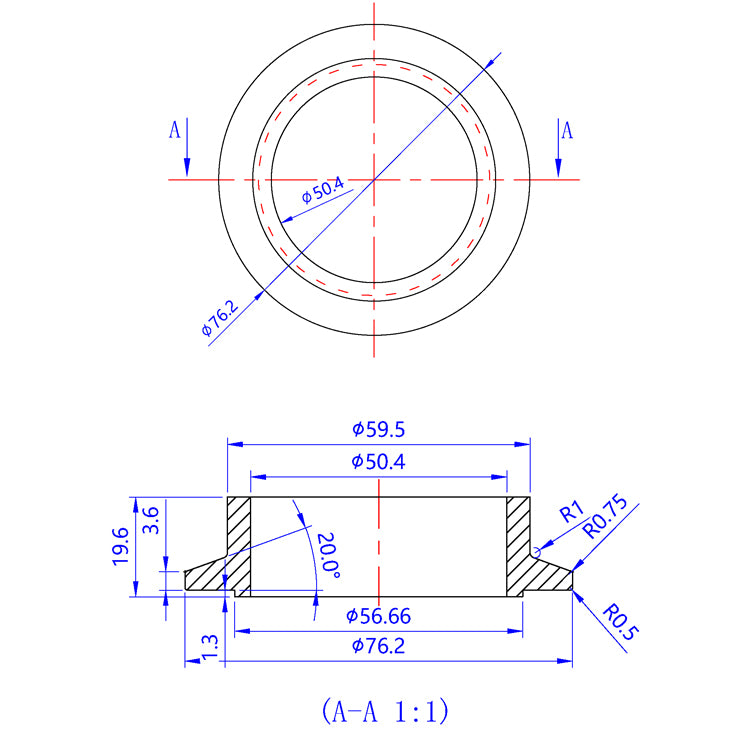

View drawing

Nominal dimensions; material and manufacturing tolerances apply. Need another dimension? Email us and we'll help.

TRUSTED BY THE INDUSTRY'S TOP FABRICATORS AND MANUFACTURERS!

The Ace Race Parts brand of Turbo V-Band Inlet Flanges is precision CNC machined from solid 304 Stainless bar stock and offers durability in the most extreme conditions. Our version of this particular Precision Turbo (PTE) Inlet Flange is compatible with a variety of Precision Turbo brand medium frame turbo housings (please see the "Compatibility" list provided below). For dimensional details, please view the "Dimensions" table provided below.

FEATURES

  • Precision CNC Machined
  • 304 Stainless Steel
  • For use with PTE brand Turbochargers

COMPATIBILITY

  • Turbo Inlet: Precision Turbo (PTE) CAE 5 series and 6 series
