Turbo Inlet Flange - Garrett Super Core G40-900, G40-1150, G42-1200, & G42-1450 (V-Band Inlet) - 304 Stainless - Ace Race Parts
Turbo Inlet Flange - Garrett Super Core G40-900, G40-1150, G42-1200, & G42-1450 (V-Band Inlet) - 304 Stainless - Ace Race Parts
Turbo Inlet Flange - Garrett Super Core G40-900, G40-1150, G42-1200, & G42-1450 (V-Band Inlet) - 304 Stainless
Turbo Inlet Flange - Garrett Super Core G40-900, G40-1150, G42-1200, & G42-1450 (V-Band Inlet) - 304 Stainless - Ace Race Parts
Turbo Inlet Flange - Garrett Super Core G40-900, G40-1150, G42-1200, & G42-1450 (V-Band Inlet) - 304 Stainless - Ace Race Parts

Turbo Inlet Flange - Garrett Super Core G40-900, G40-1150, G42-1200, & G42-1450 (V-Band Inlet) - 304 Stainless

by Ace Race Parts
SKU 27166
Availability:
250 in stock, ready to be shipped
$ 23.99 - $ 23.99
$ 23.99
$ 23.99 - $ 23.99
$ 23.99

Dimensions at a glance

Bore ID2.638" (67mm)
Flange OD3.627" (92.13mm)
Counterbore2.776" (70.5mm)
Alloy304 Stainless

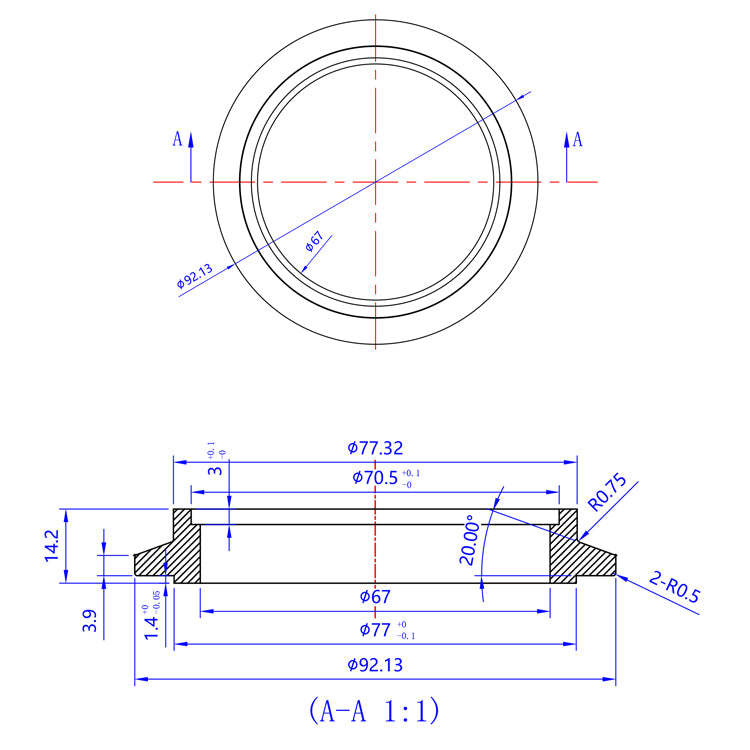

View drawing

Nominal dimensions; material and manufacturing tolerances apply. Need another dimension? Email us and we'll help.

TRUSTED BY THE INDUSTRY'S TOP FABRICATORS AND MANUFACTURERS!

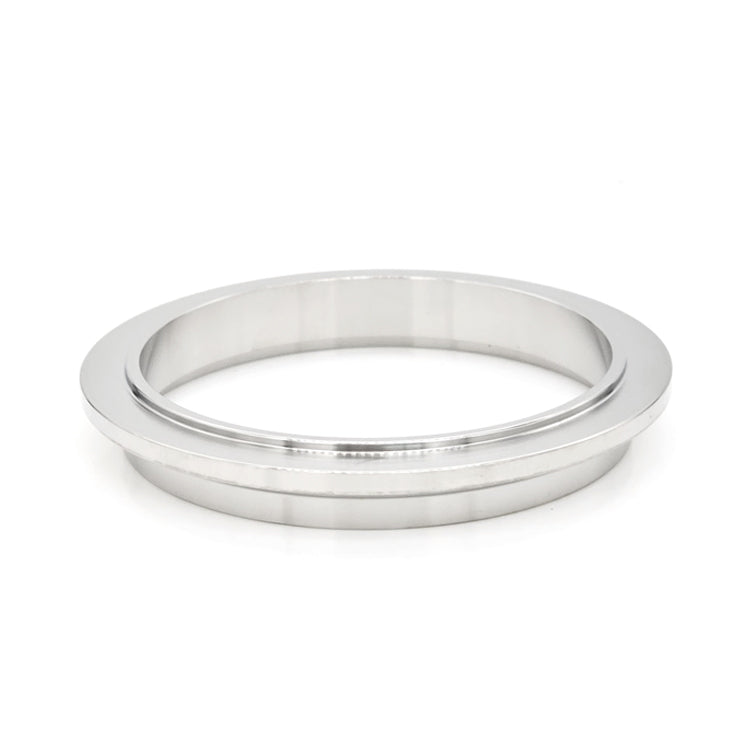

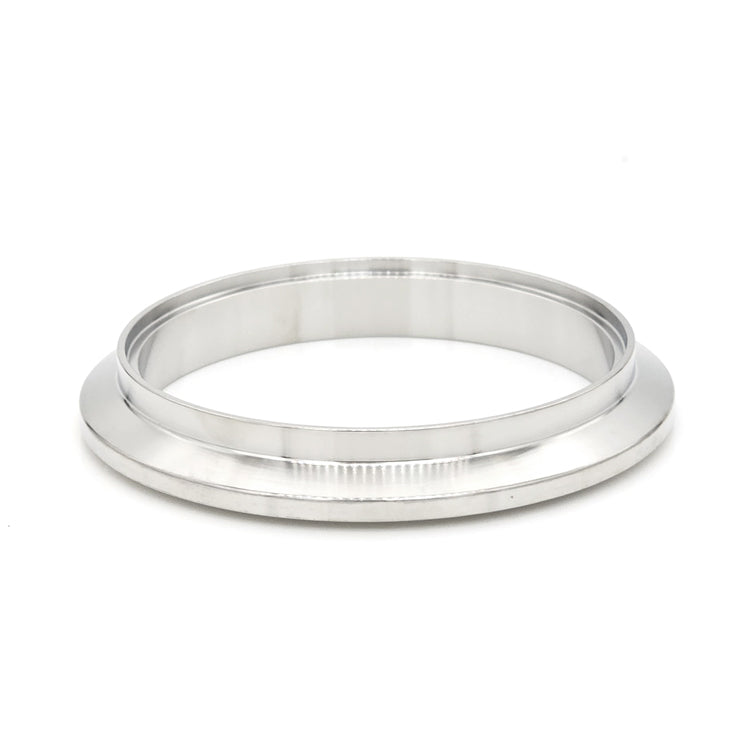

The Ace Race Parts brand of Turbo V-Band Inlet Flanges is precision CNC machined from solid 304 Stainless bar stock and offers durability in the most extreme conditions. Our version of this particular Turbo Inlet Flange is compatible with a variety of Garret Super Core turbochargers with a V-Band style Inlet (please see the "Compatibility" list provided below). For dimensional details, please view the "Dimensions" table provided below.

FEATURES

  • Precision CNC Machined
  • 304 Stainless Steel
  • For use with some Garrett Super Core Turbo Housings

COMPATIBILITY

  • TURBO INLET: Garrett Super Core G40-900, G40-1150, G42-1200, G42-1450 with V-Band style Inlet
