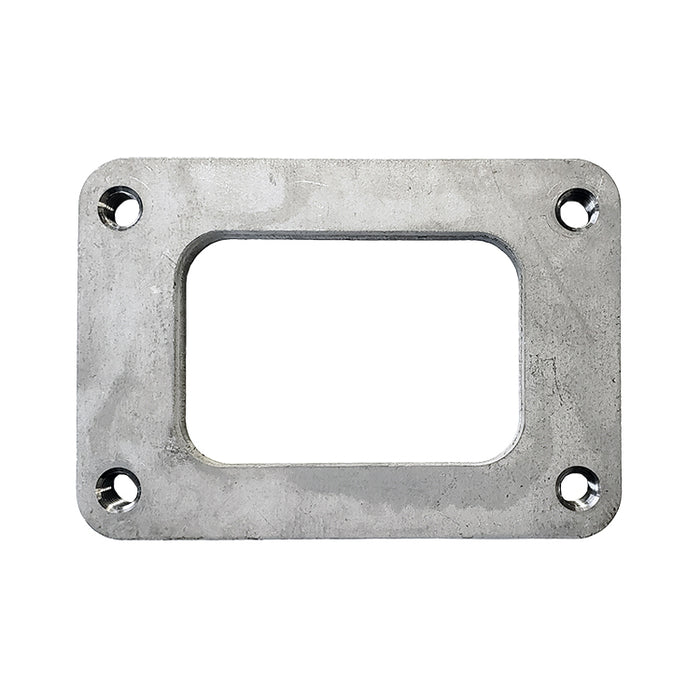

T6 Turbo Undivided Inlet Flange 304 Stainless (M10 x 1.5 Tapped Holes)

T6 Turbo Undivided Inlet Flange 304 Stainless (M10 x 1.5 Tapped Holes)

SKU:
Brand: Ace Race Parts
$ 31.00

/ each


Ace Race Parts Turbo Inlet Flanges and Discharge Flanges are precision machined in an ISO 9001 certified facility from 1/2" thick 304 Stainless Steel plate to help minimize warping during the welding process.

This T6 Turbo Undivided Inlet Flange features M10 x 1.5 threaded holes and a smooth, flat finish on all sides of the flange. The bolt pattern of this flange is 4.5" x 2.75" and works with the following applications:

  • Generic T6 Turbine Inlets
    Note: may not be compatible with some BorgWarner applications
  • all Garrett GT47 / GTX47
  • all GT50 / GTX50
  • all GTX55
  • all GT60

Please be sure to verify the bolt pattern of your existing application before purchasing this T6 Undivided Turbine Inlet Flange.

DETAILED T6 TURBO INLET FLANGE SPECIFICATIONS:
Flange Type T06 Inlet (Undivided)
Thickness 1/2" (0.500")
Threaded Holes Yes, M10 x 1.5
Bolt Pattern 4.50" x 2.75"
Material Finish Mill Finish
Material Type 304L Stainless
Compatible Gasket
27136
