4.000" V-Band Assembly "Male/Female" 304 Stainless - Standard Clamp

SKU 22012
Availability:
154 in stock, ready to be shipped
Original price $ 55.65 - Original price $ 55.65
Original price
$ 55.65
$ 55.65 - $ 55.65
Current price $ 55.65

Product Dimension Info

Detailed product dimensions can be found on the main product page. If you need further assistance with product dimensions please email us at your convenience.

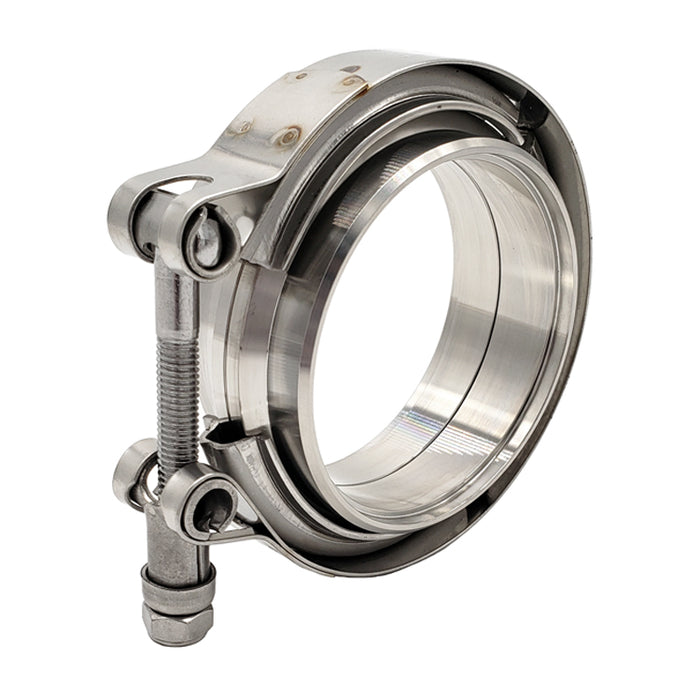

304 STAINLESS V-BAND ASSEMBLY — LEAK-FREE INTERLOCKING FLANGE DESIGN

The Ace Race Parts brand of Stainless Steel V-Band Assemblies features a 304 Stainless V-Band Clamp and a set of "Male/Female" interlocking V-Band Flanges, which are precision CNC machined from solid 304 Stainless round bar. Our V-Band Clamps, Flanges, and full Assemblies are suitable for fabricating exhaust systems, downpipes, merge collectors, and other custom or replacement components.

FEATURES

  • Precision CNC Machined 304 Stainless
  • Male/Female Interlocking Flange Design
  • Creates an Air-Tight Seal — No Gasket Required
  • Flanges are Counterbored to Matching Tube Size
  • Suitable for Downpipes, Exhausts, Merge Collectors, and more!

Our V-Band Flanges utilize an interlocking flange design that ensures a leak-free seal without the need for a gasket and features a counterbore on the weld side of the flange that allows the matching tube size material to slip into the flange. The counterbore is machined to a width of 0.065" and aligns with the inside diameter (ID) of matching tube size material — preventing any unnecessary reductions or restrictions in the flow of exhaust gases.

If you need assistance in finding a matching V-Band Clamp or Flange for an existing application please review our "How To Measure A V-Band Flange" information here: How to Measure a V-Band Flange.

This V-Band Clamp Assembly includes the following items:

  • (1) V-Band Clamp, Standard T-Bolt Style, 304 Stainless (SKU: 22028)
  • (1) "Male" Interlocking V-Band Flange, 304 Stainless (SKU: 22044
  • (1) "Female" Interlocking V-Band Flange, 304 Stainless (SKU: 22060)
