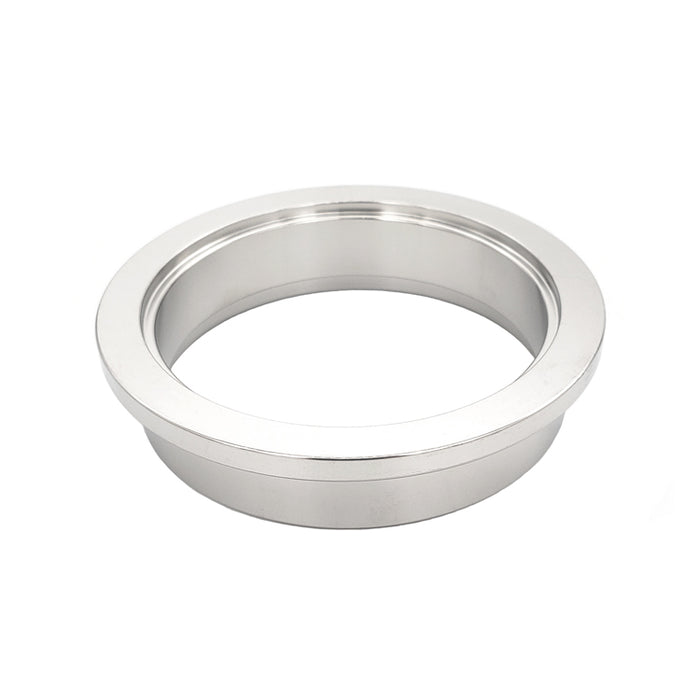

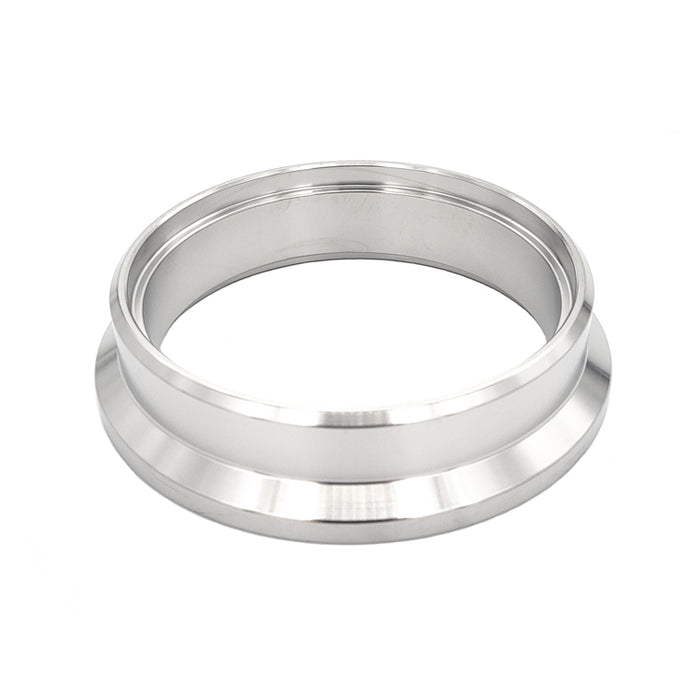

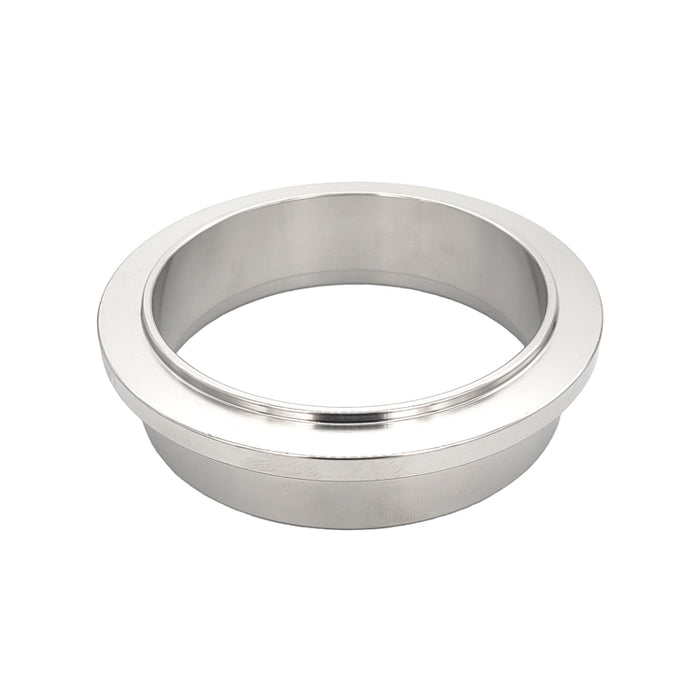

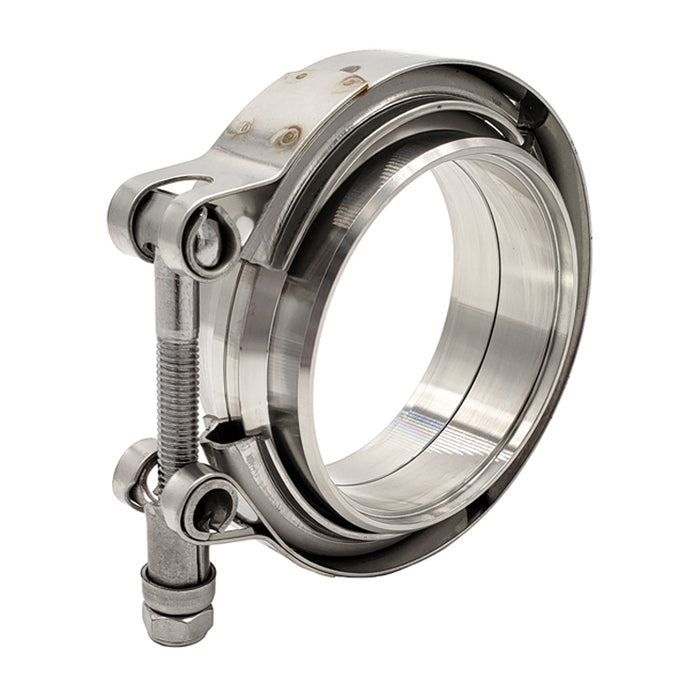

Our V-Band Assemblies utilize a 304 stainless clamp and flanges. Our "Male/Female" flanges have an interlocking seating surface to ensure proper alignment during installation. The butt-weld side of the flanges offer a small groove that allows the flange and tube to be aligned better prior to welding. Each assembly includes one (1) t-bolt style clamp and two (2) interlocking flanges.
|Individual Flange Thickness (Single Flange)||0.750"|
|Clamp Type||V-Band, Standard T-Bolt|
|Material Type||304 Stainless|
Metal Lock Nut (QTY: 1)
Non-Locking Nut (QTY: 1)
Fastener Size (Material)
|8mm-1.5 (304 Stainless)|
Please note: Our V-Band clamps are supplied with a nylon lock nut and a standard non-locking hex nut. The nylon lock nut is a locking-style nut and is not intended to be used during mock-up. Attempting to thread, remove, and re-threaded the lock nut may cause damage to the "T-Bolt" section of the clamp. In some cases, excessive force can damage and/or break the "T-Bolt" section of the clamp. If you intend to use our clamps during the mock-up process please use the supplied standard finished hex nut (non-locking).
Ace Race Parts is not responsible for damage caused to our clamps due to the use of the locking-style nut during mock-up or removal. The thread pitch of our hex nuts, lock nuts and the threaded portion of the "T-Bolt" section of the clamp is 1/4"-28 (fine thread).
