3.500" OD x 14ga (0.083") Round Tube - Polished OD/ID - 304 Stainless - 4 Foot LengthSKU:
Brand: Ace Race Parts

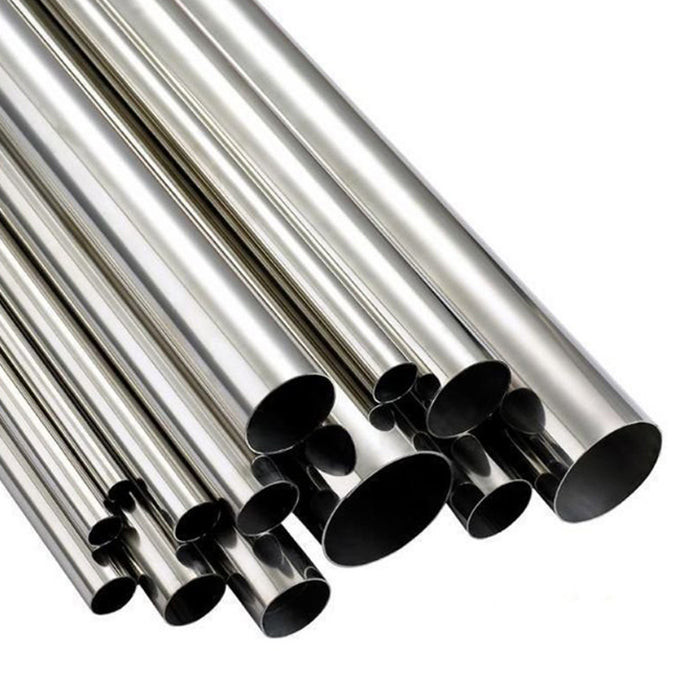

Ace Race Parts 304L 3.5" stainless-steel tubing for exhaust, downpipe, turbo manifold, and header fabrication is manufactured in an ISO certified facility and is the highest quality tube at the lowest price available in the automotive market today. Our 3.5" stainless-steel tubing is manufactured to the stringent ASTM A270 Sanitary Specification and offers a much higher quality finish and welding experience than other specifications of tubing due to an extensive testing and inspection process prior to shipment.
Ace Race Parts 304L Stainless Steel tubing is available in outside diameter ranges from 1.500" to 4.000" and is available in lengths ranging from 12" to 48". With a high quality polished finish on both the outside and inside of the tube, our sanitary grade tubing offers OD tolerances as tight as ±0.008" to ensure the perfect fit with our Stainless Steel V-Band Flanges and Clamps, Stainless Steel Mandrel Bends, Stainless Steel Flanges, and Stainless Steel Flex Couplings and Flex Bellows.
This specific item's wall thickness is measuring slightly above the allowable tolerances for 16ga material. Please review the table below, along with the specification notes, wall thickness measurements, and weight per foot. The "measured" wall thickness listed below is the only wall thickness available at this time for SKUs 20053 to 20056.
|Wall Thickness (Specified)||16ga (0.065")|
|Wall Thickness (Measured)||0.073" - 0.080"|
|Pounds Per Foot (Specified)||2.407 Lbs/Ft|
|Pounds Per Foot (Measured)||2.697 - 2.949 Lbs/Ft|
|Inside Diameter||3.370" (approximately)|
|Finish||Sanitary Polished OD & ID|
About ASTM A270 Material
Wall Thickness: The wall thickness specifications, per the ASTM A270 (12.2) specification, states that the wall thickness of 16 gauge tube shall not vary more than 12.5%± from the specified wall thickness. For example, 16ga wall thickness is specified as 0.065"; however, the wall thickness can actually vary between 0.0569" and 0.0731" and the material is still considered to be within the tolerances of the specification.
Weight per Foot: While the wall thickness can vary by up to 12.5% on ASTM A270 sanitary tube you might be left wondering what will happen to the weight of the material per foot.
SKU Wall Thickness
Minimum Weight(Lbs/Ft) Maximum Weight(Lbs/Ft)
16ga (0.065") 2.407 2.106 2.708 2.697 to 2.949
- Finish: Our 304L stainless tube is manufactured to the stringent ASTM A270 specifications. ASTM A270 spec tubing is mechanically polished on both the OD and ID of the tube with Ra (roughness average) values of 30µ-in Ra (0.8µm) and 20 µ-in Ra (0.5µm) respectively, per ASME/ANSI B46.1.
What is Tube and How is it Different from Pipe?
Tube size material is measured by the actual outside diameter (OD) and wall thickness. Whereas, Nominal Pipe Size (NPS) is an industry designation, or "trade size", and it is does not reference the actual measured size of the material. Even the most experienced fabricators are sometimes confused by the industry's terminology and method of sizing. Tube size material is not compatible with pipe size material. Many times the words "pipe" and "tube" are use to describe straight lengths of material (eg: exhaust "piping"); however, the industry standard term for this material is "tube".
Note: Please be sure to verify that this tube size material meets the requirements of your project. It is the customer's responsibility to verify the compatibility of the items in their shopping cart. Ace Race Parts is not responsible for orders with mismatched or incompatible products.
