2.375" (60mm) 3-Bolt Exhaust Flange 304L Stainless

2.375" (60mm) 3-Bolt Exhaust Flange 304L Stainless

SKU:
Brand: Ace Race Parts
In Stock: 6 Pieces
$ 14.85

/ each

$ 16.50

Our 304L Stainless Steel 3-bolt 60mm exhaust flanges are precision cut and machined out of 1/2" thick plate to minimize warping during the welding process.

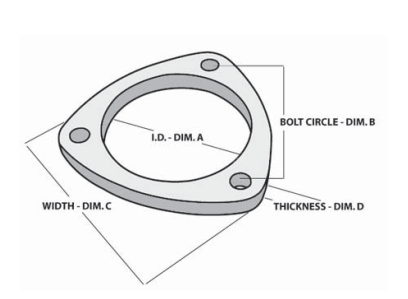

QUICK DIMENSIONAL DATA:

 Dimension "A" (Inside Diameter) 2.375" (60mm)
Dimension "B" (Bolt Circle) 3.425" (87mm)
Dimension "C" (Flange Width)
3.897" (99mm)
Dimension "D" (Flange Thickness) 0.500" (12.7mm)

Are you looking for a high temperature 3-Bolt Exhaust Gasket? This 2.375" ID (60mm) 3-Bolt Flange is compatible with our 3-Bolt High Temperature Steel Reinforced Multilayer Gasket (SKU: 27034)

DETAILED SPECIFICATIONS:

Flange Type
Exhaust; 3-Bolt
Flange Inside Diameter 2.375" (60mm)
Thickness 0.500" (12.7mm)
Hole Style Slotted
Bolt Circle 3.425" (87mm)
Flange Width 3.897" (99mm)
Material Finish Mill Finish
Material Type 304L Stainless
