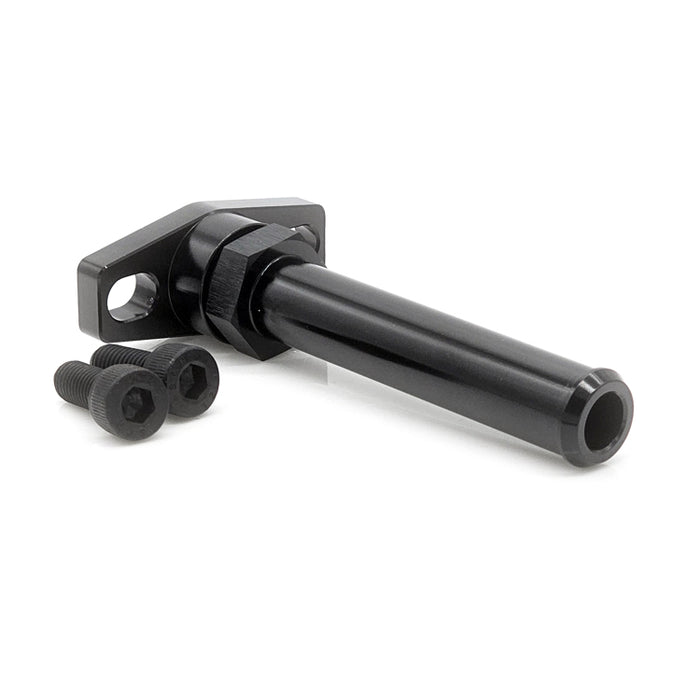

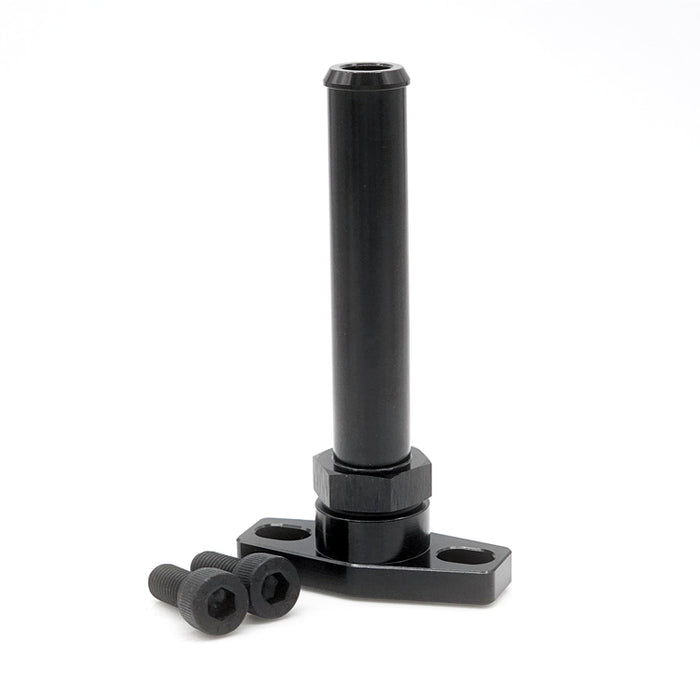

Oil Drain Flange 5/8" Male Barb Extension with O-Ring Style Seating Surface (2.000" Bolt Circle)

SKU 23715
100 in stock, ready to be shipped
Original price $ 29.95 - Original price $ 29.95
Original price
$ 29.95
$ 29.95 - $ 29.95
Current price $ 29.95

Product Dimension Info

Detailed product dimensions can be found on the main product page. If you need further assistance with product dimensions please email us at your convenience.

The Ace Race Parts brand of Oil Drain Flanges are offered in a wide range of configurations. This particular Oil Drain Flange features an integrated 5/8" Male Hose Barb Extension Outlet and an O-Ring Style Seating Surface to ensure a leak-free connection at all times. This particular oil drain flanges features a -8AN Female ORB Flange with a 5/8" Male Barb Extension Fitting, measuring 3.500" Long. Our oil drain flanges are precision CNC machined from solid 6061-T6 Aluminum billet and features a black hard anodized finish that will stand up to the harshest conditions.


  • Removable -8AN Male ORB x 5/8" Barb Extension Outlet (3.500" long)
  • O-Ring Style Seating Surface
  • Round Bolt Holes with a 2.000" Bolt Circle
  • Precision CNC Machined
  • 6061-T6 Aluminum, Black Hard Anodized Finish
  • Two M8 x 1.25 Button Head Cap Screws


  • Garrett: G40, G42, G45, G57, GTX40, GTX42, GTX45, GTX47, GTX50, GTX55, GT32, GT37, GT40, GT42, GT45, GT47, GT50, GT55
  • BorgWarner: S200 SX-E/SXE, S300 SX-E/SX3 (excluding GX series), S400 SX-E, SX, SX3, SX4, S500 SX-E/SX
  • Generic T3 and T4 Turbos
