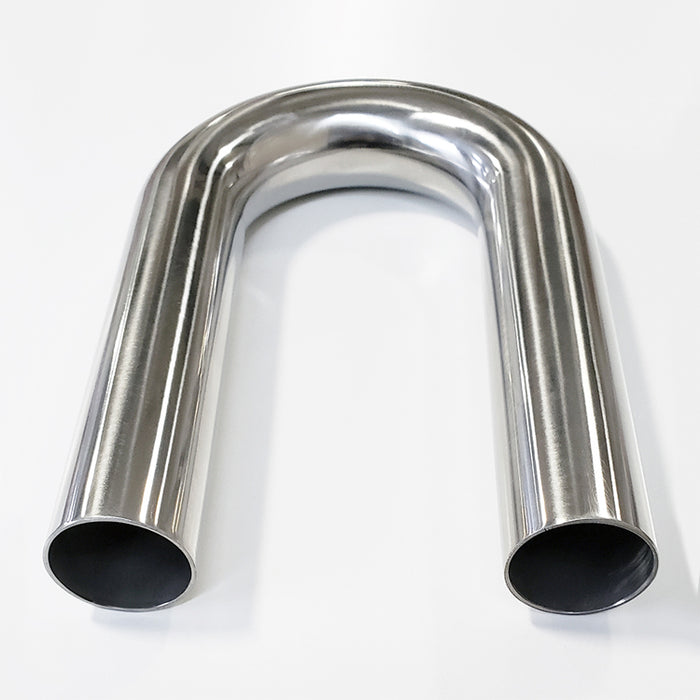

1.500" 16ga 180° Mandrel Bend - (2.250" CLR / 6.000" Legs) - Polished OD - 304 Stainless
SKU:Brand: Ace Race Parts
Ace Race Parts 304 Stainless Steel mandrel bends are a high quality, cost effective solution for header, exhaust, and downpipe builders. Available in 15°, 45°, 60°, 90°, and 180° in outside diameters from 1.500" to 4.000", Ace Race Parts mandrel bends are precision bent using a CNC mandrel bender in an ISO certified facility to ensure that the degree and centerline radius of each bend is consistent and free of defects. After the bending process is completed each mandrel bend is then de-burred and polished to a 600 grit finish to ensure a clean finish on the ends and surface. Our mandrel bends are a perfect match for our stainless steel Tube, stainless steel V-Band Clamps and Flanges, Tube Size Fittings, Exhaust Flanges, and Flex Couplings and Flex Bellows.

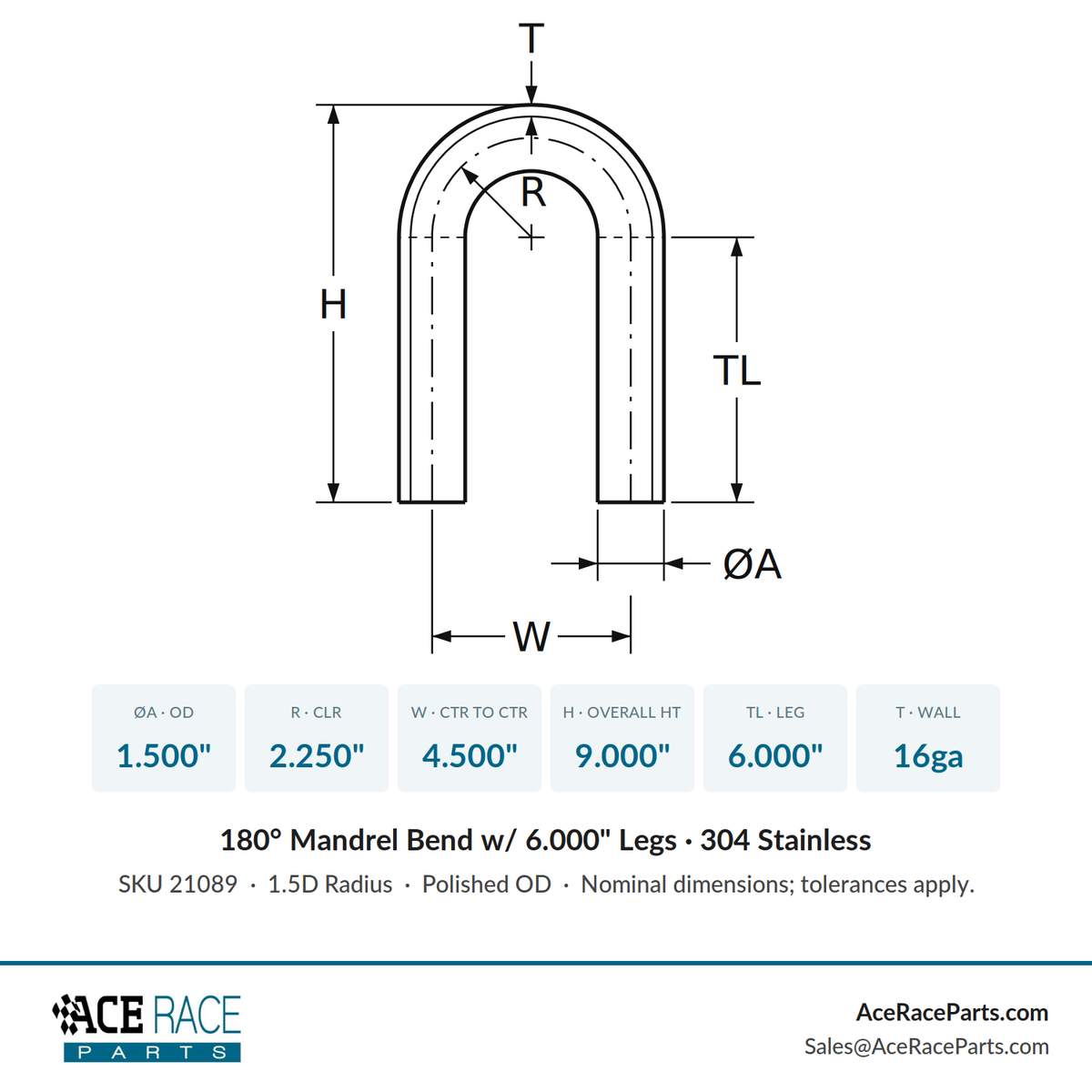

DETAILED SPECIFICATIONS:
| Outside Diameter | 1.500" |
| Wall Thickness | 16ga (0.059") |
| Inside Diameter | 1.375" |
| Centerline Radius | 2.250" |
| Leg Length | 6.000" |
| Connection Type | Tube OD Butt-Weld |
| Finish | Unpolished |
