Light Duty Spring Loaded T-Bolt Clamp 304 Stainless - For 2.000" ID Silicone (Clamping Range: 2.25" - 2.55")

Light Duty Spring Loaded T-Bolt Clamp 304 Stainless - For 3.500" ID Silicone (Clamping Range: 3.78" - 4.08")

SKU:
Brand: Ace Race Parts
$ 10.50

/ each

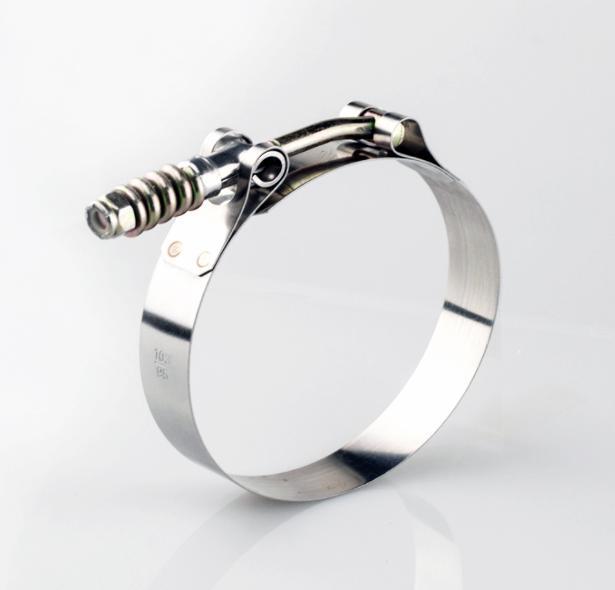

Ace Race Parts' Light-Duty Spring Loaded T-Bolt Clamps are manufactured from 304 stainless steel to be a leak-free and corrosion-resistant option for securing silicone hoses in automotive, diesel, marine, and industrial applications. Our t-bolt spring clamps are manufactured with smooth, rounded edges to ensure that they are safe enough to be used with soft hose materials.

Each 304 Stainless Steel T-Bolt Spring Clamp is provided with a Zinc plated lock nut to ensure that the nut is able to be secured in place without galling. Ace Race Parts' Spring Loaded T-Bolt Clamps are available in nominal sizes from 2.000" to 4.000" and will work in a wide variety of applications and environments.

FEATURES:

  • Clamping Range: 3.78" - 4.08"
  • Matching Silicone Hose: 3.500" ID, 4-Ply
  • Recommended Torque: 50 in.-lbs [5.6N.m]
  • Spring Rate: 1900 lbs/in [12.5MPa], capable of generating a load of 300 lbs

Please choose your T-Bolt Spring Clamp based on your SILICONE HOSE ID SIZE. For example, if your applications requires a 2.000" ID Silicone Hose, this 2.000" light-duty clamp is a suitable clamp for your application. If you are unsure of what size clamp you need, please contact us.

DETAILED SPECIFICATIONS

Matching Silicone Size 3.500" ID
Clamping Range 3.78" - 4.08"
Material Type 304 Stainless
Spring Loaded Yes, Light Duty
