HD Clamp for 4.000" OD Tubing - Anodized Black

SKU 13222
Availability:
32 in stock, ready to be shipped
Original price $ 88.99 - Original price $ 88.99
Original price
$ 88.99
$ 88.99 - $ 88.99
Current price $ 88.99

Product Dimension Info

Detailed product dimensions can be found on the main product page. If you need further assistance with product dimensions please email us at your convenience.

NOTE: Due to dimensional differences this specific 4.000" HD Clamp component is NOT cross-compatible with Vibrant Performance SKU 12538.

The Ace Race Parts brand of HD Clamps feature full 6061 Aluminum billet construction and are the perfect choice for high pressure air applications, like turbo intake charge piping. Our HD Clamps come with a black anodized finish that will withstand the harshest conditions. Pair our HD Clamps with our HD Clamp Flange sets, HD Clamp Union Sleeves, and FKM O-Rings to create a leak-free seal with a burst pressure rating of 800 psi.

PRODUCT HIGHLIGHTS:

  • Burst Pressure Rating: 800 psi
  • Temperature Rating: 400°F / 204°C
  • Axial Movement, Angular Deflection: Up to 12°
  • Full 6061 Aluminum Billet Construction
  • Includes Quick Release Locking Pin

WHAT'S IN THE BOX:

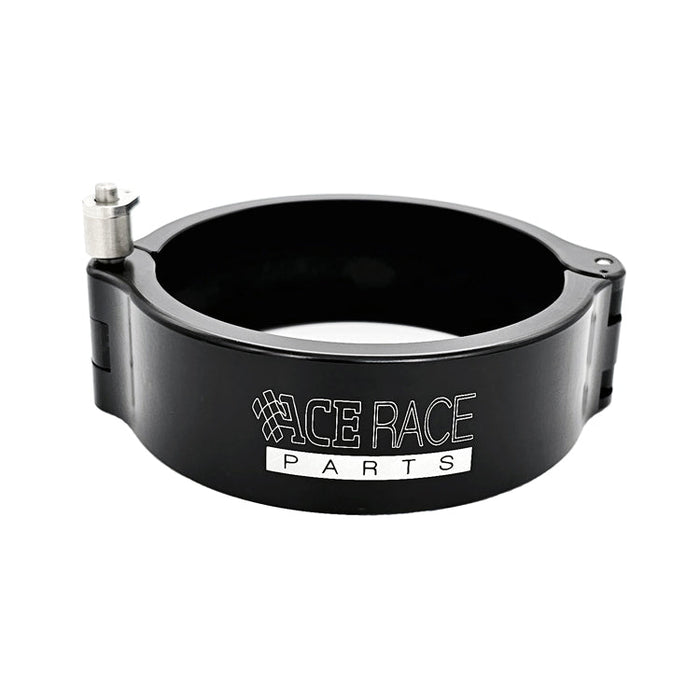

  • One (1) 6061 Aluminum Clamp, Black Anodized

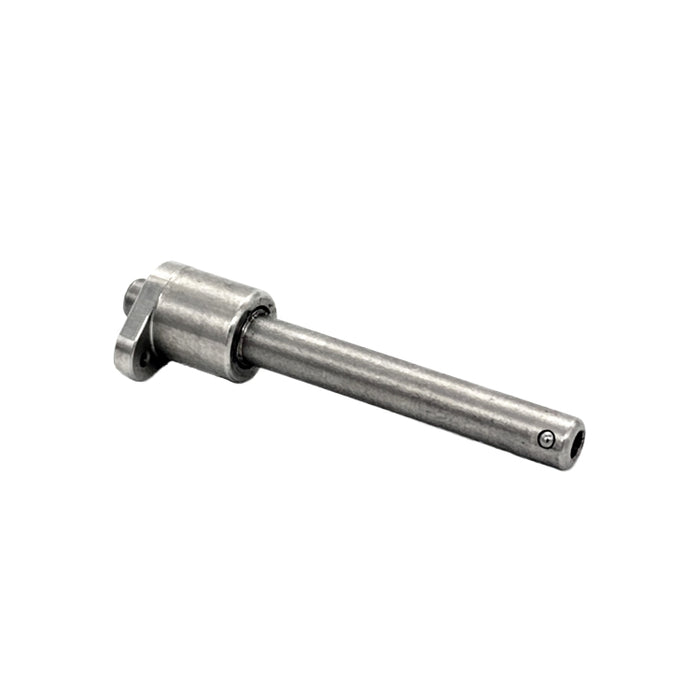

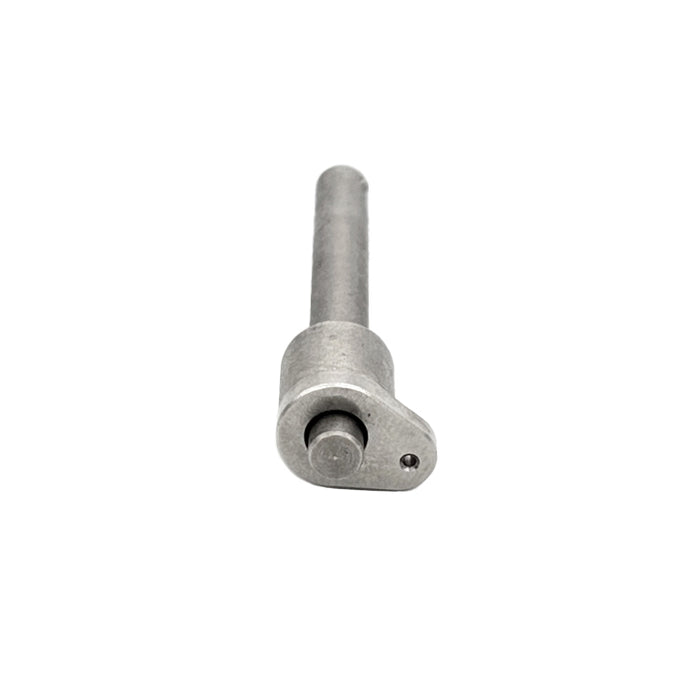

  • One (1) Quick Release style Clamp Locking Pin
