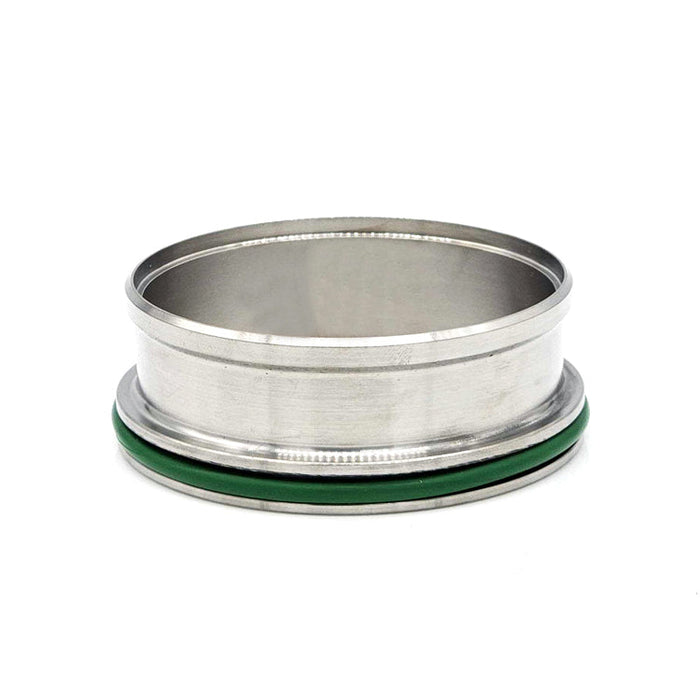

HD Clamp Flange for 4.000" OD Tubing, CP2 Titanium, FKM O-Ring

SKU 13236-2
Only 10 left!
Original price $ 119.99 - Original price $ 119.99
Original price
$ 119.99
$ 119.99 - $ 119.99
Current price $ 119.99

Product Dimension Info

Detailed product dimensions can be found on the main product page. If you need further assistance with product dimensions please email us at your convenience.

NOTE: Due to dimensional differences this specific 4.000" HD Clamp component is NOT cross-compatible with Vibrant Performance SKUs 12548, 12558, 12588.

The Ace Race Parts brand of HD Clamp Flanges, or Weld Ferrules, are precision CNC machined from CP2 Titanium and are provided with a FKM High Temperature O-Ring. Our Titanium HD Flanges are sold individually.


  • Burst Pressure Rating: 800 psi
  • Temperature Rating: 400°F / 204°C
  • Axial Movement, Angular Deflection: Up to 12°
  • Full CP2 Titanium Billet Construction


  • One (1) CP2 Titanium Weld Flange
  • One (1) FKM High Temperature O-Ring (Green Fluororubber)

The Ace Race Parts brand of HD Clamps are 100% compatible and interchangeable with Vibrant Performance brand of HD Clamps. If you're looking for an affordable HD Clamp component look no further than the Ace Race Parts brand of HD Ultra Clamps, HD Ultra Clamp Assemblies, HD Ultra Clamp Weld Flanges (Aluminum and Stainless), HD Ultra Clamp Union Sleeves, and HD Ultra Clamp Quick Release Pins
