2.250" 16ga 180° Mandrel Bend 6061 Aluminum - (3.375" CLR / 6.000" Legs) | Ace Race Parts

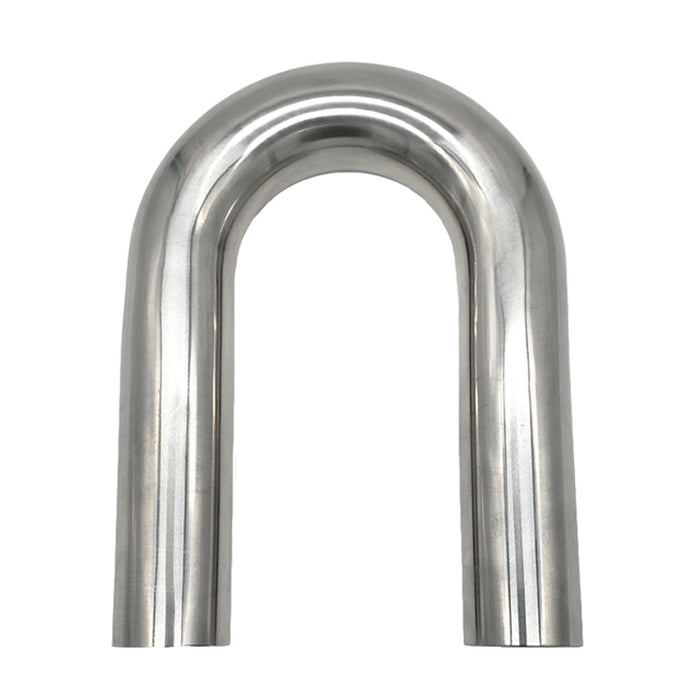

2.250" OD 16ga 180° Mandrel Bend - Polished OD - 6061 Aluminum - (3.375" CLR / 6.000" Legs)

Brand: Ace Race Parts
In Stock: 23 Pieces
$ 31.50

/ each

Ace Race Parts Aluminum mandrel bends are manufactured using 6061 Aluminum tubing and are precision bent using a CNC mandrel bender in an ISO certified facility to ensure a high quality bend across a wide range of shapes and sizes. Our Aluminum mandrel bends are available in 30°, 45°, 60°, 90°, and 180° bend options with outside diameters ranging from 1.500" to 4.000". Our mandrel bends are de-burred, cleaned, and highly polished to ensure a clean finish on the ends and the surface of the bend.

Our mandrel bends are a perfect match for our Aluminum Tube, Aluminum V-Band Clamps and Flanges, 4-Ply Silicone Couplings, and Stainless Steel T-Bolt Clamps

Outside Diameter 2.250"
Wall Thickness 16ga (0.065")
Inside Diameter 2.120"
Centerline Radius 3.375"
Leg Length ("C" Dimension) 6.000"
Connection Type Tube OD Butt-Weld
Finish Polished and Buffed
Material Type 6061 Aluminum


Sold Out
