E85 COMPATIBLE STAINLESS STEEL BRAIDED FLEX HOSE

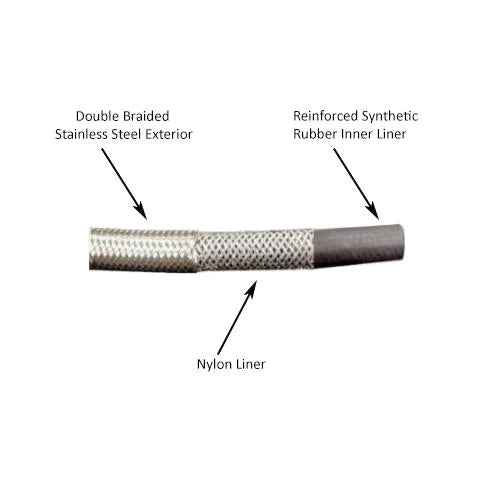

The Ace Race Parts brand of Stainless Braided Flex Hose features a 300 series Stainless Steel double braided exterior (for added corrosion and abrasion resistance), a braided nylon inner liner, and a reinforced synthetic rubber hose. Our E85 compatible stainless braided flex hose is available in AN sizes ranging from -4AN to -20AN and is safe for use in a wide variety of applications, including methanol, oil, water, lubricants, fuel systems (E85/E10 compatible), coolant, and vacuum service.
- 300 Series Stainless Steel Double Braided Exterior
- Nylon Covered Reinforced Synthetic Rubber Hose
- Operating Temperature Range: -40°F to 302°F
- Operating Pressure: 1,000 PSI / Burst Pressure: 6,000 PSI
- Suitable for Oil, Fuel, Coolant, and Vacuum Applications
Our Stainless Steel Flex Hose is perfectly suited for our brand of Swivel Style Aluminum Female AN Hose Ends (180°, 150°, 120°, 90°, 60°, 45°, 30°, Straight).
For more dimensional details and product suitability please see the "Dimensions" tab.
