-16AN Stainless Steel Braided Flex Hose with Reinforced Rubber Liner - 20 Foot Length

SKU 90224
Availability:
Only 14 left!
Original price $ 215.50 - Original price $ 215.50
Original price
$ 215.50
$ 215.50 - $ 215.50
Current price $ 215.50

Product Dimension Info

Detailed product dimensions can be found on the main product page. If you need further assistance with product dimensions please email us at your convenience.

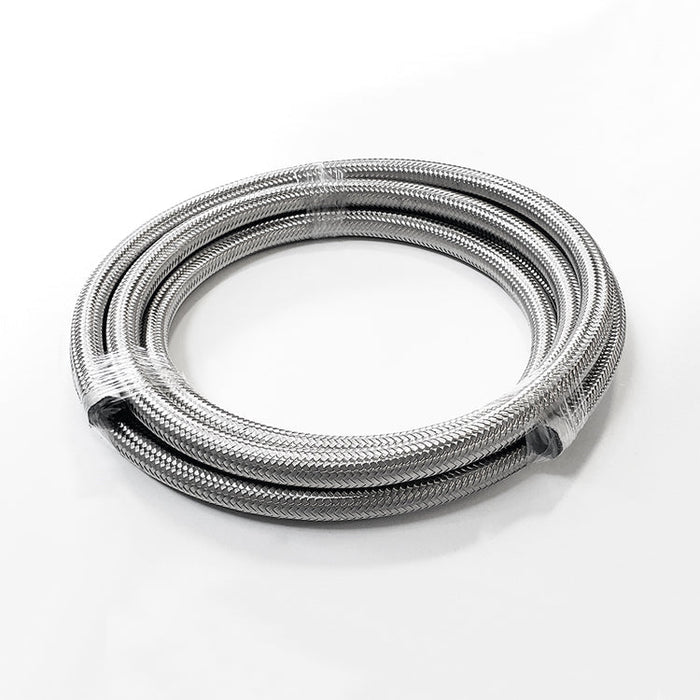

E85 COMPATIBLE STAINLESS STEEL BRAIDED FLEX HOSE

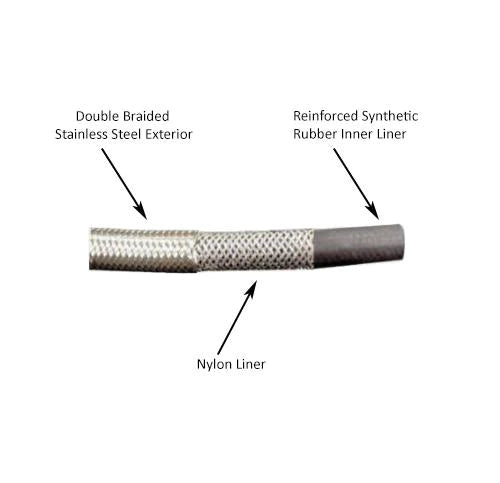

The Ace Race Parts brand of Stainless Braided Flex Hose features a 300 series Stainless Steel double braided exterior (for added corrosion and abrasion resistance), a braided nylon inner liner, and a reinforced synthetic rubber hose. Our E85 compatible stainless braided flex hose is available in AN sizes ranging from -4AN to -20AN and is safe for use in a wide variety of applications, including methanol, oil, water, lubricants, fuel systems (E85/E10 compatible), coolant, and vacuum service.

FEATURES

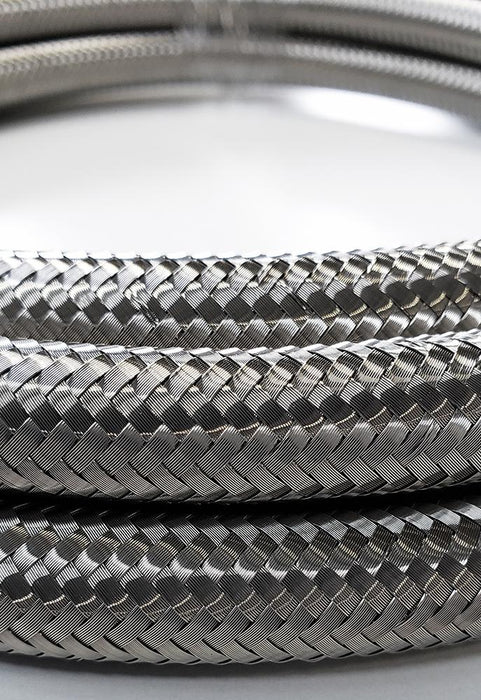

  • 300 Series Stainless Steel Double Braided Exterior
  • Nylon Covered Reinforced Synthetic Rubber Hose
  • Operating Temperature Range: -40°F to 302°F
  • Operating Pressure: 750 PSI / Burst Pressure: 2,500 PSI
  • Suitable for Oil, Fuel, Coolant, and Vacuum Applications

Our Stainless Steel Flex Hose is perfectly suited for our brand of Swivel Style Aluminum Female AN Hose Ends (180°, 150°, 120°, 90°, 60°, 45°, 30°, Straight).

For more dimensional details and product suitability please see the "Dimensions" tab.
