-4AN Black Nylon Braided Flex Hose with Reinforced Rubber Liner - 10 Foot LengthSKU:
Brand: Ace Race Parts

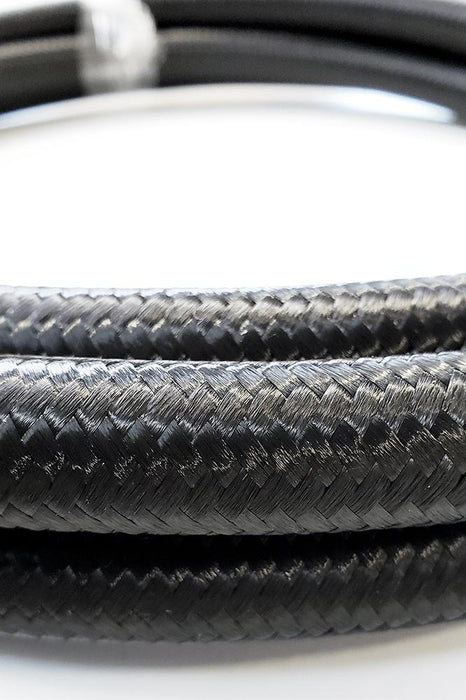

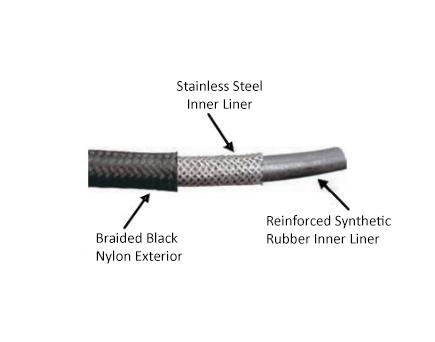

Ace Race Parts' line of Braided Nylon Flex Hose is available in AN sizes ranging from -4AN to -20AN and in convenient 5 foot and 10 foot lengths. Our Nylon Braided Flex Hose features double braided Black Nylon exterior and a Stainless Steel reinforced synthetic rubber inner liner.
This -4AN Black Nylon Braided Flex Hose has an operating temperature range of -40°F to 302°F (-40°C to 150°C), a safe operating pressure of 500 psi*, and a burst pressure of 2,000 psi. Our E85 compatible Black Nylon Braided Hose is safe for use in a wide variety of applications, including fuel systems, methanol, oil, lubricants, water, coolant and vacuum service. Note, this black nylon braided flex hose is NOT suitable for use with brake lines or hydraulic pressure lines and is not suited for in-tank fuel or oil applications where extended submersion occurs.
- Lightweight Black Nylon Braided Exterior
- StainlessCovered Reinforced Synthetic Rubber Inner Liner
- -40°F to 302°F Operating Temperature Range
- 500 PSI Operating Pressure / 2,500 PSI Burst Pressure
- E85 Compatible
- Suitable for Oil, Fuel, Coolant, and Vacuum Applications
|Length||10 Foot Length|
|Hose ID||7/32" (5.4mm)
|Hose OD||7/16" (11.2mm)|
|Operating Pressure||500 psi
|Burst Pressure||2,500 psi
|Operating Temperature||-40°F to 302°F|
