Name: 4.000" V-Band "Male + O-Ring" Flange (0.375" Overall Thickness) 6061 Aluminum
Brand: Ace Race Parts
SKU: 12060-1
Price: 18.99 USD
Availability: InStock

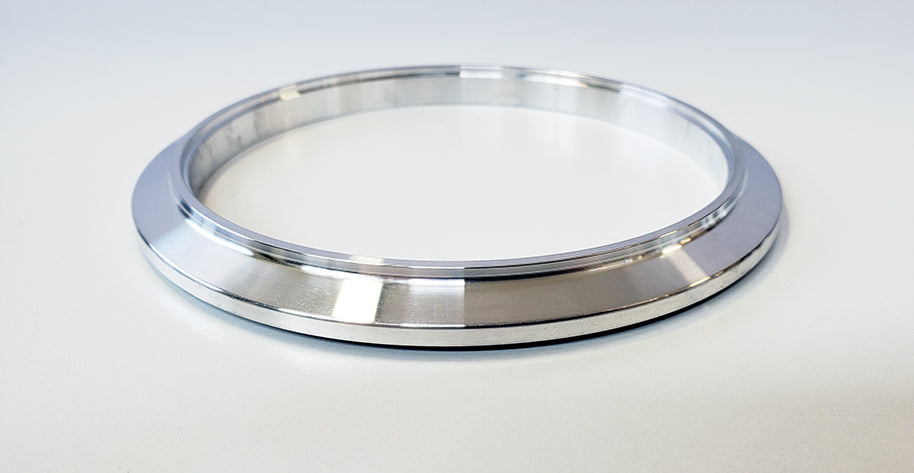

4.000" V-Band "Male + O-Ring" Flange (0.375" Overall Thickness) 6061 Aluminum

by Ace Race Parts

SKU 12060-1

Availability:

89 in stock, ready to be shipped

$ 18.99 - $ 18.99

$ 18.99

$ 18.99 - $ 18.99

$ 18.99

Quantity

V-Band Clamp and Flange Dimensions

Detailed product dimensions can be found in a data table on the main product page. Additionally, a PDF showing more detailed dimensions of our V-Band Flange can be found here: V-Band Flange Dimensions.

Ace Race Parts Aluminum V-Band Flanges are manufactured from 6061-T6 Aluminum in an ISO 9001 certified facility. Our Aluminum V-Band Flanges are offered in two configurations, "Male + O-Ring" and "Female", and when used together create an air-tight seal. Our V-Band Clamps and V-Band Flanges are an affordable and durable type of clamping system that is suited for high performance automotive, diesel, marine and industrial applications.

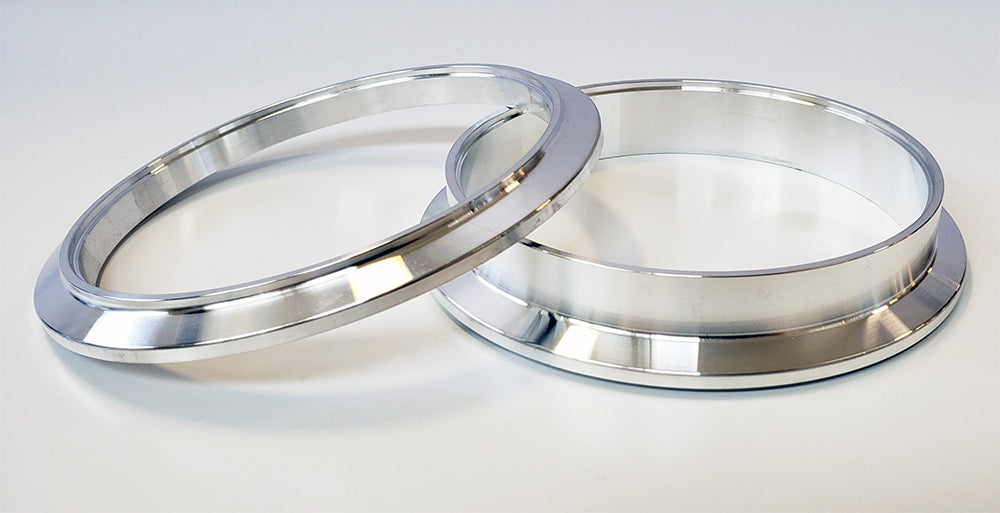

The ultra-thin 0.375" thick V-Band Flange (left) vs a standard 0.790" thick V-Band Flange (right).

DETAILED SPECIFICATIONS:

Flange ID	4.000"
Flange OD	4.750"
Flange Thickness	0.375"
Flange Style	Male + O-Ring
Flange Material Type	Aluminum
