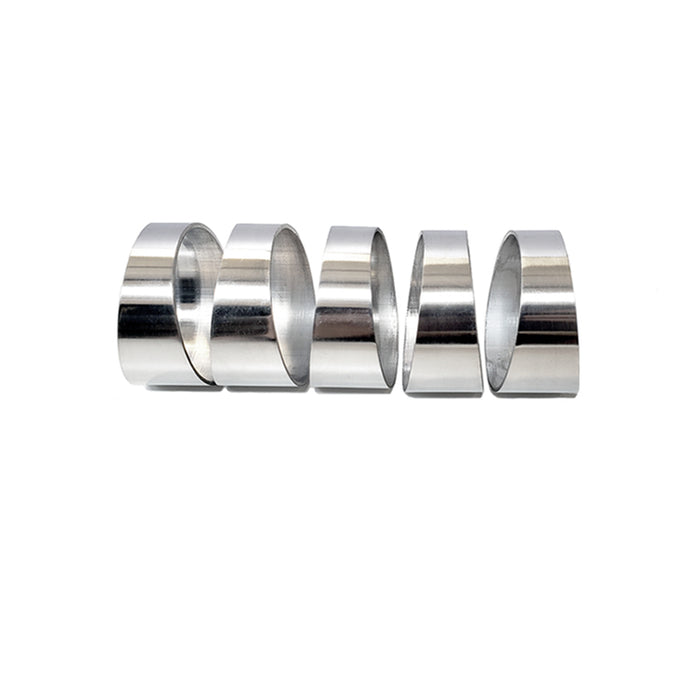

4.000" 16ga Long Radius (1.5D) Pie Cut - Polished OD - Aluminum (45° Bend - 5 Pieces Total)SKU:
Brand: Ace Race Parts
Ace Race Parts 6061 Aluminum Pie Cuts are a high quality, affordable solution for complex high performance automotive applications. Ace Race Parts Aluminum Pie Cuts are precision cut and offer a clean, high quality welding experience. All Pie Cuts are deburred, cleaned, and polished to ensure that they arrive at your shop in perfect condition.
This set of 4.000" OD 6061 Aluminum Pie Cut has a wall thickness of 0.065" and a centerline radius (CLR) of 6.000" (1.5D). Aluminum Pie Cuts are sold as a pack of 5 pieces, each piece in the package is cut to an overall angle of 9° (4.5° on each side), for a total bend angle of 45°.
Ace Race Parts Aluminum Pie Cuts are available in outside diameter ranges from 2.500" to 4.000" for both 45° and 90° bend angles. Aluminum Pie Cut sets are available in Long Radius (1.5D) across all OD and bend angle ranges. Our Aluminum Pie Cuts work perfectly with our Aluminum Mandrel Bends, Aluminum V-Band Clamps & Flanges, Aluminum Tube, and Aluminum Bungs.
|Wall Thickness (Specified)||16ga (0.065")|
|Inside Diameter||3.870" (approximately)|
|Total Bend Degree||45°|
|Centerline Radius||6.000" (1.5D)|
|Angle Per Piece||9° Total, 4.5° Per Side|
|Pie Cut Quantity||5 Pieces Total (9° x 5 = 45°)|
What is Tube and How is it Different from Pipe?
Tube size material is measured by the actual outside diameter (OD) and wall thickness. Whereas, Nominal Pipe Size (NPS) is an industry designation, or "trade size", and it is does not reference the actual measured size of the material. Even the most experienced fabricators are sometimes confused by the industry's terminology and method of sizing. Tube size material is not compatible with pipe size material. Many times the words "pipe" and "tube" are use to describe straight lengths of material (eg: exhaust "piping"); however, the industry standard term for this material is "tube".
