4.000" OD 16ga 90° Mandrel Bend - Polished OD - 6061 Aluminum - (6.000" CLR / 2.000" Legs)
SKU:Brand: Ace Race Parts
Ace Race Parts Aluminum mandrel bends are manufactured using 6061 Aluminum tubing and are precision bent using a CNC mandrel bender in an ISO certified facility to ensure a high quality bend across a wide range of shapes and sizes. Our Aluminum mandrel bends are available in 30°, 45°, 60°, 90°, and 180° bend options with outside diameters ranging from 1.500" to 4.000". Our mandrel bends are de-burred, cleaned, and highly polished to ensure a clean finish on the ends and the surface of the bend.
Our mandrel bends are a perfect match for our Aluminum Tube, Aluminum V-Band Clamps and Flanges, 4-Ply Silicone Couplings, and Stainless Steel T-Bolt Clamps.

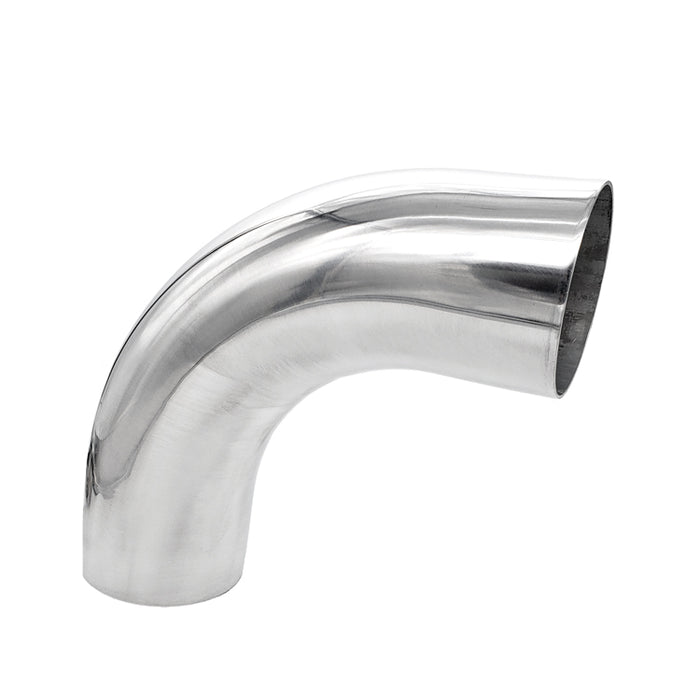

Note, the product photo is an example photo. The example photo is a bend that features 6" legs on either side of the bend. This specific 4.0000" 90° has 2" legs on either side of the bend and is not directly represented by the photo.
DETAILED MANDREL BEND SPECIFICATIONS:
Outside Diameter | 4.000" |
Wall Thickness | 16ga (0.065") |
Inside Diameter | 3.870" |
Centerline Radius | 6.000" |
A1/A2 Length | 7.000" |
Leg Length (after the bend) | 2.000" |
Connection Type | Tube OD Butt-Weld |
Finish | Polished and Buffed |
Material Type | 6061 Aluminum |
