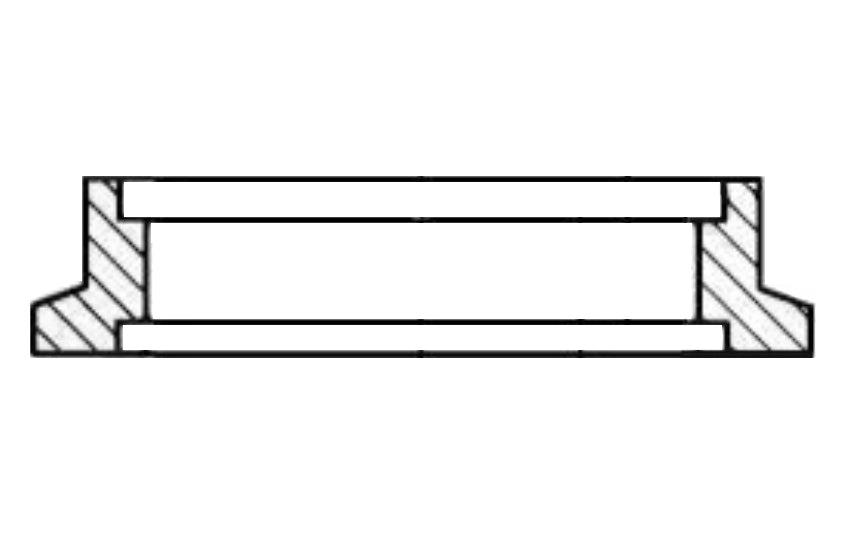

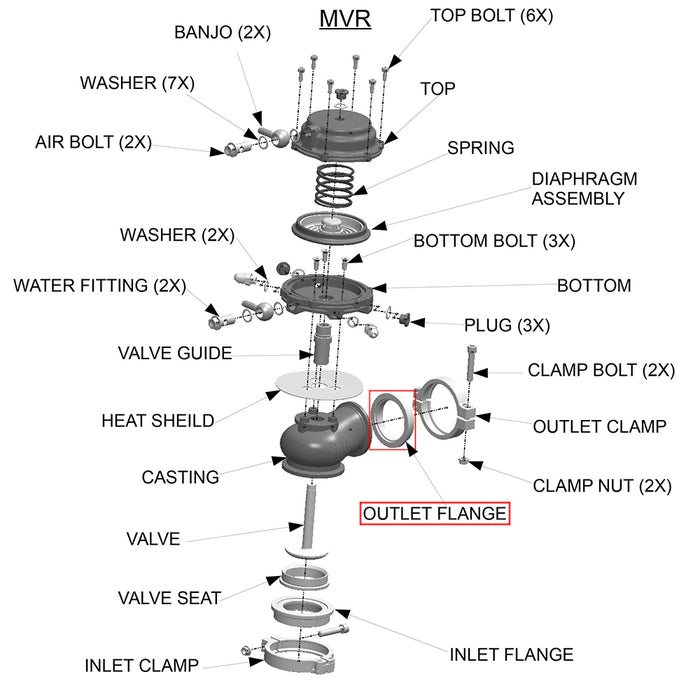

Ace Race Parts' brand of Wastegate Inlet and Outlet Flanges are precision CNC machined in an ISO 9001 certified facility from 304 Stainless Steel. This specific wastegate outlet flange is an affordable, direct replacement for TiAL P/N: MVSFLO (001992) and will work with all authentic TiAL 38mm MV-S Wastegates. Each flange features the exact same overall flange profile, dimensions, and contours as an authentic TiAL 38mm Outlet Flange.
DETAILED 38MM WASTEGATE OUTLET FLANGE SPECIFICATIONS:
Application | TiAL MV-S 38mm Wastegate |
Flange Type | Outlet Flange |
Flange Counterbore ID |
1.504" |
Matching Tube Size | 1.500" OD |
Material | 304 Stainless Steel |
