3.500" 16ga Tight Radius (1D) Pie Cut 304 Stainless (90° Bend - 6 Pieces Total)SKU:
Brand: Ace Race Parts
Ace Race Parts 304 Stainless Steel Pie Cuts are a high quality, affordable solution for complex high performance automotive applications. Ace Race Parts Stainless Pie Cuts are precision cut from 304 Stainless Steel Tube that is manufactured to the ASTM A270 specification and offers a clean, high quality welding experience. All Pie Cuts are deburred, cleaned, polished, and individually packaged to ensure that they arrive at your shop in perfect condition.

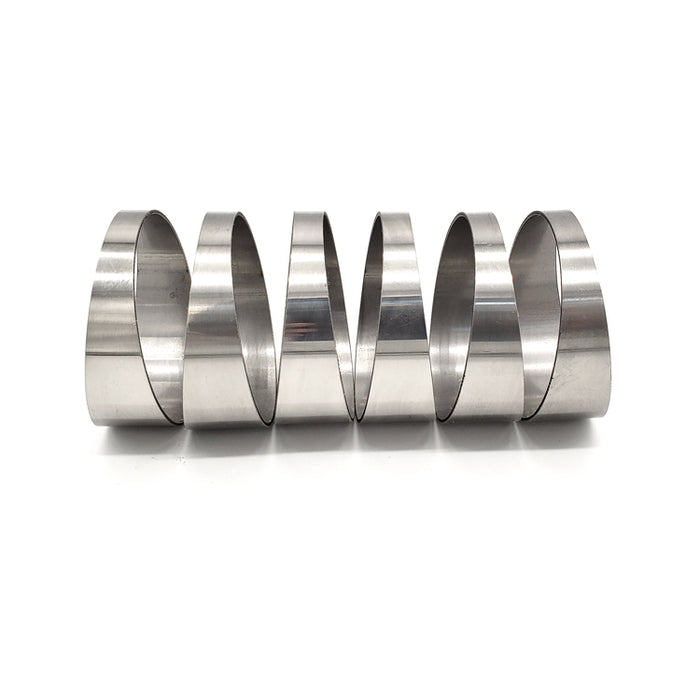

This set of 3.500" OD 304 Stainless Steel Pie Cut has a wall thickness of 0.059" and a centerline radius (CLR) of 3.500" (1D). Stainless Pie Cuts are sold as a pack of 6 pieces, each piece in the package is cut to an overall angle of 15° (7.5° on each side), for a total bend angle of 90°.
Ace Race Parts Stainless Pie Cuts are available in outside diameter ranges from 2.500" to 4.000" for both 45° and 90° bend angles. Stainless Pie Cut sets are available in Short Radius (1D) and Long Radius (1.5D) across all OD and bend angle ranges.
Ace Race Parts 304 Stainless Pie Cuts offer a high quality welding experience and is ensured to fit perfectly with our Stainless Mandrel Bends, Stainless V-Band Clamps & Flanges, Stainless Tube, and Stainless Bungs.
|Wall Thickness (Specified)||16ga (0.059")|
|Inside Diameter||3.370" (approximately)|
|Total Bend Degree||90°|
|Centerline Radius||3.500" (1D)|
|Angle Per Piece||15° Total, 7.5° Per Side|
|Pie Cut Quantity||6 Pieces Total (15° x 6 = 90°)|
What is Tube and How is it Different from Pipe?
Tube size material is measured by the actual outside diameter (OD) and wall thickness. Whereas, Nominal Pipe Size (NPS) is an industry designation, or "trade size", and it is does not reference the actual measured size of the material. Even the most experienced fabricators are sometimes confused by the industry's terminology and method of sizing. Tube size material is not compatible with pipe size material. Many times the words "pipe" and "tube" are use to describe straight lengths of material (eg: exhaust "piping"); however, the industry standard term for this material is "tube".
Note: Please be sure to verify that this tube size material meets the requirements of your project. It is the customer's responsibility to verify the compatibility of the items in their shopping cart. Ace Race Parts is not responsible for orders with mismatched or incompatible products.
