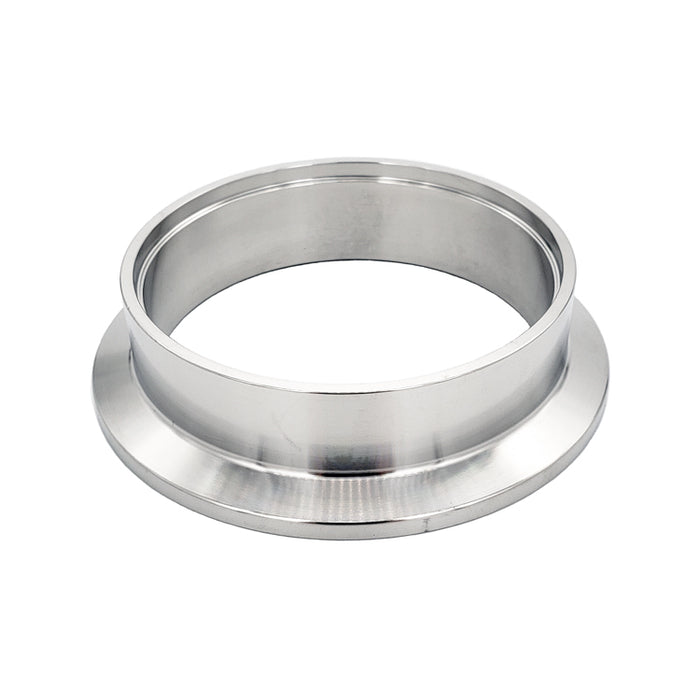

3.000" V-Band Flange "Male" 304 Stainless - Fits Quick Release ClampSKU:
Brand: Ace Race Parts
Ace Race Parts "Female" style V-Band Flanges are precision CNC machined in an ISO 9001 certified facility from 304 Stainless Steel. Stainless Steel V-Band Clamps and Flanges are an affordable and durable type of clamping system that is suited for high performance automotive, diesel, marine and industrial applications.
Our "Male/Female" interlocking style V-Band Flanges utilize a interlocking seating surface to ensure a leak-free seal without the need for a gasket and provides an easy way to align the flanges during installation. The interlocking seating surface, the area where the two flanges meet within the clamp, makes fitment and installation a breeze even when in the tightest of areas.

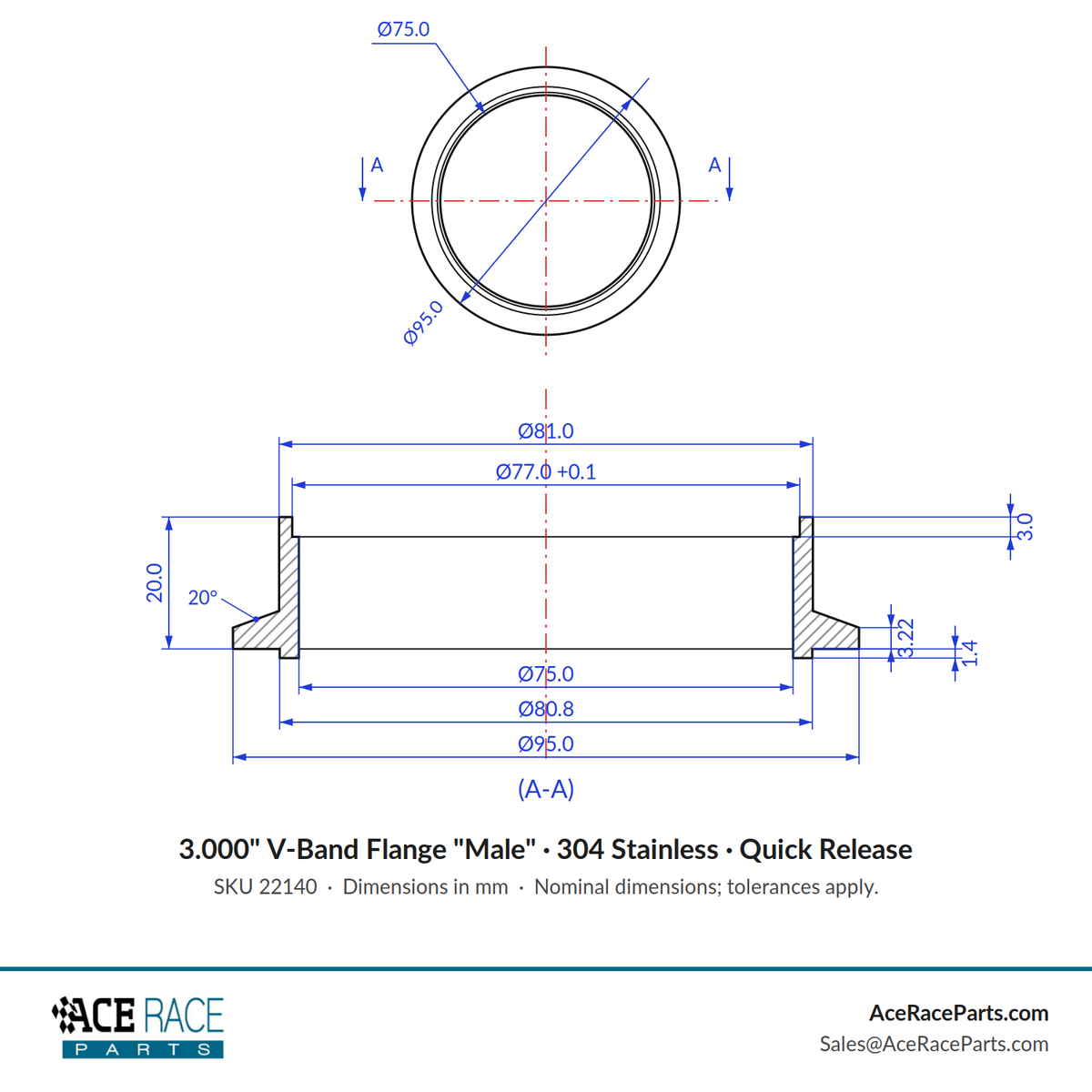

The butt-weld side of our 304 Stainless V-Band Flanges are CNC machined with a counterbore to allow the matching tube size material to slip into the V-Band Flange and be welded in place with the proper alignment. The counterbore is machined to be 0.065" wide and allows for the inside diameter (ID) of 16ga wall thickness tubing to align perfectly with the ID of the V-Band Flange without any restrictions or reductions.
If you need assistance in finding a matching V-Band Flange for an existing application please review our "How To Measure A V-Band Flange" information here: How to Measure a V-Band Flange. For more detailed dimensions and a compatibility chart please click here: V-Band Dimension Chart
Note: This "Male" style V-Band Flange is compatible with only our Quick Release style clamps and will not fit our "Standard" style V-Band Clamps. If you are unsure of what type of V-Band Flange you need please contact us and we will happily assist you to find the correct, compatible V-Band Flange(s) and Clamp.
|Flange Apex Width||0.137"|
|Overall Flange Height
|Material Type||304 Stainless|
