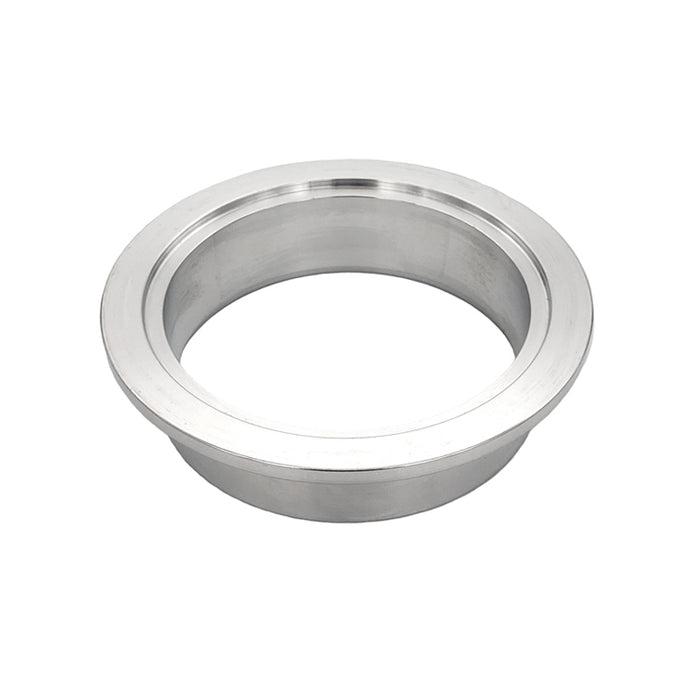

Are you looking for a replacement V-Band Flange for our Aluminum and Aluminum/Stainless Combination V-Band Assemblies? If so, this V-Band Flange is the right choice! This V-Band Flange, due to the dimensions, will not work with our "Standard" style Stainless V-Band Flanges or V-Band Clamps (V-Band Flanges with SKUs starting with 2203xx and V-Band Clamps with SKUs starting with 2201xx are not compatible).
Ace Race Parts Aluminum V-Band Flanges are manufactured from 6061-T6 Aluminum in an ISO 9001 certified facility. Our Aluminum V-Band Flanges are offered in two configurations, "Male + O-Ring" and "Female", and when used together create an air-tight seal. Our V-Band Clamps and V-Band Flanges are an affordable and durable type of clamping system that is suited for high performance automotive, diesel, marine and industrial applications.
This V-Band Flange is a suitable replacement for, or compatible with, the following SKUs:
12057 — 3.000" "Male + O-Ring" V-Band Flange 6061 Aluminum
12024 — 3.000" V-Band Clamp (for Aluminum V-Band Flanges) 304 Stainless
- 12007 — 3.000" V-Band Assembly Aluminum
22140 — 3.000" "Male" V-Band Flange 304 Stainless
22124 — 3.000" V-Band Clamp 304 Stainless - Quick Release
|Flange Apex Width
|Overall Flange Height||0.790"|
|Flange Material Type||Aluminum|
