-20AN Black Nylon Braided Flex Hose with Reinforced Rubber Liner - 10 Foot Length

-20AN Black Nylon Braided Flex Hose with Reinforced Rubber Liner - 10 Foot Length

SKU:
Brand: Ace Race Parts
$ 179.95

/ each

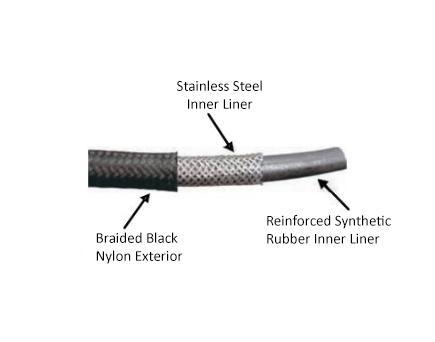

Ace Race Parts' line of Braided Nylon Flex Hose is available in AN sizes ranging from -4AN to -20AN and in convenient 5 foot and 10 foot lengths. Our Nylon Braided Flex Hose features double braided Black Nylon exterior and a Stainless Steel reinforced synthetic rubber inner liner.

This -20AN Black Nylon Braided Flex Hose has an operating temperature range of -40°F to 302°F (-40°C to 150°C), a safe operating pressure of 500 psi*, and a burst pressure of 2,000 psi. Our E85 compatible Black Nylon Braided Hose is safe for use in a wide variety of applications, including fuel systems, methanol, oil, lubricants, water, coolant and vacuum service. Note, this black nylon braided flex hose is NOT suitable for use with brake lines or hydraulic pressure lines and is not suited for in-tank fuel or oil applications where extended submersion occurs.

Black Nylon Braided Flex Hose, AN Fittings and Hose, Detail | Ace Race Parts

FEATURES

  • Lightweight Black Nylon Braided Exterior
  • StainlessCovered Reinforced Synthetic Rubber Inner Liner
  • -40°F to 302°F Operating Temperature Range
  • 500 PSI Operating Pressure / 2,500 PSI Burst Pressure
  • E85 Compatible
  • Suitable for Oil, Fuel, Coolant, and Vacuum Applications

DETAILED SPECIFICATIONS

AN Size -20AN
Length 10 Foot Length
Hose ID 1-1/8" (28.5mm)
Hose OD 1-13/32" (35.8mm)
Operating Pressure 500 psi
Burst Pressure 2,500 psi
Operating Temperature -40°F to 302°F
* Black Nylon Stainless Braided Hose: -4AN to -10AN operating pressure: 500psi / -12AN to -20AN operating pressure: 350psi

Our line of Black Nylon Flex Hose is perfectly suited for our line of Swivel Style Aluminum AN Hose Ends (Straight, 180°, 150°, 120°, 90°, 60°, 45°, 30°).
