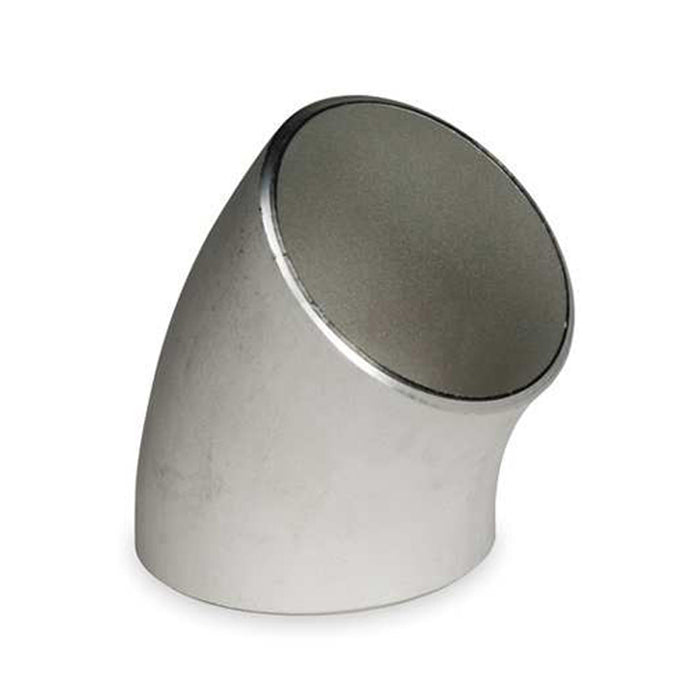

2" Schedule 5 45° Elbow 321 StainlessSKU:
Brand: Ace Race Parts
Our pipe size "weld els" are a high quality, cost effective solution for turbo manifold builders. Save money on your next project without sacrificing quality with Ace Race Parts pipe size products!
|Pipe Size||2" (2.375")|
|Material Type||321 Stainless|
What is the benefit of using 321 stainless over 304 stainless in turbo manifold applications?
321 stainless is typically used with high service temperatures in the 800°F to 1600°F range. One major chemical difference between 321 and 304 stainless is the addition of titanium (Ti) in 321 stainless to help "stabilize" the alloy and to reduce the risk of corrosion in the heat-affected zone. When 304 stainless is heated above 1292°F for an extended period of time it may suffer from weld decay, which will initially display corrosion on the areas around the weld. Weld decay is reduced by the addition of titanium, making 321 stainless ideal for use in turbo exhaust manifolds and other exhaust products that see high levels of heat over prolonged periods of time. Although 304 stainless is more than suitable for most turbo manifold and other exhaust applications, 321 stainless is the superior choice for heat-related corrosion resistance.
More information about various stainless steel alloys can be found in the Design Guidelines for the Selection and Use of Stainless Steel.
What is Nominal Pipe Size (NPS)?
If you've worked with pipe much at all, you've probably noticed that the size of the pipe isn't really what size the pipe is. Unlike tubing, which is generally specified by its OD (outside diameter), or silicone hose, which is generally specified by its ID (inside diameter), pipe is specified by the industry designated size, or trade size. The first thing that all fabricators should know is that "Nominal Pipe Size", or NPS, is an industry designation, or "trade size", and it is does not reference the actual measured size of the material. Even the most experienced fabricators are sometimes confused by the industry's terminology and method of sizing.

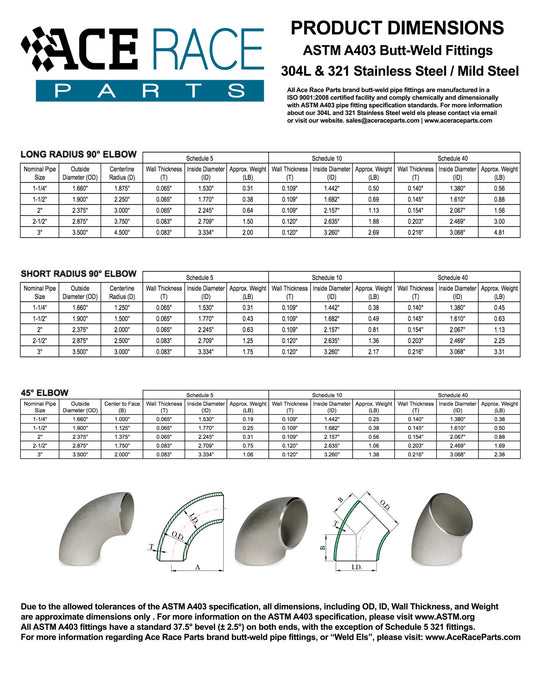

Below is a chart of standard pipe sizes ranging from 1/8" to 4".
Note: This pipe size material is only compatible with other pipe size material (pipe size weld els, tees, reducers, straight lengths, etc). Pipe size material is not compatible with stainless steel tube, tube fittings, or mandrel bends that are sized by the outside diameter.
Please be sure to verify that your selected pipe size meets the requirements of your project. It is the customer's responsibility to verify the compatibility of the items in their shopping cart. Ace Race Parts is not responsible for orders with mismatched, or incompatible, products.
