2.500" V-Band Assembly "Male/Female" - Titanium/Stainless Combination

SKU 72006-1
Original price $ 125.95 - Original price $ 125.95
Original price
$ 125.95
$ 125.95 - $ 125.95
Current price $ 125.95

V-Band Clamp and Flange Dimensions

Detailed product dimensions can be found in a data table on the main product page. Additionally, a PDF showing more detailed dimensions of our V-Band Flange can be found here: V-Band Flange Dimensions.

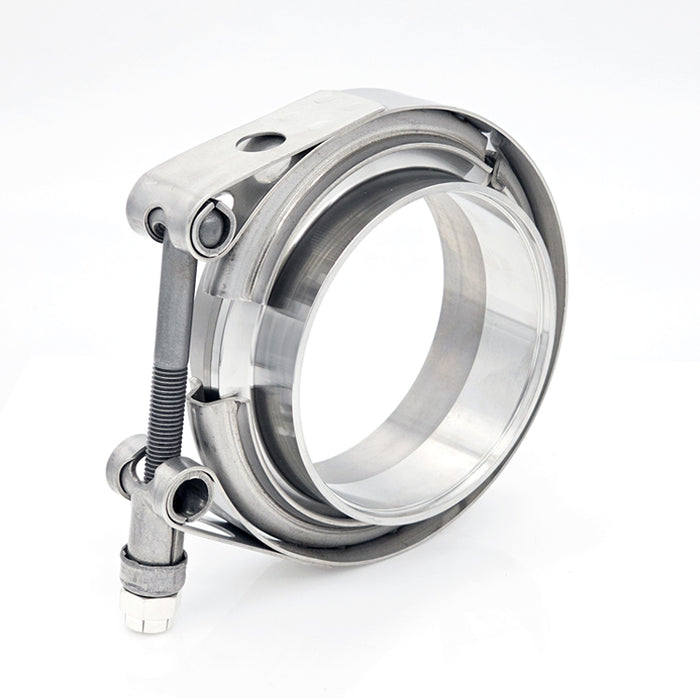

Our Titanium/Stainless Combination V-Band Assemblies are precision CNC machined and feature a 304 Stainless V-Band Clamp, a "Male" style 304 Stainless V-Band Flange and a "Female" style CP2 Titanium V-Band Flange

FEATURES:

  • Combines two different material types in a single clamp
  • 304 Stainless V-Band Clamp
  • 304 Stainless Male V-Band Flange
  • CP2 Titanium Female Flange
  • Counterbored to fit matching tube size
  • Suitable for a wide range of uses, including automotive, diesel, and industrial applications

The seating surface (the area where the two flanges meet) of our "Male" 304 Stainless V-Band Flange and "Female" CP2 Titanium V-Band Flange utilizes an interlocking flange design to create an air-tight, leak free seal. The weld side of our Titanium V-Band Flange is machined to allow the matching tube size material to slip into the V-Band Flange; whereas, the weld side of our Stainless V-Band Flange is precision machined with a counterbore. The counterbore is machined to a width of 0.065" and aligns with the inside diameter (ID) of matching tube size material — preventing any unnecessary reductions or restrictions in the flow of exhaust gases.

This Titanium/Stainless Combination V-Band Clamp Assembly includes the following items:

  • 304 Stainless Steel V-Band Clamp [Quantity: 1]
  • 304 Stainless "Male" V-Band Flange [Quantity: 1]
  • CP2 Titanium "Female" V-Band Flange [Quantity: 1]
