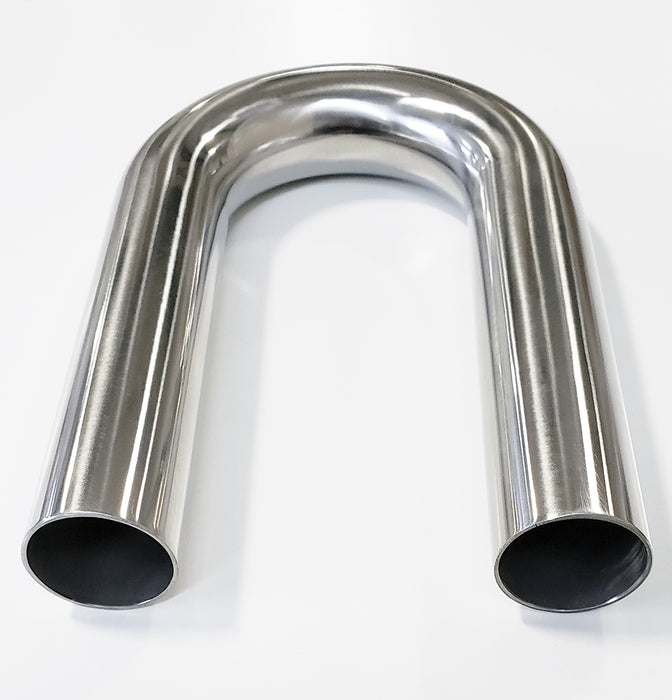

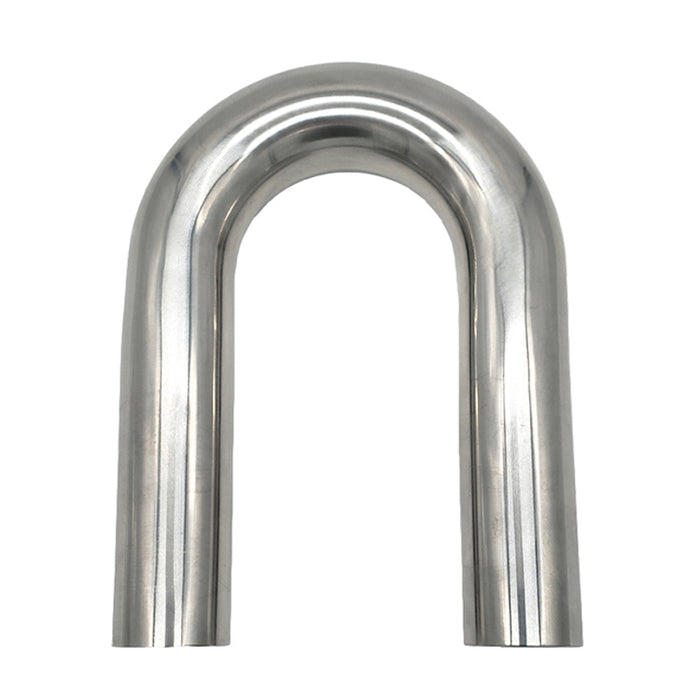

2.500" x 0.047" 180° Mandrel Bend CP2 Titanium - (3.750" CLR / 6.000" Legs)SKU:
Brand: Ace Race Parts
Ace Race Parts CP1 Titanium Mandrel Bends are available in 45°, 90°, and 180° options with outside diameters ranging from 2.500" to 4.000". Ace Race Parts' Titanium Mandrel Bends are a high quality, cost effective solution for high performance exhaust and downpipe applications and are precision bent using a CNC mandrel bender in a ISO 9001 certified facility to ensure that the degree and centerline radius is consistent and free of defects. After the bending process is completed each titanium mandrel bend is then de-burred and polished to a 600 grit finish to ensure a clean finish on the ends and exterior and interior surfaces.
Ace Race Parts' Titanium Mandrel Bends offer a high quality welding experience at an affordable price and is a perfect match for our Titanium Tube, Titanium V-Band Clamps & Flanges, Titanium Flex Bellows, Titanium Pie Cuts, and Titanium Bungs. For the best welding experience, choose Ace Race Parts brand Titanium Welding Wire, available in both 0.039" (1mm) and 0.063" (1.6mm) diameters.
WHAT IS CP1 TITANIUM?
CP1 Titanium, also know as Grade 4 Titanium, is strongest grade of all commercially pure titanium grades and combines extreme strength and toughness with excellent corrosive resistance. CP1 Titanium is the most common grade of titanium in the aerospace processing market and features outstanding ductility and corrosive resistance, including both wet and dry hot gases found in exhaust systems. CP1 Titanium has the highest strength of all commercially pure grades of Titanium and is competitive with Stainless Steel in regard to corrosive resistance but offers a significantly lighter weight due to the low density of Titanium. CP1 Titanium is the superior choice for high performance exhaust systems due to its corrosive resistance, heat resistance, and lightweight characteristics!

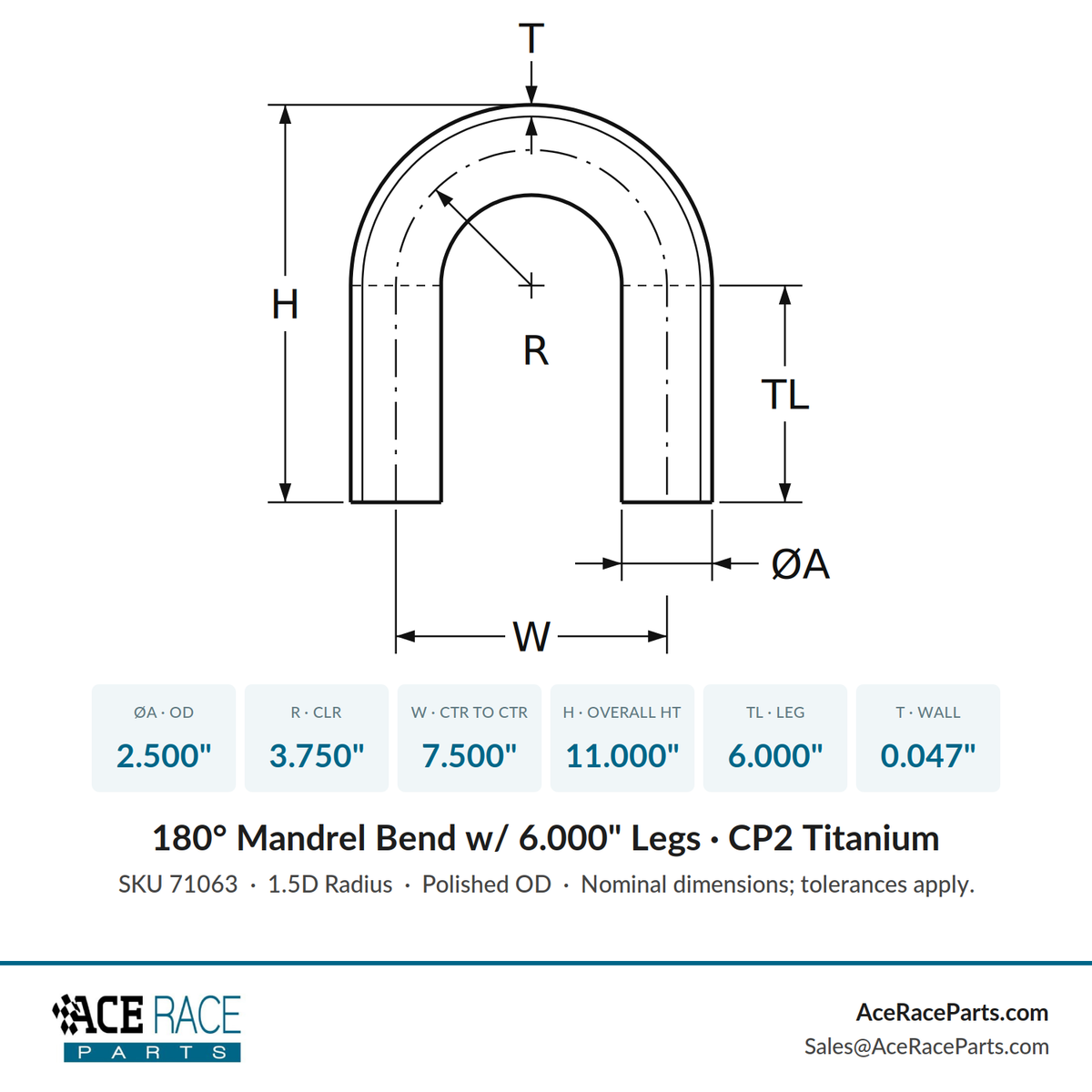

|Wall Thickness||0.047" (1.2mm)|
|Centerline Radius||3.750" (1.5D)|
|Connection Type||Tube OD Butt-Weld|
