2.500" 16ga 30° Mandrel Bend 6061 Aluminum - (3.750" CLR / 7.000" Legs) | Ace Race Parts

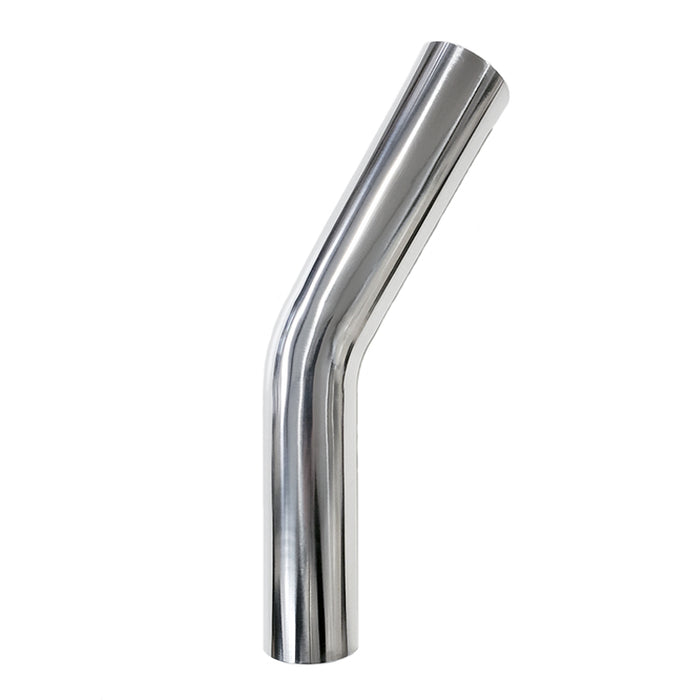

2.500" OD 16ga 30° Mandrel Bend - Polished OD - 6061 Aluminum - (3.750" CLR / 7.000" Legs)

by Ace Race Parts
SKU 11050
Availability:
Out of stock
Sold out
$ 24.65 - $ 24.65
$ 24.65
$ 24.65 - $ 24.65
$ 24.65

Product Dimension Info

Detailed product dimensions can be found on the main product page. If you need further assistance with product dimensions please email us at your convenience.

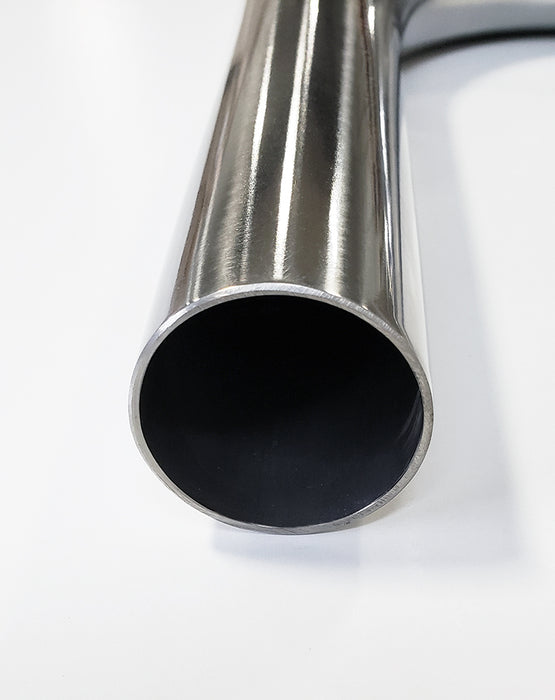

Ace Race Parts Aluminum mandrel bends are manufactured using 6061 Aluminum tubing and are precision bent using a CNC mandrel bender in an ISO certified facility to ensure a high quality bend across a wide range of shapes and sizes. Our Aluminum mandrel bends are available in 30°, 45°, 60°, 90°, and 180° bend options with outside diameters ranging from 1.500" to 4.000". Our mandrel bends are de-burred, cleaned, and highly polished to ensure a clean finish on the ends and the surface of the bend.

Our mandrel bends are a perfect match for our Aluminum Tube, Aluminum V-Band Clamps and Flanges, 4-Ply Silicone Couplings, and Stainless Steel T-Bolt Clamps.

DETAILED SPECIFICATIONS:
Outside Diameter 2.500"
Wall Thickness 16ga (0.065")
Inside Diameter 2.370"
Centerline Radius 3.750"
Leg Length 7.000"
Connection Type Tube OD Butt-Weld
Finish Polished and Buffed
Material Type 6061 Aluminum
