2.375" V-Band Assembly "Male/Female" 304 Stainless - Quick Release Clamp

2.375" V-Band Assembly "Male/Female" 304 Stainless - Quick Release Clamp

SKU:
Brand: Ace Race Parts
In Stock: 100 Pieces
$ 40.75

/ each


If you are looking for a V-Band Assembly that works with 2" Pipe Size material look no further! This 2.375" V-Band features a 2.375" ID counterbore that works well with both 2.375" (60mm) OD tubing and 2" Nominal Pipe size material!

Our Quick-Release style V-Band Assemblies are precision CNC machined in an ISO 9001 certified facility and feature a 304 Stainless Steel Quick Release style V-Band Clamp and a set of 304 Stainless Steel interlocking "Male/Female" V-Band Flanges. V-Band Clamps and Flanges are an affordable and durable type of clamping system that is suited for high performance automotive, diesel, and industrial applications.

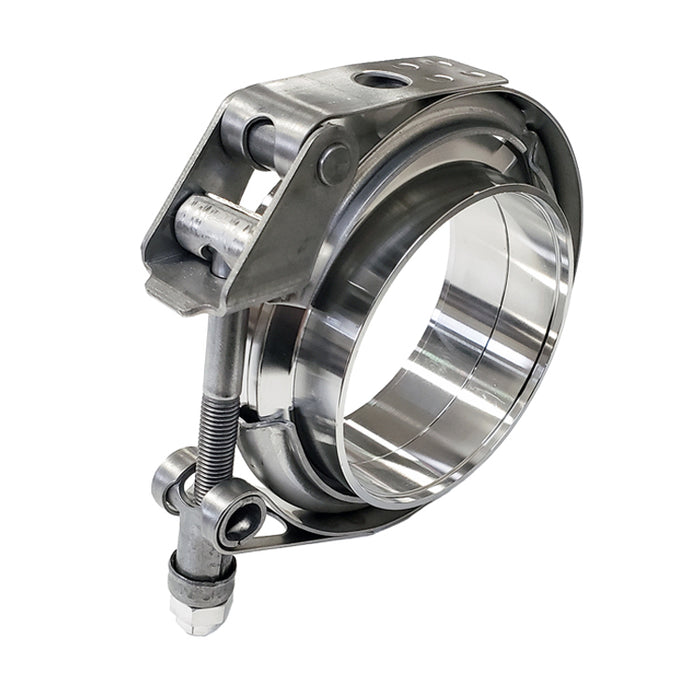

Our 304 Stainless Quick Release style V-Band Clamp utilize a quick release style latch that allows for quick assembly and disassembly in applications where frequent removal is required. Unlike our "standard" style V-Band Clamps, our Quick Release style V-Band Clamps feature a removable and replaceable T-Bolt section, should the user need to do so.

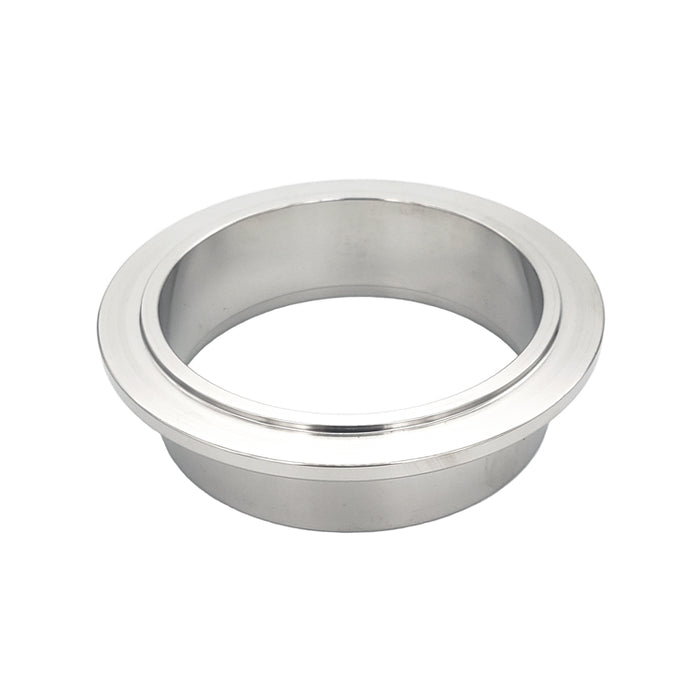

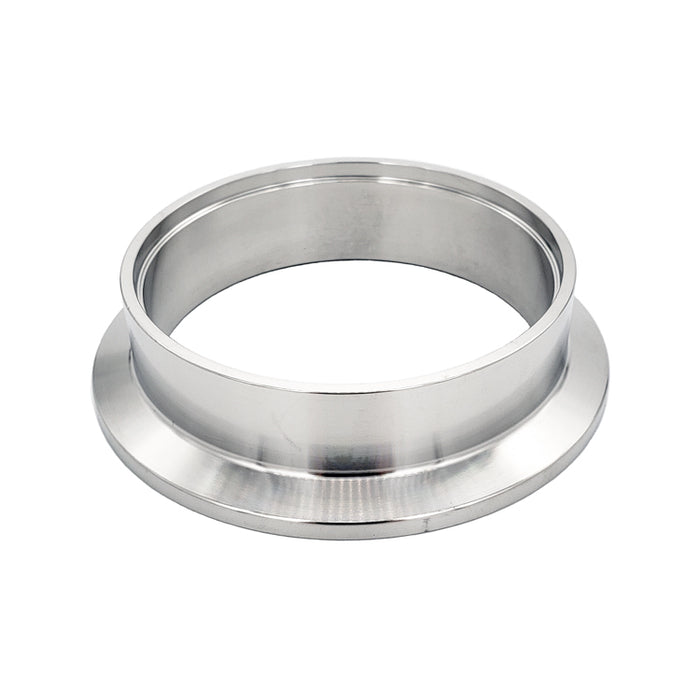

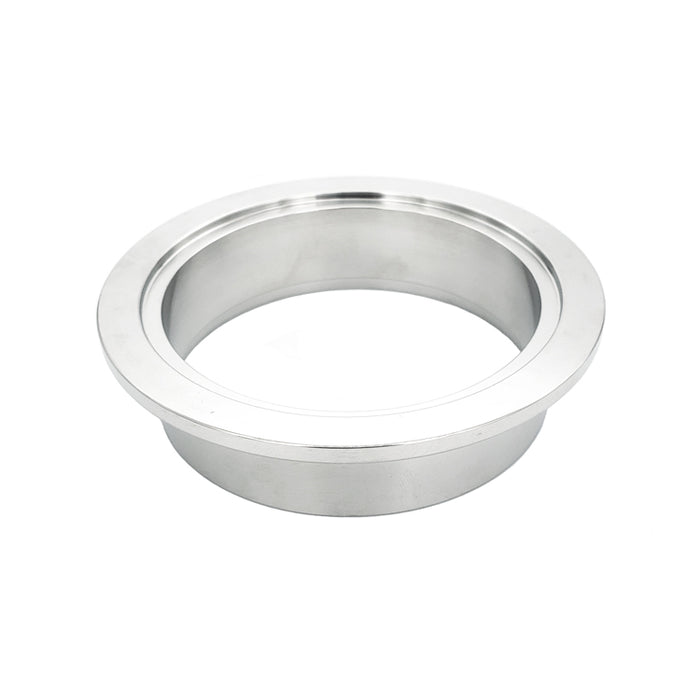

Our "Male/Female" interlocking style V-Band Flanges feature a interlocking seating surface to ensure a leak-free seal without the need for a gasket and provides an easy way to align the flanges during installation. The interlocking seating surface, the area where the two flanges meet, makes fitment and installation a breeze even in tightest of areas.

The weld side of our 304 Stainless V-Band Flanges are CNC machined with a counterbore to allow the matching tube size material to slip into the V-Band Flange and be welded in place. The V-Band Flange counterbore is machined to be 0.065" wide and allows for the inside diameter (ID) of 16 gauge wall thickness tube to align perfectly with the ID of the V-Band Flange without any restrictions or reductions.

Each V-Band Clamp Assembly includes one (1) Quick Release style V-Band Clamp, one (1) "Male" style interlocking V-Band Flange, and one (1) "Female" style interlocking V-Band Flange

DETAILED SPECIFICATIONS:
Flange ID 2.375"
Flange OD 3.083"
Clamp Bandwidth
0.750"
Clamp Type V-Band, Quick Release T-Bolt
Material Type 304 Stainless
Provided Fasteners
Metal Lock Nut (QTY: 1)
Non-Locking Nut (QTY: 1)
Fastener Size (Material)
6mm-1.5 (304 Stainless)

NOTE: Our V-Band Clamps are supplied with two types of nuts: a Zinc plated metal lock nut and a 304 Stainless non-locking hex nut. The Zinc plated lock nut ensures that your clamp stays locked in placed during harsh conditions on the street, strip, and track. The 304 Stainless non-locking hex nut is provided so that the clamp can be used in mock-up, fitment, and pre-installation situations where a lock nut is not required. The non-locking hex nut will not lock in place during use to ensure that the threaded portion of the clamp will not be damaged.

Disclaimer: Our 2-3/8-inch V-Band clamps are supplied with a lock nut and a standard non-locking hex nut. The metal lock nut is a locking-style nut and is not intended to be used during mock-up. Attempting to thread, remove, and re-thread the lock nut may cause damage to the "T-Bolt" section of the clamp. In some cases, excessive force can damage and/or break the "T-Bolt" section of the 2.375" exhaust v-band clamp. If you intend to use our clamps during the mock-up process please use a non-locking hex nut.

Ace Race Parts is not responsible for damage caused to our clamps due to the use of the locking-style nut during mock-up or removal. The thread pitch of our hex nuts, lock nuts and the threaded portion of the "T-Bolt" section of the clamp is 6mm (1/4"-28 fine thread).
