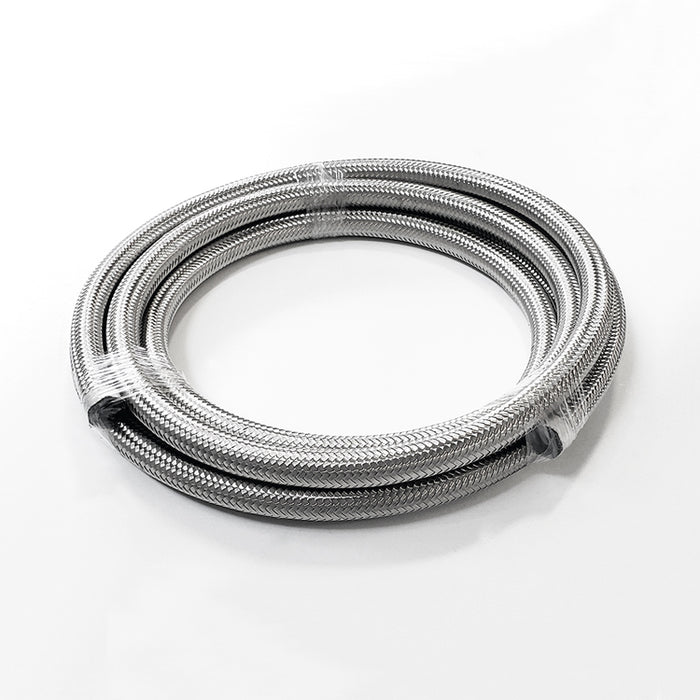

-16AN Stainless Steel Braided Flex Hose with Reinforced Rubber Liner - 10 Foot Length

-16AN Stainless Steel Braided Flex Hose with Reinforced Rubber Liner - 10 Foot Length

SKU:
Brand: Ace Race Parts
In Stock: 20 Pieces
$ 112.50

/ each

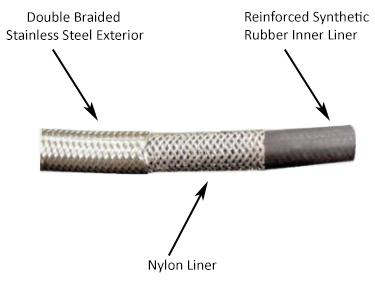

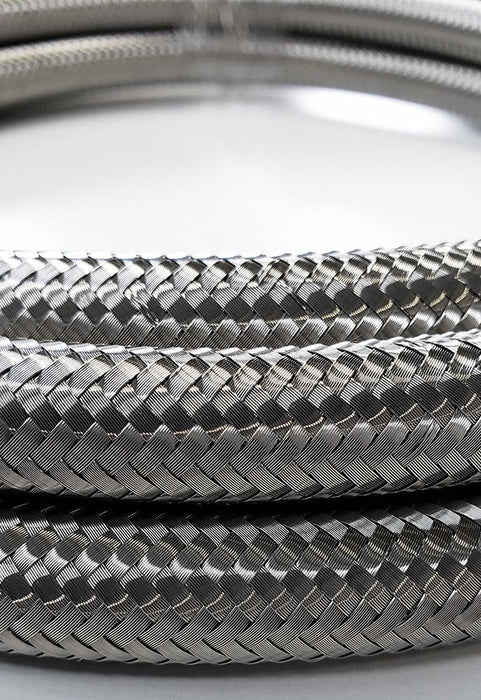

Ace Race Parts' line of Stainless Steel Braided Flex Hose is available in AN sizes ranging from -4AN to -20AN and in convenient 5 foot and 10 foot lengths. Our Stainless Flex Hose features a 300 series Stainless Steel double braided exterior (for added corrosion and abrasion resistance), a braided nylon liner, and a reinforced synthetic rubber inner liner.

This -16AN Stainless Steel Braided Flex Hose has an operating temperature range of -40°F to 302°F (-40°C to 150°C), a safe operating pressure of 750 psi*, and a burst pressure of 2,500 psi. Our E85 compatible Stainless Braided Hose is safe for use in a wide variety of applications, including fuel systems, methanol, oil, lubricants, water, coolant and vacuum service. Note, this stainless steel braided flex hose is NOT suitable for use with brake lines or hydraulic pressure lines and is not suited for in-tank fuel or oil applications where extended submersion occurs.

Stainless Braided Flex Hose, AN Fittings and Hose, Detail | Ace Race Parts

FEATURES

  • 300 Series Stainless Double Braided Exterior
  • Nylon Covered Reinforced Synthetic Rubber Inner Liner
  • -40°F to 302°F Operating Temperature Range
  • 1,000 PSI Operating Pressure / 6,000 PSI Burst Pressure
  • E85 Compatible
  • Suitable for Oil, Fuel, Coolant, and Vacuum Applications

DETAILED SPECIFICATIONS

AN Size -16AN
Length 10 Foot Length
Hose ID 7/8" (22.2mm)
Hose OD 1-13/64" (30.5mm)
Operating Pressure 750 psi
Burst Pressure 2,500 psi
Operating Temperature -40°F to 302°F
* Stainless Braided Hose: -4AN to -12AN operating pressure: 1,000psi / -16AN operating pressure: 750psi / -20AN operating pressure: 500psi
** Black Nylon Stainless Braided Hose: -4AN to -10AN operating pressure: 500psi / -12AN to -20AN operating pressure: 350psi

Our line of Stainless Steel Flex Hose is perfectly suited for our line of Swivel Style Aluminum AN Hose Ends (Straight, 180°, 150°, 120°, 90°, 60°, 45°, 30°).
