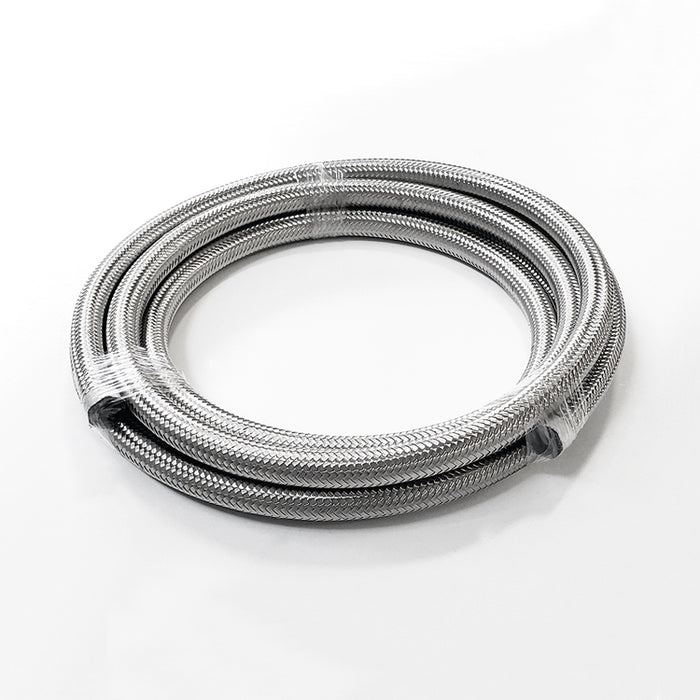

-12AN Stainless Steel Braided Flex Hose with Reinforced Rubber Liner - 10 Foot LengthSKU:
Brand: Ace Race Parts

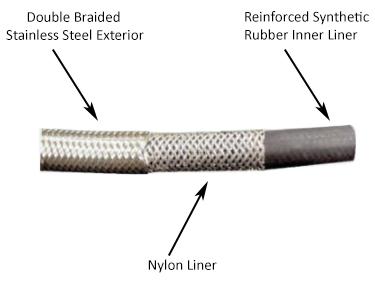

Ace Race Parts' line of Stainless Steel Braided Flex Hose is available in AN sizes ranging from -4AN to -20AN and in convenient 5 foot and 10 foot lengths. Our Stainless Flex Hose features a 300 series Stainless Steel double braided exterior (for added corrosion and abrasion resistance), a braided nylon liner, and a reinforced synthetic rubber inner liner.
This -12AN Stainless Steel Braided Flex Hose has an operating temperature range of -40°F to 302°F (-40°C to 150°C), a safe operating pressure of 1,000 psi*, and a burst pressure of 6,000 psi. Our E85 compatible Stainless Braided Hose is safe for use in a wide variety of applications, including fuel systems, methanol, oil, lubricants, water, coolant and vacuum service. Note, this stainless steel braided flex hose is NOT suitable for use with brake lines or hydraulic pressure lines and is not suited for in-tank fuel or oil applications where extended submersion occurs.
- 300 Series Stainless Double Braided Exterior
- Nylon Covered Reinforced Synthetic Rubber Inner Liner
- -40°F to 302°F Operating Temperature Range
- 1,000 PSI Operating Pressure / 6,000 PSI Burst Pressure
- E85 Compatible
- Suitable for Oil, Fuel, Coolant, and Vacuum Applications
|Length||10 Foot Length|
|Hose ID||11/16" (17.4mm)
|Hose OD||31/32" (24.4mm)
|Operating Pressure||1,000 psi
|Burst Pressure||6,000 psi
|Operating Temperature||-40°F to 302°F|
