1.750" 16ga 60° Mandrel Bend 304 Stainless - (2.625" CLR / 6.000" Legs) | Ace Race Parts

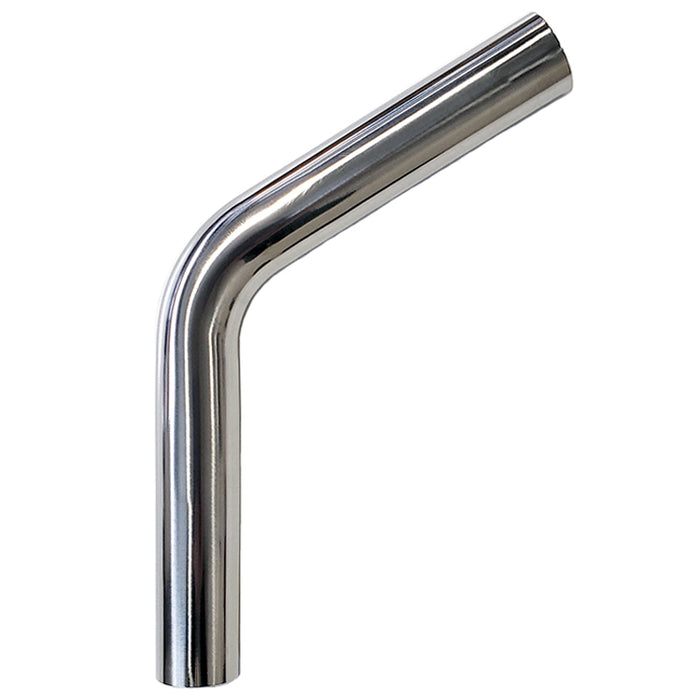

1.750" 16ga 60° Mandrel Bend - (2.625" CLR / 6.000" Legs) - Polished OD - 304 Stainless

Brand: Ace Race Parts
Out of stock
$ 21.75

/ each

Ace Race Parts 304 Stainless Steel mandrel bends are a high quality, cost effective solution for header, exhaust, and downpipe builders. Available in 15°, 45°, 60°, 90°, and 180° in outside diameters from 1.500" to 4.000", Ace Race Parts mandrel bends are precision bent using a CNC mandrel bender in an ISO certified facility to ensure that the degree and centerline radius of each bend is consistent and free of defects. After the bending process is completed each mandrel bend is then de-burred and polished to a 600 grit finish to ensure a clean finish on the ends and surface. Our mandrel bends are a perfect match for our stainless steel Tube, stainless steel V-Band Clamps and FlangesTube Size FittingsExhaust Flanges, and Flex Couplings and Flex Bellows.


Outside Diameter 1.750"
Wall Thickness 16ga (0.065")
Inside Diameter 1.620"
Centerline Radius 2.625"
Leg Length 6.000"
Connection Type Tube OD Butt-Weld
Finish Polished OD
