1.500" V-Band Assembly "Male/Female" 304 Stainless - Quick Release Clamp
1.500" V-Band Assembly "Male/Female" 304 Stainless - Quick Release Clamp | Ace Race Parts
1.500" V-Band Assembly "Male/Female" 304 Stainless - Quick Release Clamp - Ace Race Parts
1.500" V-Band Assembly "Male/Female" 304 Stainless - Quick Release Clamp - Ace Race Parts
1.500" V-Band Assembly "Male/Female" 304 Stainless - Quick Release Clamp - Ace Race Parts

1.500" V-Band Assembly "Male/Female" 304 Stainless - Quick Release Clamp

by Ace Race Parts
SKU 22101
Availability:
42 in stock, ready to be shipped
$ 31.80 - $ 31.80
$ 31.80
$ 31.80 - $ 31.80
$ 31.80

V-Band Dimensions

Tube Size1.500"
Flange OD2.181"
T-Bolt1/4"-28

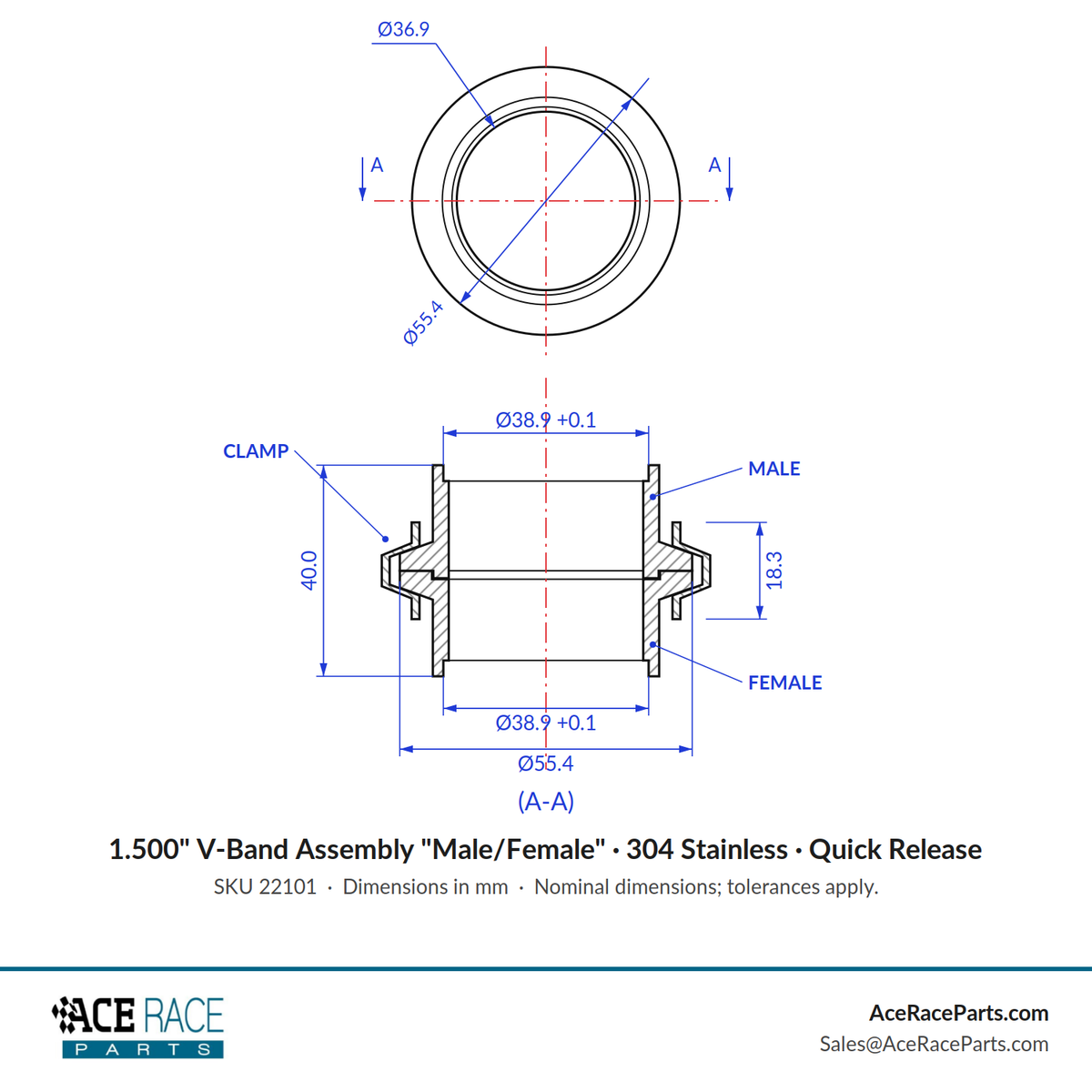

View drawing

Matching an existing V-Band?

There is no industry standard for V-Band flange dimensions, so a clamp or flange of the same tube size from another brand may not fit. Standard and Quick Release styles also do not interchange. Before ordering, measure your existing flange and compare it to ours.

V-Band sizing guide ›

Nominal dimensions; material and manufacturing tolerances apply. Need help matching a part? Email us and we'll help.

QUICK RELEASE STYLE V-BAND CLAMP — LEAK-FREE INTERLOCKING FLANGE DESIGN

Ace Race Parts brand Quick-Release style V-Band Assemblies are precision CNC machined and feature a 304 Stainless Steel Quick Release style V-Band Clamp and a set of 304 Stainless Steel interlocking "Male/Female" V-Band Flanges. Our Quick Release style V-Band Clamps feature a quick-release latch and a replaceable T-Bolt section that allows for quick assembly and disassembly. For applications where frequent removal of the clamp is required we recommend using our Quick Release style V-Band Clamps and compatible V-Band Flanges.

FEATURES:

  • Precision CNC Machined from 304 Stainless Steel
  • Male/Female style Interlocking Flanges
  • Counterbored to fit matching tube size material
  • Removable & Replaceable T-Bolt Fastener
  • Perfect for exhaust systems, turbo manifolds, and more!

Our V-Band Flanges utilize an interlocking flange design that ensures a leak-free seal without the need for a gasket and features a counterbore on the weld side of the flange that allows the matching tube size material to slip into the flange. The counterbore is machined to a width of 0.065" and aligns with the inside diameter (ID) of matching tube size material — preventing any unnecessary reductions or restrictions in the flow of exhaust gases.

If you need assistance in finding a matching V-Band Clamp or Flange for an existing application please review our "How To Measure A V-Band Flange" information here: How to Measure a V-Band Flange.

This V-Band Clamp Assembly includes the following items:

  • (1) V-Band Clamp, Quick Release, 304 Stainless (SKU: 22117)

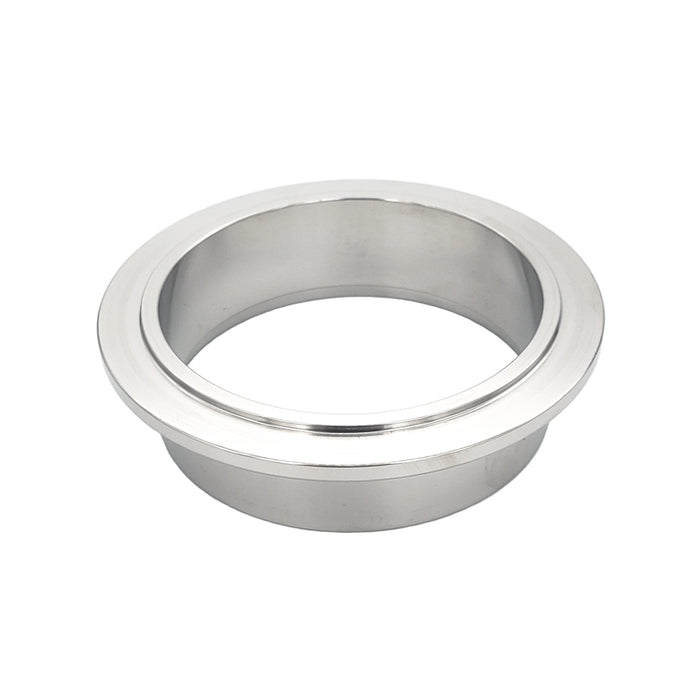

  • (1) "Male" Interlocking V-Band Flange, 304 Stainless (SKU: 22133)

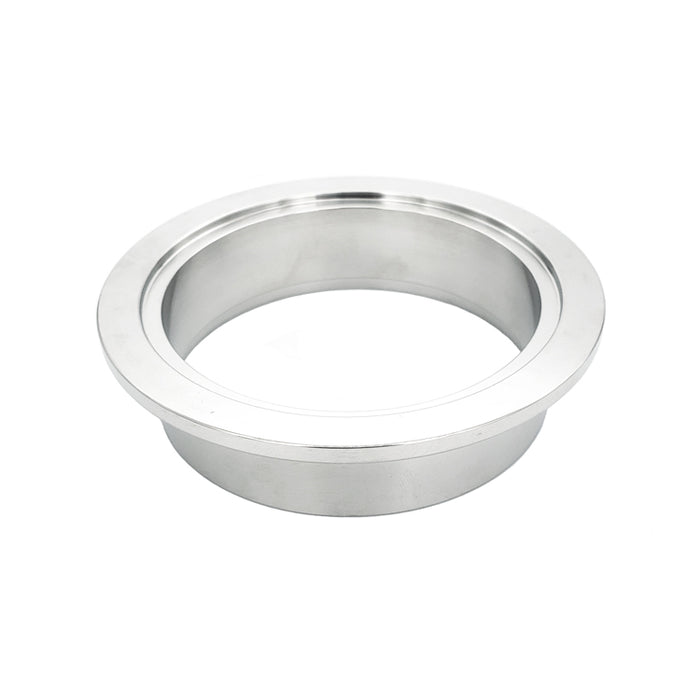

  • (1) "Female" Interlocking V-Band Flange, 304 Stainless (SKU: 22149)
