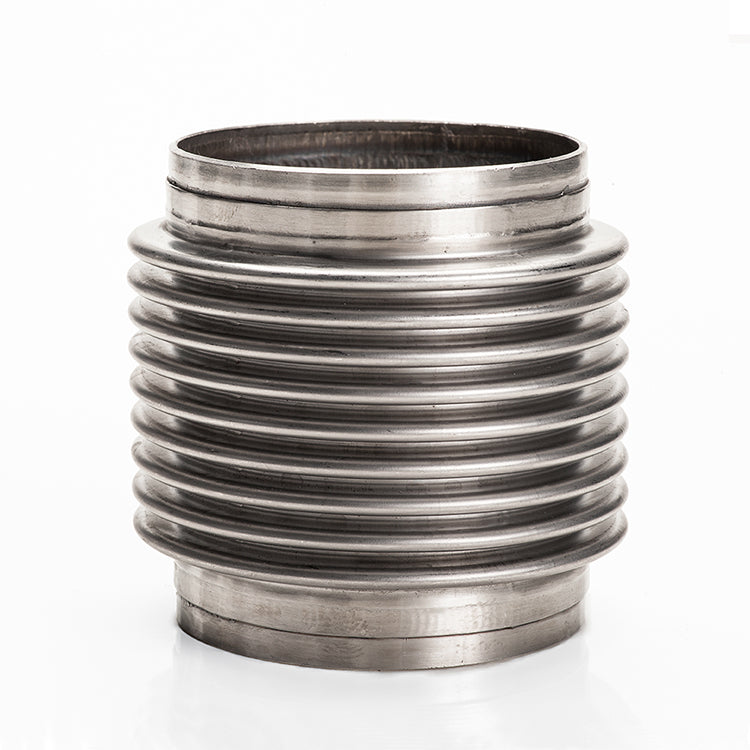

3.000" Flex Bellow (with Inner Liner) x 4.000" Overall Length - 304 Stainless

by Ace Race Parts
SKU 24019
Availability:
419 in stock, ready to be shipped
$ 47.95 - $ 47.95
$ 47.95
$ 47.95 - $ 47.95
$ 47.95

Product Dimension Info

Detailed product dimensions are listed further down this page. All dimensions are nominal and subject to material and manufacturing tolerances. If you need help with a dimension, please email us at your convenience.

FEATURES

  • 100% 304 Stainless Steel Construction
  • 2-Ply Bellow Design
  • Slip-Fit Connection Type (must be welded)
  • Directional Smooth Bore Inner LinerĀ
  • Extremely Durable in High Pressure Applications

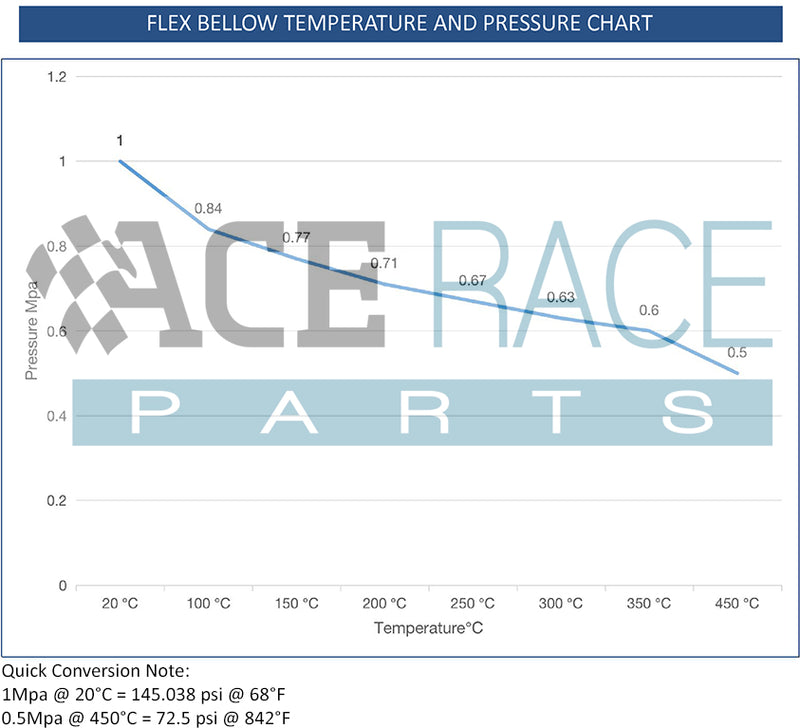

  • Pressure Tested (data listed below): 145 psi @ 68Ā°F and 72.5 psi @ 842Ā°F
  • Helium Leak Tested Prior to Shipment

Our 304 Stainless Steel Flex Bellows minimize the potential for cracking in turbo manifolds, dump tubes, downpipes and other automotive and industrial applications. UtilizingĀ aĀ slip-fit design that allows the matching tube size material to slip into the bellow, our exhaust flex bellowsĀ feature a smooth bore directional inner linerĀ that needs to be placed in the flow of the exhaust gas.

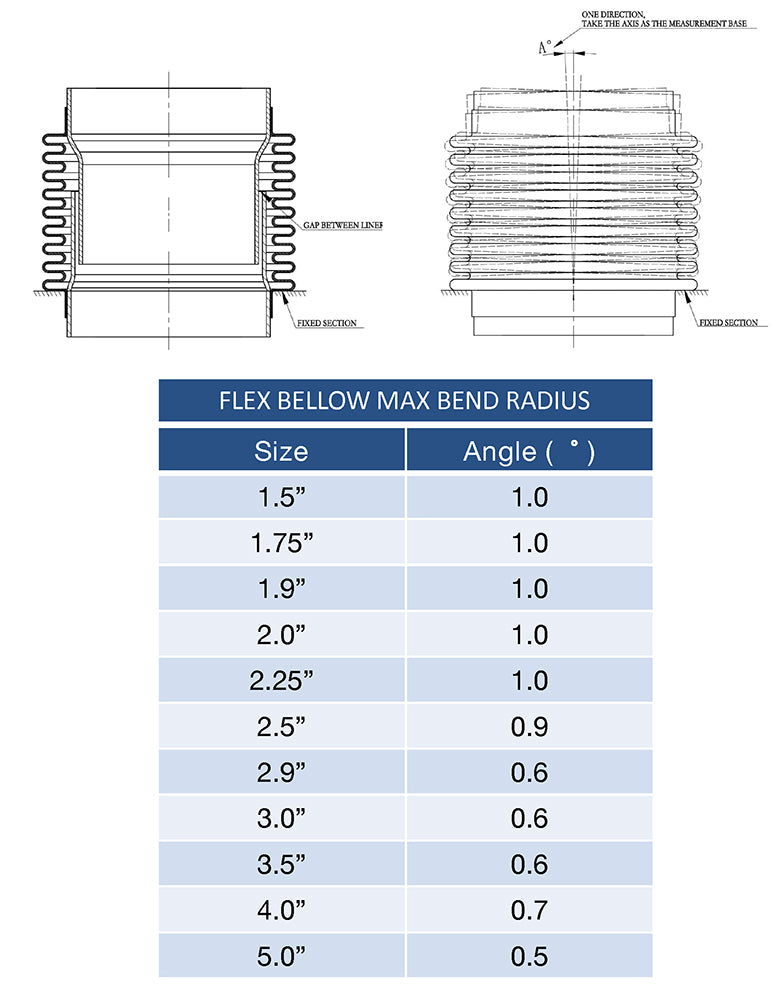

Please note, while this style Flex Bellow is a great choice for applications that experience elongation and compression it is not intended to be used in applications where a large amount of axial flex is required. This specific 3.000" ID Flex Bellow offers a maximum bend angle of 0.6Ā°.
