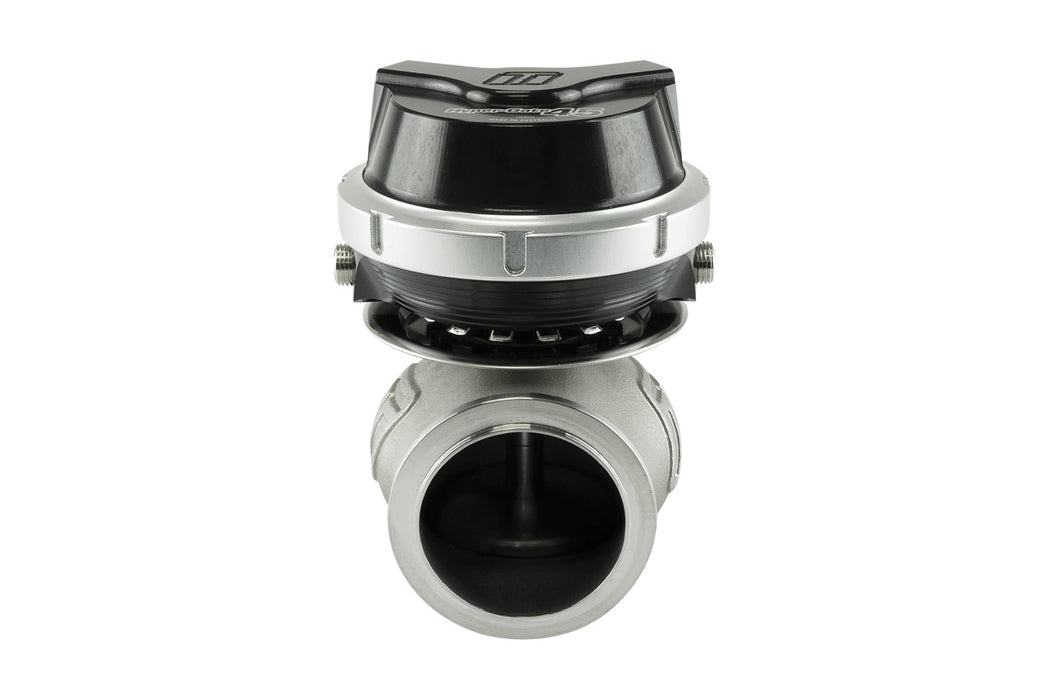

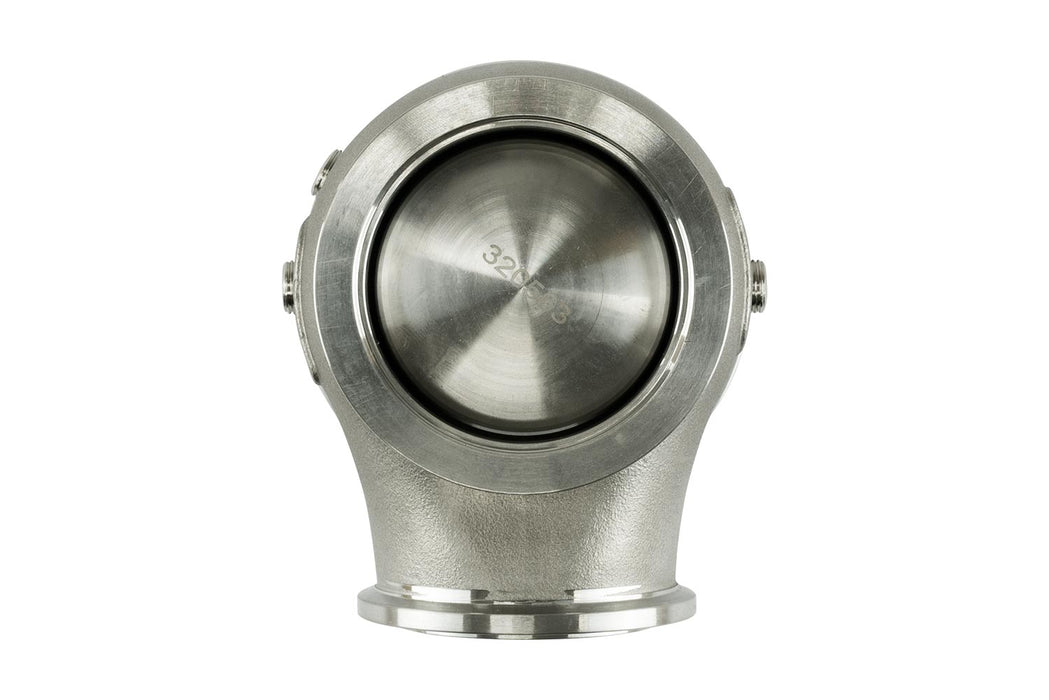

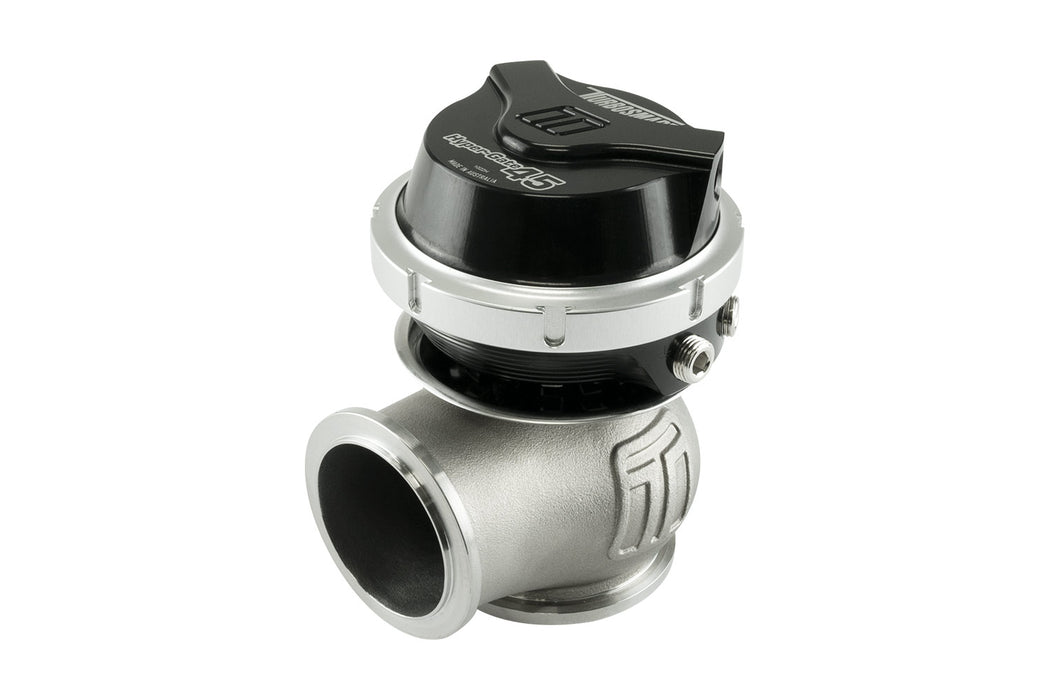

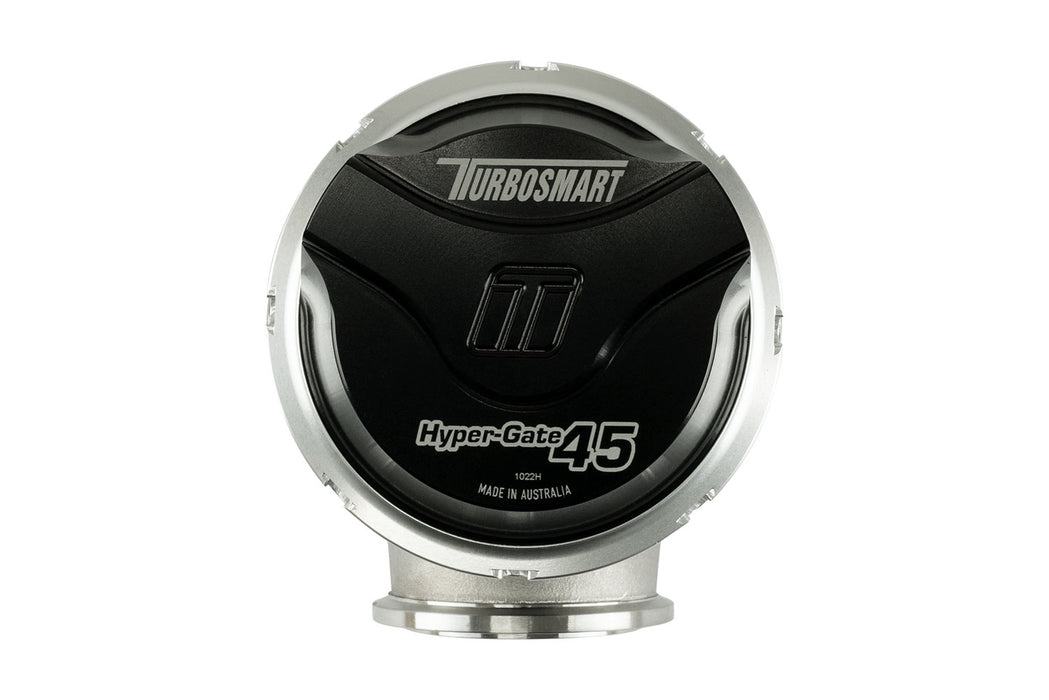

Turbosmart GenV HyperGate45 "High Pressure" 35psi External Wastegate (Black)

The Turbosmart GenV HyperGate45 HP External Wastegate is a motorsport-proven, high-pressure 45 mm external wastegate engineered for extreme boost control applications. Featuring a dedicated high-pressure actuator capable of supporting base spring pressures up to 50 PSI, the HyperGate45 HP is designed for high-output race builds, CO₂-assisted boost control systems, and aggressive reference signal strategies where precise, stable boost regulation is critical.

As part of Turbosmart’s fifth-generation external wastegate lineup, the GenV platform represents a complete ground-up redesign, with only the mounting orientation carried over from the previous generation. The HyperGate45 HP has been CFD optimized and flow-bench validated in-house to deliver class-leading flow performance, enhanced thermal stability, and exceptional fatigue resistance under sustained high-boost conditions.

The modular GenV design allows the actuator base and cap to be independently clocked, providing full 360-degree orientation to accommodate tight engine bays without compromising hose routing or service access. Optional liquid actuator cooling is available for applications exposed to extreme exhaust heat.

Constructed from a high-temperature 347 stainless steel body and featuring a Nitronic 60 valve guide, the HyperGate45 HP is built to withstand severe thermal loads while maintaining precise valve control. A high-quality diaphragm and spring system ensures consistent, repeatable boost regulation across the operating range, even at elevated base pressures.

FEATURES

• HP actuator supporting up to 50 PSI base pressure
• Class-leading thermal performance
• CFD-optimized and bench-validated flow performance
• Class-leading fatigue resistance
• Optional liquid actuator cooling
• Rotatable / clockable actuator housing
• Nitronic 60 valve guide and high-temperature 347 stainless steel body
• 17-7 PH stainless steel springs
• Strap-type V-band clamps for secure sealing

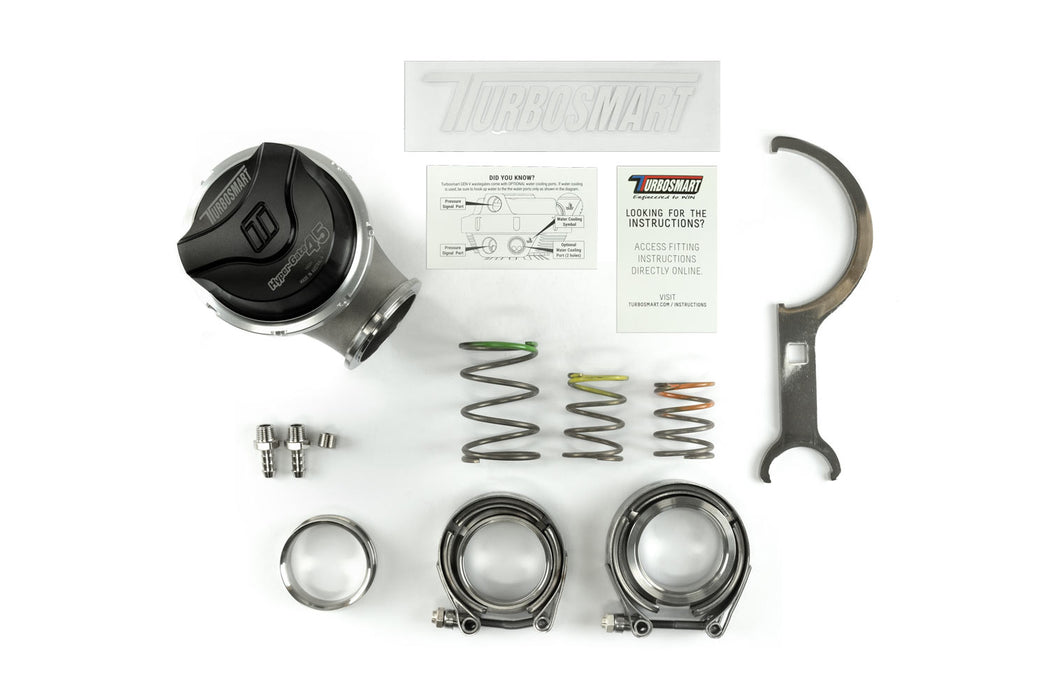

WHAT’S INCLUDED

• GenV HyperGate45 HP wastegate unit
• Locking collar tool
• 10 PSI and 25 PSI springs (included in box)
• GenV 316 stainless steel valve seat
• V-band inlet and outlet clamps
• Inlet and outlet weld flanges
• Hose tail and blank fitting kit
• Turbosmart decal

IMPORTANT NOTE

This product does not have a CARB EO number and is not legal for sale or use on emissions-controlled vehicles in California. Intended for race and off-road use only.
