The Turbosmart GenV CompGate40 External Wastegate is a motorsport-proven, high-flow solution engineered to deliver precise and reliable boost control in demanding turbocharged applications. As the highest-flowing wastegate in its class, the GenV CompGate40 combines advanced thermal management, fatigue resistance, and extensive user configurability for long-term performance and durability.
Designed as a ground-up evolution of Turbosmart’s proven external wastegate platform, the GenV series retains only the mounting orientation from the previous generation. Every other aspect has been redesigned using CFD optimization and in-house flow bench validation to maximize exhaust flow, improve thermal stability, and enhance overall boost control accuracy.
The modular GenV design provides exceptional flexibility during installation. The actuator base and cap can be independently indexed, enabling full 360-degree orientation to suit tight packaging constraints without compromising hose routing or service access. Actuators are interchangeable across the GenV range, allowing builders to tailor the wastegate configuration to their specific space and performance requirements.
Constructed from a high-temperature 347 stainless steel body with a Nitronic 60 valve guide, the CompGate40 is built to withstand extreme exhaust heat and sustained motorsport use. A linear diaphragm design ensures consistent valve control across the entire operating range, while optional liquid cooling ports provide additional thermal management for the most demanding applications.
Each wastegate is supplied with a full spring kit for boost pressure tuning and includes 1/8" NPT reference ports for fast, responsive boost signal control.
FEATURES
- Highest-flowing wastegate in its class
- CFD-optimized and flow-bench validated for maximum performance
- Modular GenV design with interchangeable actuators
- Independently orientable actuator base and indexable cap
- Linear diaphragm design for consistent valve control and response
- High-temperature 347 stainless steel body
-
Nitronic 60 valve guide for superior wear resistance
-
17-7 PH stainless steel springs included
- Optional liquid actuator cooling ports
- Strap-type V-band clamps for secure sealing
- Direct-fit upgrade for Gen4 Turbosmart wastegates
APPLICATIONS
- Universal external wastegate applications
- Performance street builds, track cars, and race vehicles

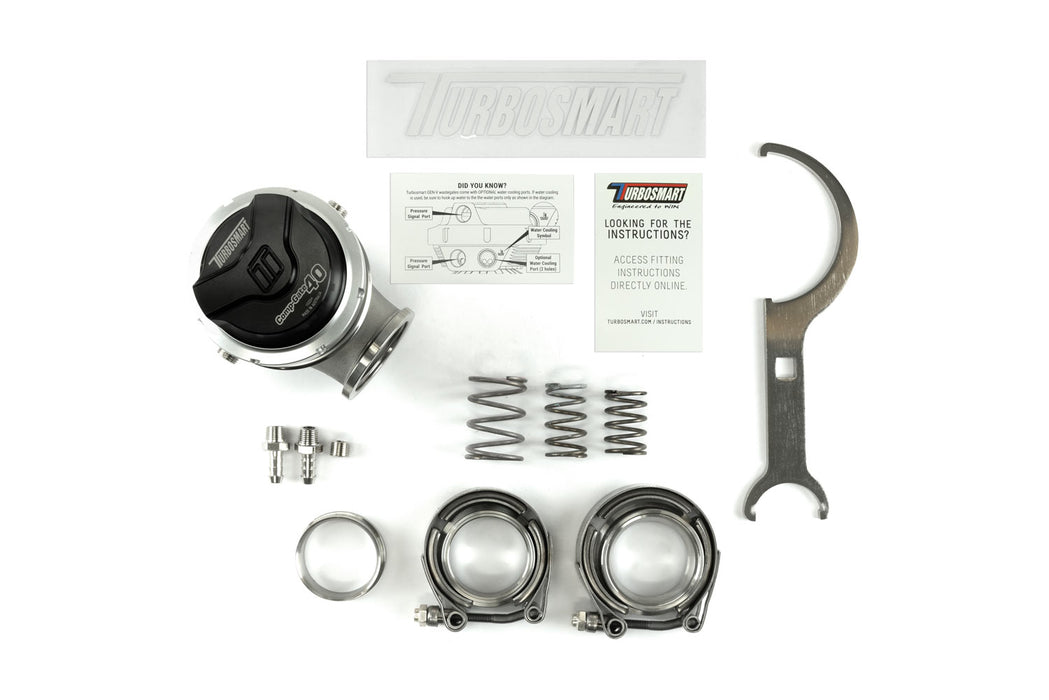

WHAT’S INCLUDED
- GenV CompGate40 External Wastegate (Black)
- Valve seat
- Inlet V-band clamp
- Inlet weld flange
- Outlet V-band clamp
- Outlet weld flange
- Collar locking tool
- Spring kit
- Fitting kit
IMPORTANT NOTE
This product does not have a CARB EO number and is not legal for sale or use on emissions-controlled vehicles in California. Intended for race and off-road use only.
