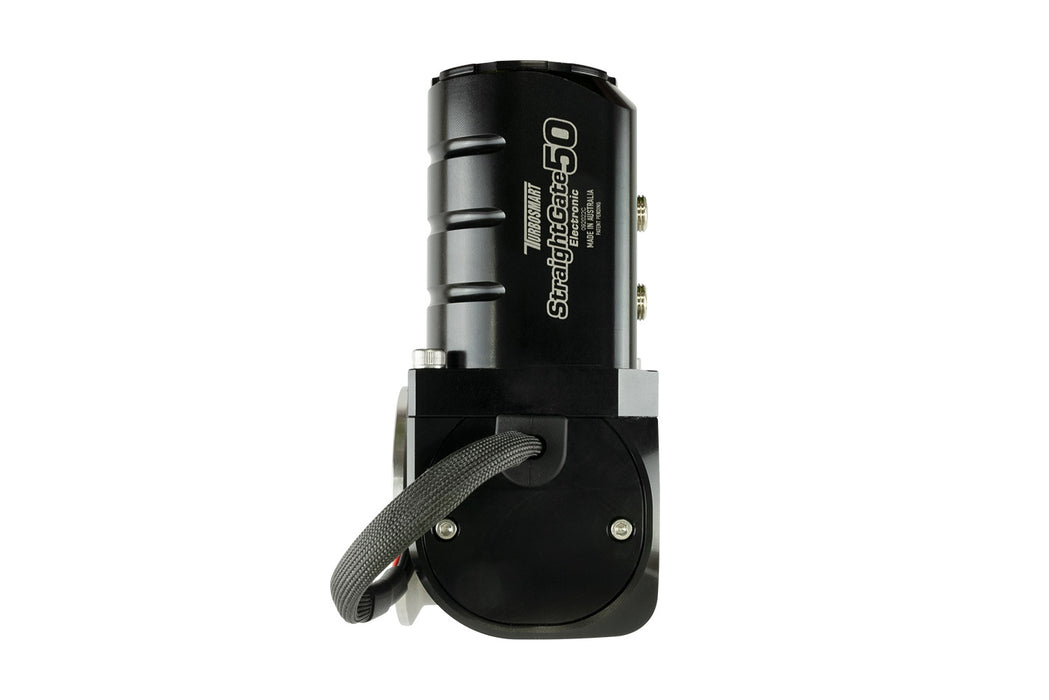

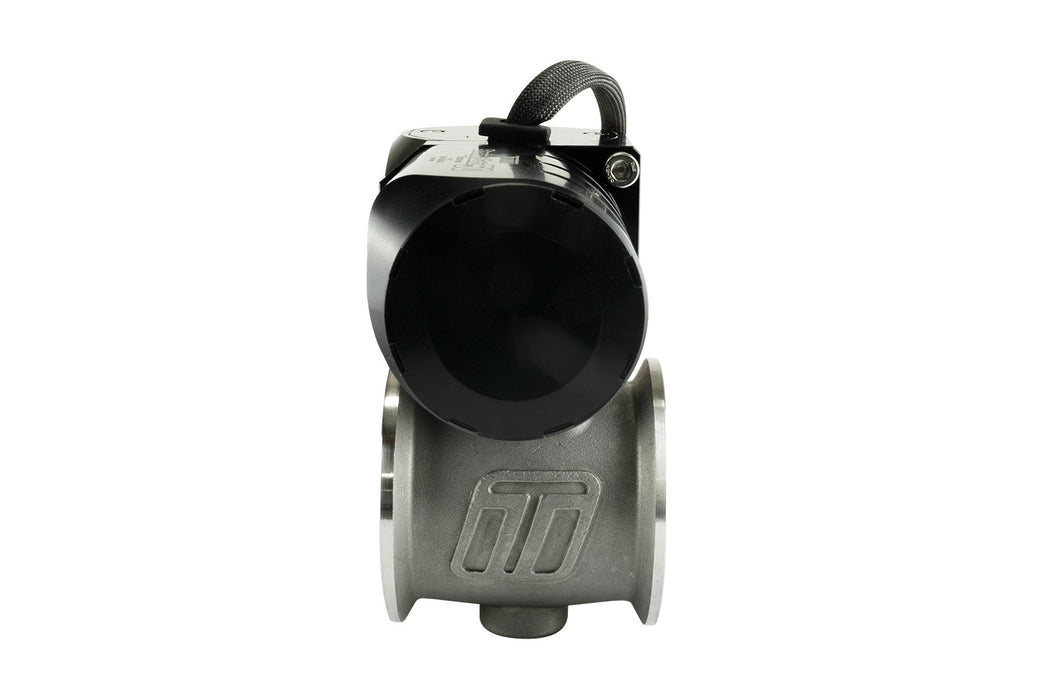

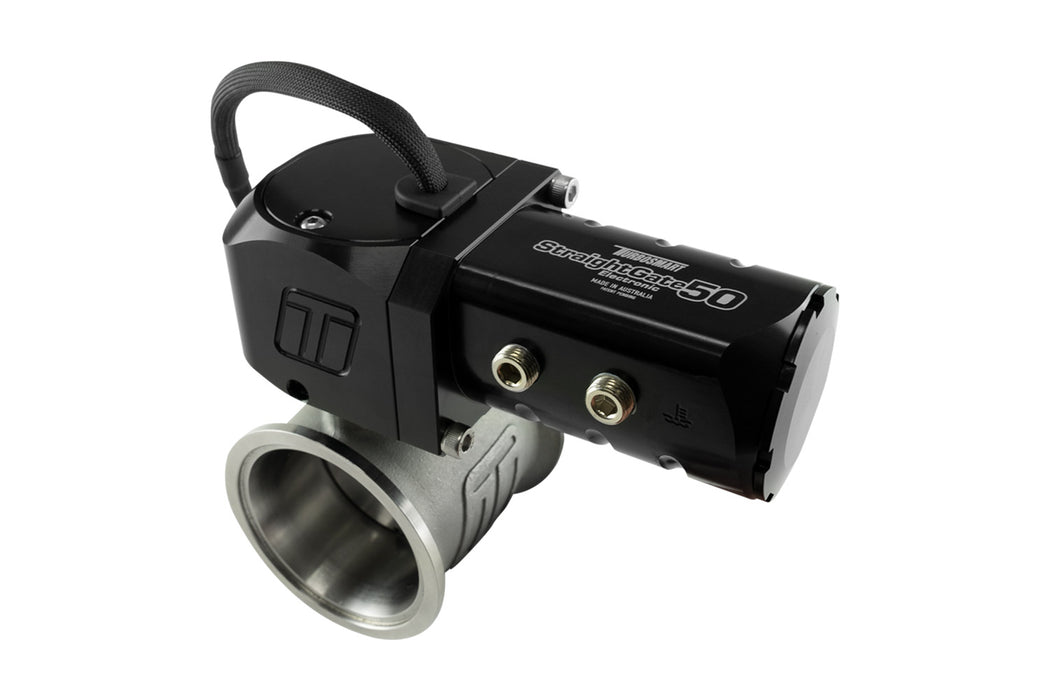

The Turbosmart Electronic StraightGate eSG50 External Wastegate represents a major evolution in boost control technology. As the world’s first electronically actuated, butterfly-style external wastegate, the eSG50 delivers exceptional exhaust flow and near-linear valve control across the entire operating range—without springs, diaphragms, or reference hoses.

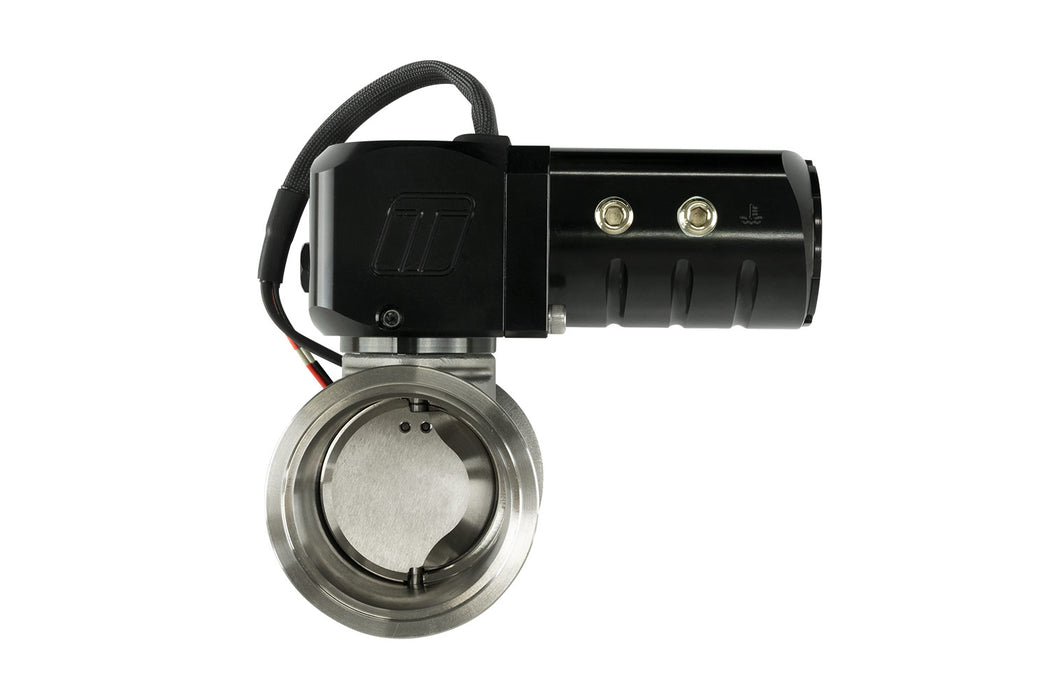

Unlike traditional poppet-style wastegates, the eSG50 utilizes a zero-offset butterfly valve that allows exhaust gas to pass straight through the valve body rather than turning 90 degrees. This straight-through design dramatically increases flow efficiency, enabling the eSG50 to exceed the flow capability of many conventional 60Â mm wastegates while retaining the control characteristics of a smaller valve.
Electronic actuation is handled by an integrated servo motor and Turbosmart’s zero-backdrive gearbox, allowing precise valve positioning even under extreme exhaust drive pressure. Because the butterfly valve is centrally pivoted and exposed to equal pressure on both sides, the valve is inherently self-balanced, requiring less actuation force and enabling faster response with improved stability at high boost levels.
The eSG50 features full electronic control via a dual H-bridge input and includes onboard sensors for actuator temperature and valve position, available in both analog (0–5V) and digital (PWM) outputs. This allows for advanced boost control strategies, expanded tuning windows, and real-time monitoring. With proper exhaust manifold priority, the StraightGate can provide control from near-zero boost all the way to maximum boost with exceptional repeatability.
Manufactured from high-temperature stainless steel materials and validated in-house, the eSG50 is designed for extreme motorsport environments. Integrated liquid cooling provisions further enhance thermal stability and actuator longevity in high-heat applications.
FEATURES
- 50Â mm (1.97") zero-offset butterfly-style valve
- Straight-through flow path for exceptional exhaust flow
- Full electronic actuation (no springs, diaphragms, or reference hoses)
- Dual H-bridge electronic input
- Stainless steel (630) butterfly and shaft
- Stainless steel (347) wastegate body
- Heat-treated stainless steel (431) V-band clamps
- Self-balancing valve design for stability under high drive pressure
- Onboard actuator temperature sensor (0–5V analog)
- Onboard valve position sensors (0–5V analog and PWM digital)
- Clockable actuator position (3 × 120° orientations)
- 360° mounting options via V-band connection
- Liquid cooling provision for actuator stability
- 7-wire unterminated flying lead wiring loom
APPLICATIONS
- Advanced electronic boost control systems
- High-power street, track, and motorsport applications
- Builds requiring precise, fast, and repeatable boost regulation
INSTALLATION INSTRUCTIONS
eSG Electronic StraightGate Instructions
IMPORTANT NOTE
This product requires compatible electronic boost control hardware and tuning strategy. Professional installation and calibration are strongly recommended. This product does not carry a CARB EO and is intended for race and off-road use only.
