3.500" V-Band Assembly "Male/Female" 304 Stainless - Standard Clamp

by Ace Race Parts
SKU 22010
Availability:
62 in stock, ready to be shipped
$ 45.50 - $ 45.50
$ 45.50
$ 45.50 - $ 45.50
$ 45.50

V-Band Dimensions

Tube Size3.500"
Flange OD4.079"
T-Bolt5/16"-24

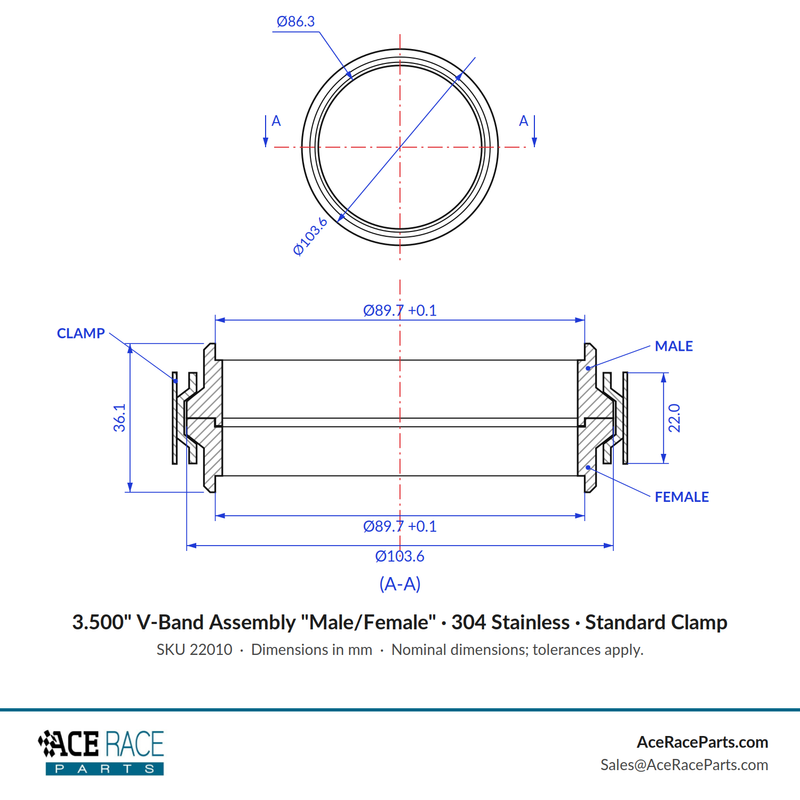

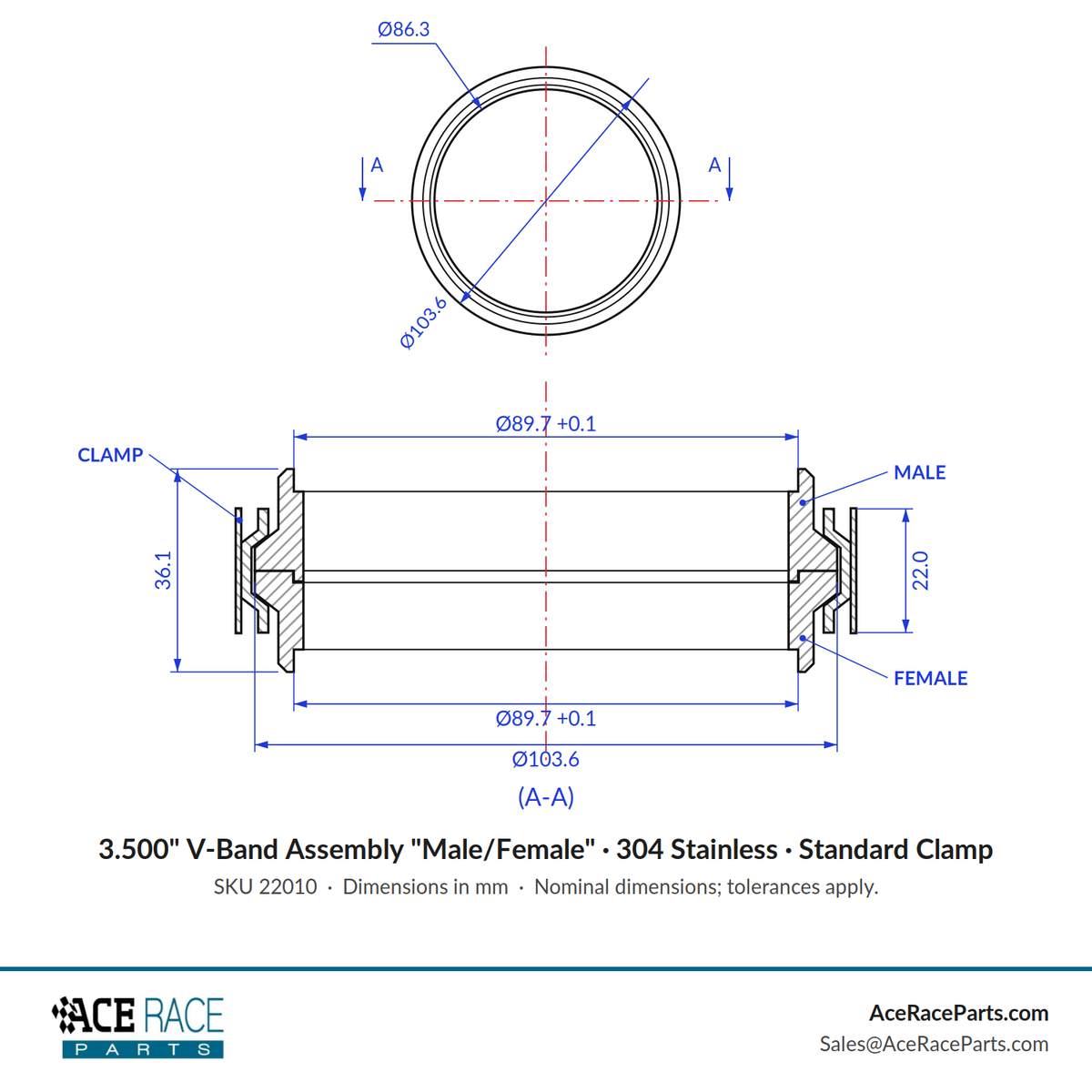

View drawing

Matching an existing V-Band?

There is no industry standard for V-Band flange dimensions, so a clamp or flange of the same tube size from another brand may not fit. Standard and Quick Release styles also do not interchange. Before ordering, measure your existing flange and compare it to ours.

V-Band sizing guide ›

Nominal dimensions; material and manufacturing tolerances apply. Need help matching a part? Email us and we'll help.

304 STAINLESS V-BAND ASSEMBLY — LEAK-FREE INTERLOCKING FLANGE DESIGN

The Ace Race Parts brand of Stainless Steel V-Band Assemblies features a 304 Stainless V-Band Clamp and a set of "Male/Female" interlocking V-Band Flanges, which are precision CNC machined from solid 304 Stainless round bar. Our V-Band Clamps, Flanges, and full Assemblies are suitable for fabricating exhaust systems, downpipes, merge collectors, and other custom or replacement components.

FEATURES

  • Precision CNC Machined 304 Stainless
  • Male/Female Interlocking Flange Design
  • Creates an Air-Tight Seal — No Gasket Required
  • Flanges are Counterbored to Matching Tube Size
  • Suitable for Downpipes, Exhausts, Merge Collectors, and more!

Our V-Band Flanges utilize an interlocking flange design that ensures a leak-free seal without the need for a gasket and features a counterbore on the weld side of the flange that allows the matching tube size material to slip into the flange. The counterbore is machined to a width of 0.065" and aligns with the inside diameter (ID) of matching tube size material — preventing any unnecessary reductions or restrictions in the flow of exhaust gases.

If you need assistance in finding a matching V-Band Clamp or Flange for an existing application please review our "How To Measure A V-Band Flange" information here: How to Measure a V-Band Flange.

This V-Band Clamp Assembly includes the following items:

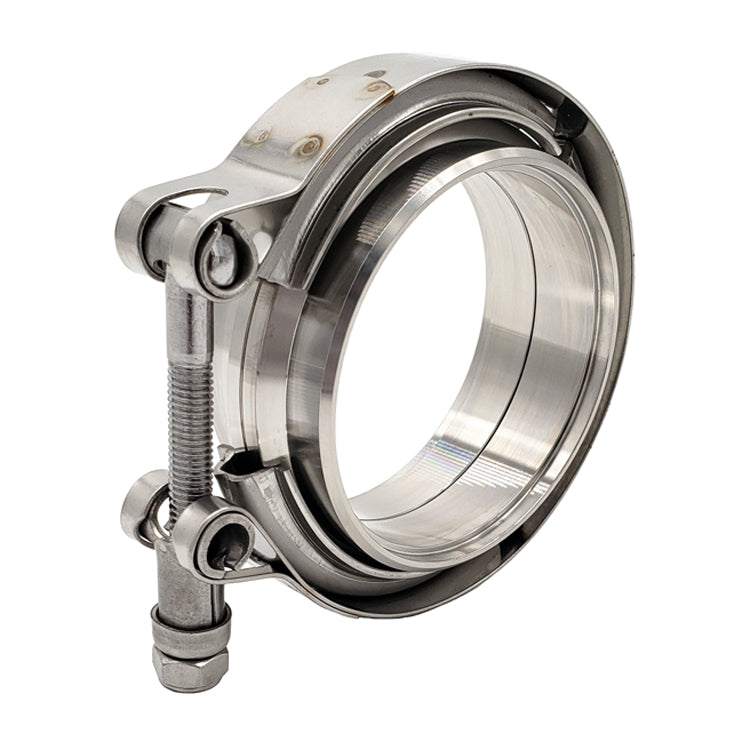

  • (1) V-Band Clamp, Standard T-Bolt Style, 304 Stainless (SKU: 22026)

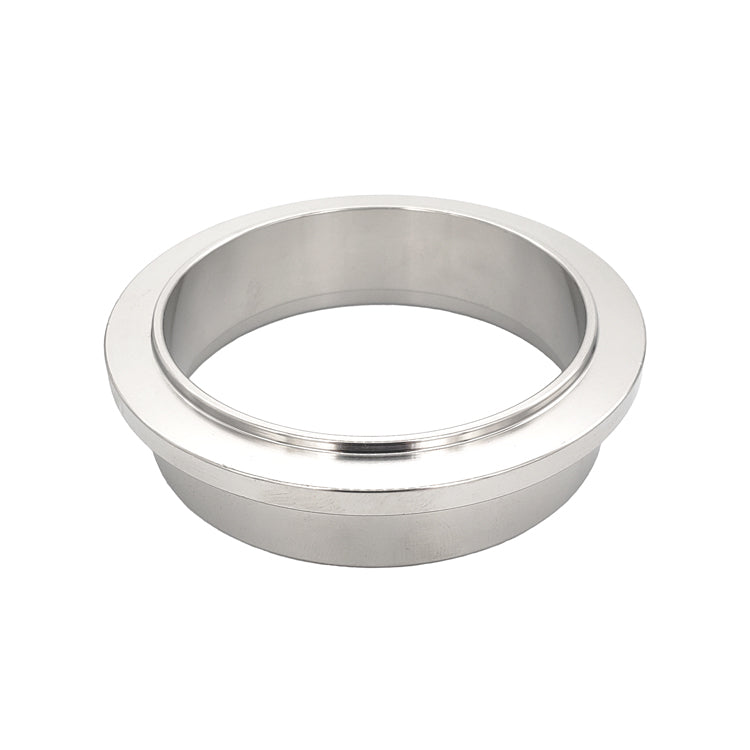

  • (1) "Male" Interlocking V-Band Flange, 304 Stainless (SKU: 22042)

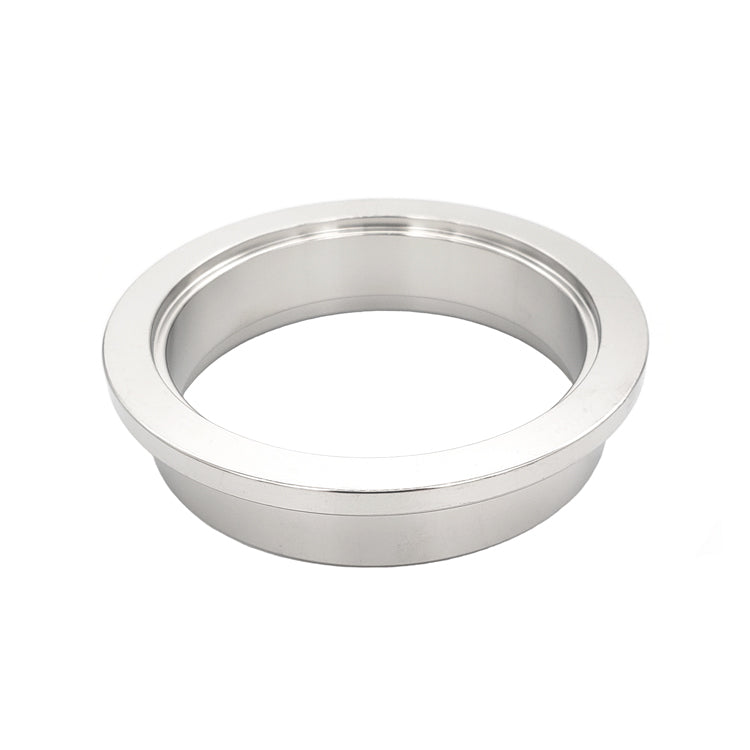

  • (1) "Female" Interlocking V-Band Flange, 304 Stainless (SKU: 22058)
