2.000" V-Band Assembly "Male/Female" 304 Stainless - Standard Clamp - Ace Race Parts

2.000" V-Band Assembly "Male/Female" 304 Stainless - Standard Clamp

SKU:
Brand: Ace Race Parts
$ 31.05

/ each

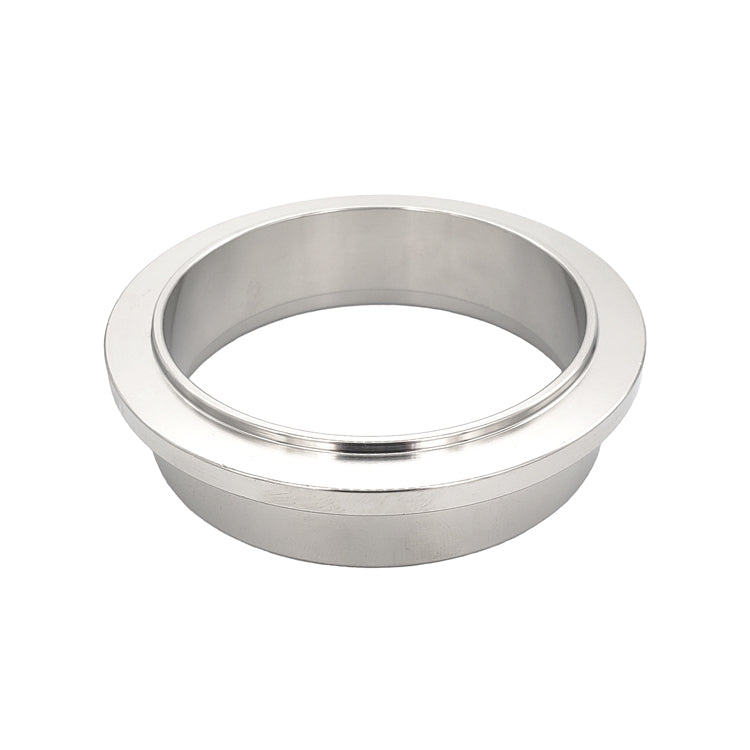

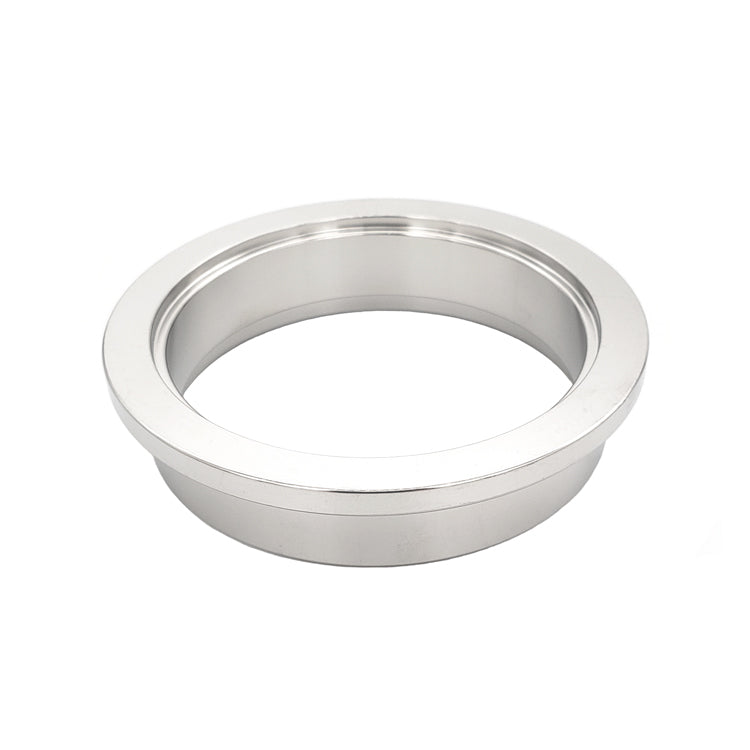

Our V-Band Assemblies utilize a 304 stainless clamp and flanges. Our "Male/Female" flanges have an interlocking seating surface to ensure proper alignment during installation. The butt-weld side of the flanges offer a small groove that allows the flange and tube to be aligned better prior to welding. Each turbo/exhaust V-band assembly includes one (1) t-bolt style clamp and two (2) interlocking flanges.

DETAILED SPECIFICATIONS:

Flange ID 2.000"
Flange OD 2.560"
Individual Flange Thickness (Single Flange) 0.750"
Clamp Bandwidth 0.750"
Clamp Type V-Band, Standard T-Bolt
Material Type 304 Stainless
Provided Fasteners
Metal Lock Nut (QTY: 1)
Non-Locking Nut (QTY: 1)
Fastener Size (Material)
1/4"-28 (304 Stainless)

Please note: Our V-Band clamps are supplied with a metal lock nut and a non-locking hex nut. The metal lock nut is a locking-style nut and is not intended to be used during mock-up. Attempting to thread, remove, and re-thread the lock nut may cause damage to the "T-Bolt" section of the clamp. In some cases, excessive force can damage and/or break the "T-Bolt" section of the clamp. If you intend to use our clamps during the mock-up process please use a non-locking hex nut.

Ace Race Parts is not responsible for damage caused to our clamps due to the use of the locking-style nut during mock-up or removal. The thread pitch of our hex nuts, lock nuts and the threaded portion of the "T-Bolt" section of the clamp is 1/4"-28 (fine thread).

Note: The photo of the three types of nuts includes a nylon lock nut. This type of nut is not always supplied with our v-bands. The two main types of nuts supplied with each v-band assembly or clamp is the metal non-locking hex nut (finish hex nut) and the metal lock nut. If you would like a nylon lock nut to be supplied with your order please contact us.
