4.000" V-Band "Female" Flange (0.375" Overall Thickness) 6061 Aluminum - Ace Race Parts
4.000" V-Band "Female" Flange (0.375" Overall Thickness) 6061 Aluminum - Ace Race Parts

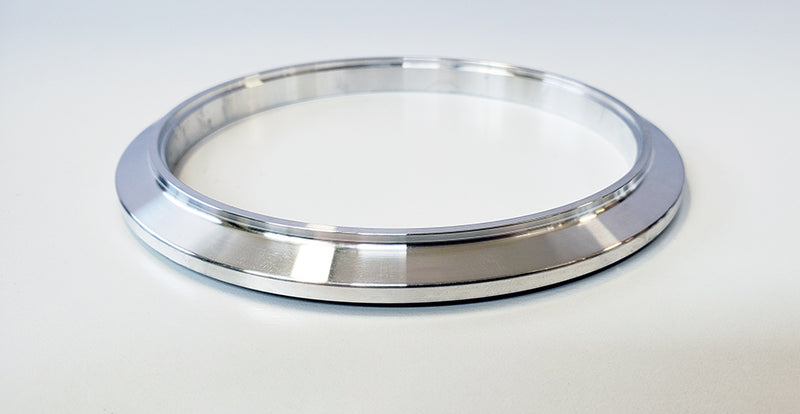

4.000" V-Band "Female" Flange (0.375" Overall Thickness) 6061 Aluminum
4.000" V-Band "Female" Flange (0.375" Overall Thickness) 6061 Aluminum - Ace Race Parts
4.000" V-Band "Female" Flange (0.375" Overall Thickness) 6061 Aluminum - Ace Race Parts

4.000" V-Band "Female" Flange (0.375" Overall Thickness) 6061 Aluminum

by Ace Race Parts
SKU 12070-1
Availability:
36 in stock, ready to be shipped
$ 18.99 - $ 18.99
$ 18.99
$ 18.99 - $ 18.99
$ 18.99

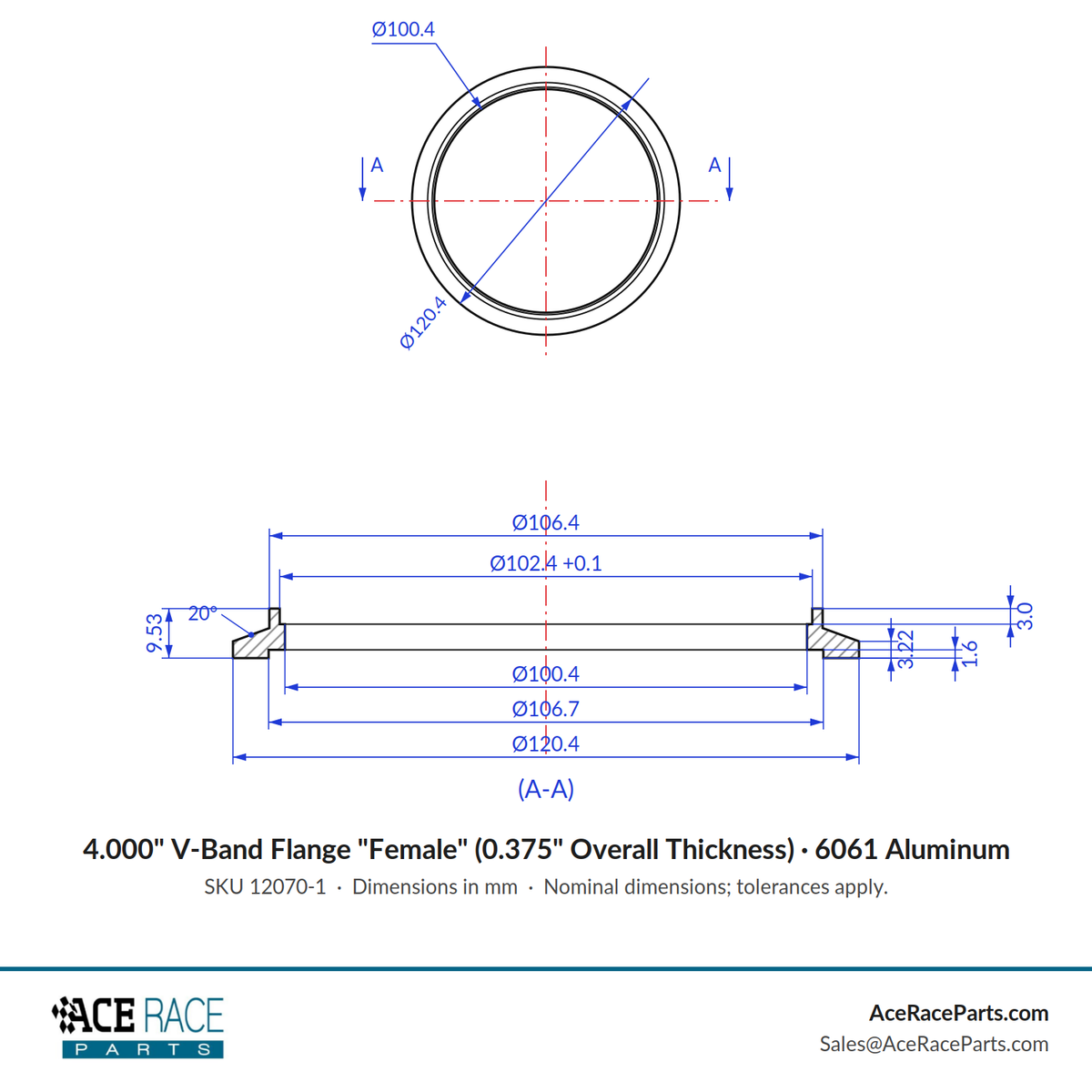

V-Band Dimensions

Tube Size4.000"
Fits Flange OD4.740"
View drawing

Matching an existing V-Band?

There is no industry standard for V-Band flange dimensions, so a clamp or flange of the same tube size from another brand may not fit. Standard and Quick Release styles also do not interchange. Before ordering, measure your existing flange and compare it to ours.

V-Band sizing guide ›

Nominal dimensions; material and manufacturing tolerances apply. Need help matching a part? Email us and we'll help.

Ā

Ace Race PartsĀ Aluminum V-Band FlangesĀ are manufactured from 6061-T6 Aluminum in an ISO 9001 certified facility.Ā Our Aluminum V-Band Flanges are offered in two configurations, "Male + O-Ring" and "Female", and when used together create an air-tight seal. OurĀ V-Band ClampsĀ and V-Band Flanges are an affordable and durable type of clamping system that is suited for high performance automotive, diesel, marine and industrial applications.

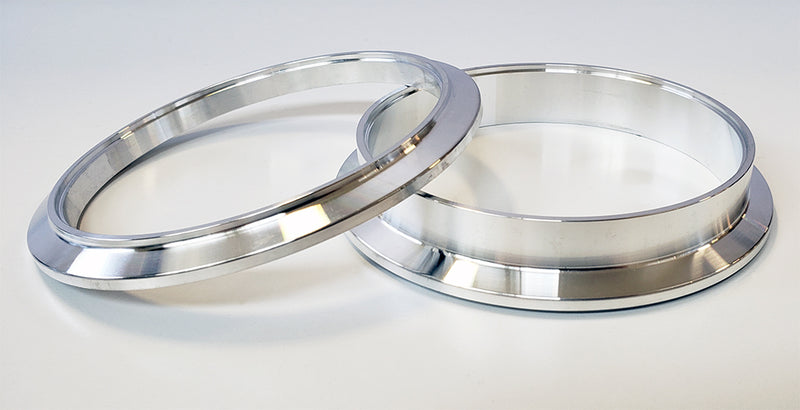

The ultra-thin 0.375" thick V-Band Flange (left) vs a standard 0.790" thick V-Band Flange (right).

DETAILED SPECIFICATIONS:

Flange ID 4.000"
Flange OD 4.740"
Flange Thickness 0.375"
Flange Style
 Female
Flange Material Type Aluminum
