3.000" V-Band Assembly Mild Steel/Stainless Combination - Standard Clamp

by Ace Race Parts
SKU 22008-1
Availability:
Only 4 left!
$ 37.50 - $ 37.50
$ 37.50
$ 37.50 - $ 37.50
$ 37.50

V-Band Dimensions

Tube Size3.000"
Flange OD3.583"
T-Bolt5/16"-24

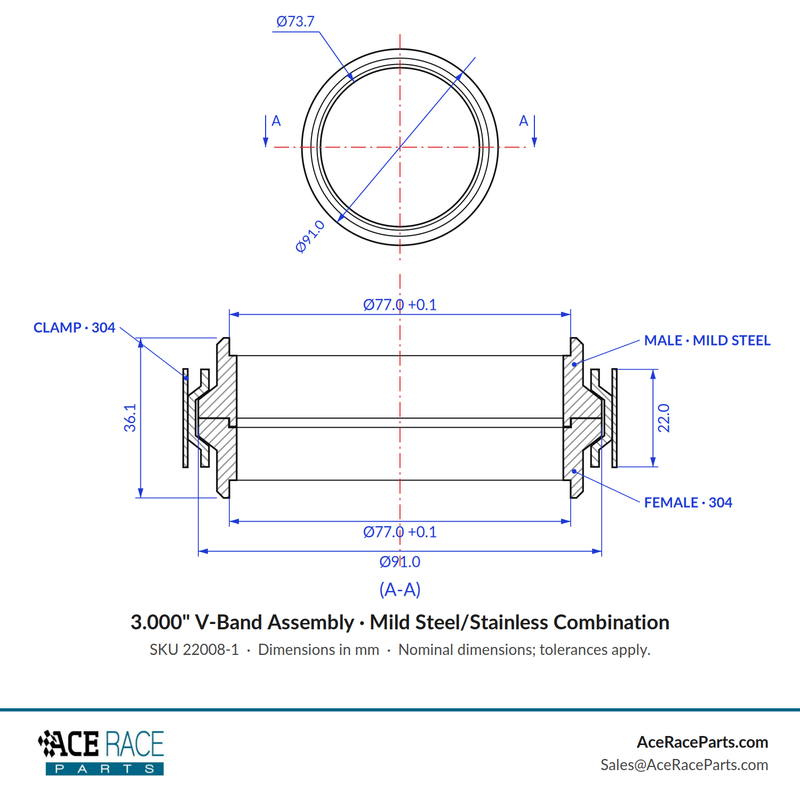

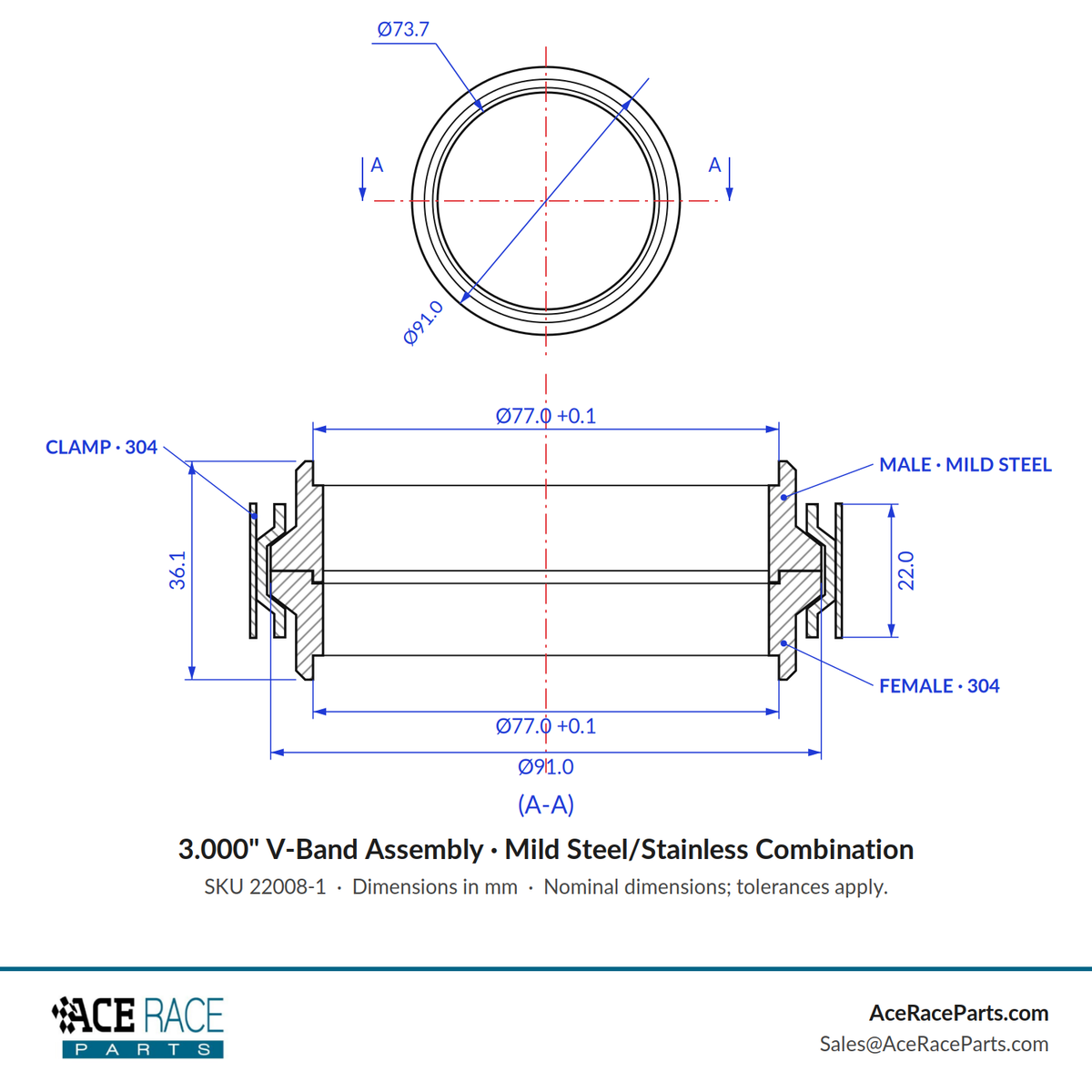

View drawing

Matching an existing V-Band?

There is no industry standard for V-Band flange dimensions, so a clamp or flange of the same tube size from another brand may not fit. Standard and Quick Release styles also do not interchange. Before ordering, measure your existing flange and compare it to ours.

V-Band sizing guide ›

Nominal dimensions; material and manufacturing tolerances apply. Need help matching a part? Email us and we'll help.

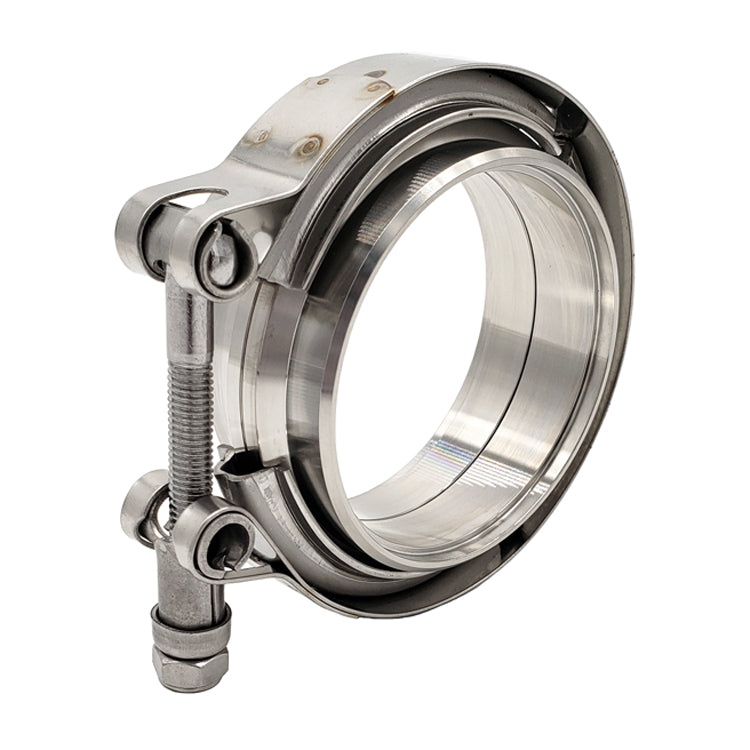

This V-Band Clamp Assembly includes the following items:
  • (1) V-Band Clamp, Standard T-Bolt Style, 304 Stainless
  • (1) "Male" Interlocking V-Band Flange, Mild Steel
  • (1) "Female" Interlocking V-Band Flange, 304 Stainless

Ace Race Parts Mild Steel/Stainless Steel Combination V-Band Assemblies are precision CNC machined and feature a 304 Stainless Steel Standard style V-Band Clamp and a "Male" Mild Steel V-Band Flange, and a "Female" 304 Stainless V-Band Flange. V-Band Clamps and Flanges are an affordable and durable type of clamping system that is suited for high performance automotive, diesel, marine and industrial applications.

Our "Male/Female" interlocking style V-Band Flanges utilize an interlocking seating surface to ensure a leak-free seal without the need for a gasket and provides an easy way to align the flanges during installation. The interlocking seating surface, the area where the two flanges meet within the clamp, makes fitment and installation a breeze even when in the tightest of areas.

The weld side of our Mild Steel and Stainless Steel V-Band Flanges are CNC machined with a counterbore to allow the matching tube size material to slip into the V-Band Flange and be welded in place with the proper alignment. The V-Band Flange's counterbore is machined to be 0.065" wide and allows for the inside diameter (ID) of 16ga wall thickness tubing to align perfectly with the ID of the V-Band Flange without any restrictions or reductions.
