2.500" V-Band Assembly "Male/Female" - Titanium/Stainless Combination
2.500" V-Band Assembly Titanium/Stainless Combination - Ace Race Parts
2.500" V-Band Assembly Titanium/Stainless Combination - Ace Race Parts

2.500" V-Band Assembly "Male/Female" - Titanium/Stainless Combination

by Ace Race Parts
SKU 72006-1
Availability:
30 in stock, ready to be shipped
$ 125.95 - $ 125.95
$ 125.95
$ 125.95 - $ 125.95
$ 125.95

V-Band Dimensions

Tube Size2.500"
Flange OD3.240"
T-Bolt1/4"-28

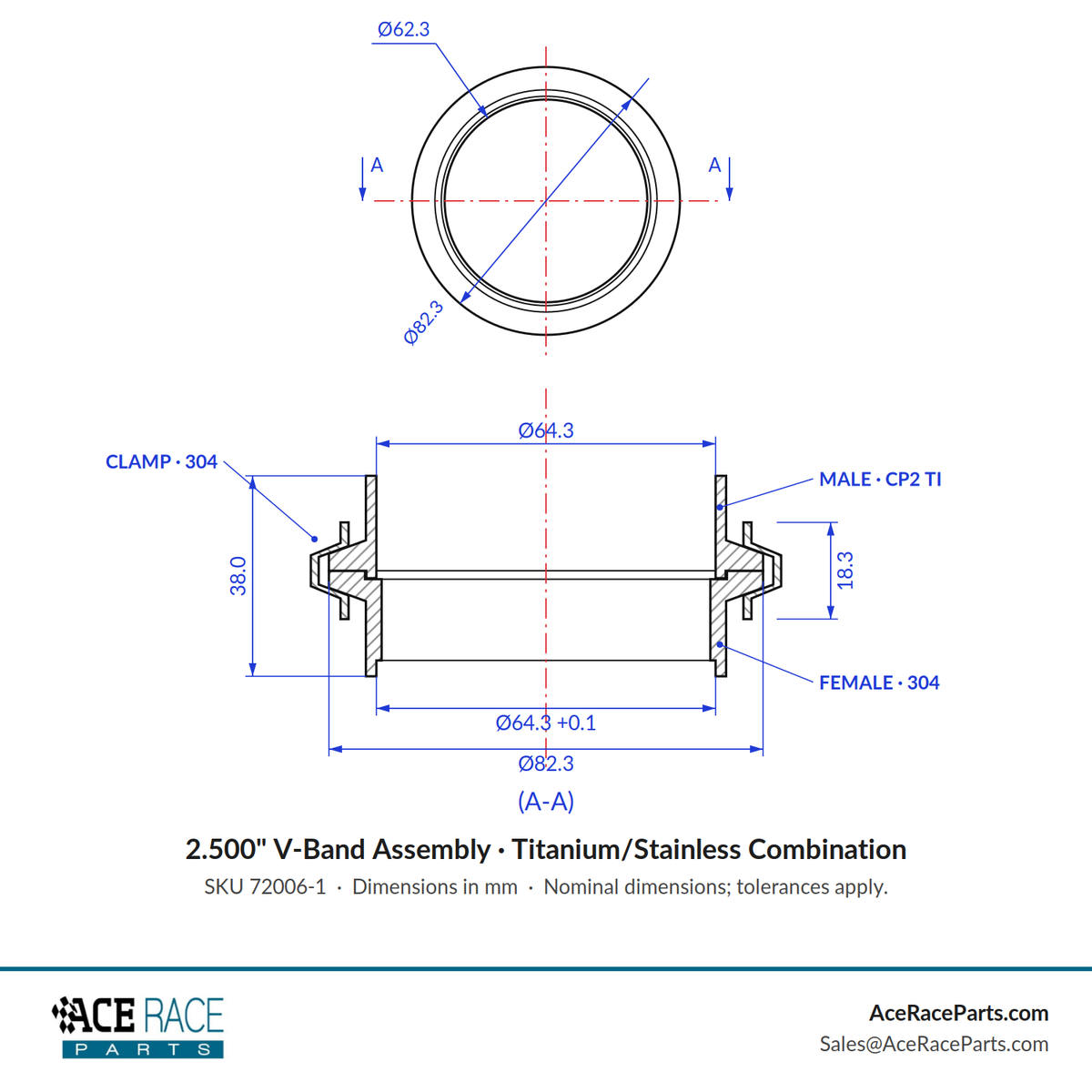

View drawing

Matching an existing V-Band?

There is no industry standard for V-Band flange dimensions, so a clamp or flange of the same tube size from another brand may not fit. Standard and Quick Release styles also do not interchange. Before ordering, measure your existing flange and compare it to ours.

V-Band sizing guide ›

Nominal dimensions; material and manufacturing tolerances apply. Need help matching a part? Email us and we'll help.



Our Titanium/Stainless Combination V-Band Assemblies are precision CNC machined and feature a 304 Stainless V-Band Clamp, a "Female" style 304 Stainless V-Band Flange and a "Male" style CP2 Titanium V-Band Flange.

FEATURES:

  • Combines two different material types in a single clamp
  • 304 Stainless V-Band Clamp
  • 304 Stainless Female V-Band Flange
  • CP2 Titanium Male V-Band Flange
  • Counterbored to fit matching tube size
  • Suitable for a wide range of uses, including automotive, diesel, and industrial applications

The seating surface (the area where the two flanges meet) of our "Female" 304 Stainless V-Band Flange and "Male" CP2 Titanium V-Band Flange utilizes an interlocking flange design to create an air-tight, leak free seal. The weld side of our Titanium V-Band Flange is machined to allow the matching tube size material to slip into the V-Band Flange; whereas, the weld side of our Stainless V-Band Flange is precision machined with a counterbore. The counterbore is machined to a width of 0.065" and aligns with the inside diameter (ID) of matching tube size material — preventing any unnecessary reductions or restrictions in the flow of exhaust gases.

This Titanium/Stainless Combination V-Band Clamp Assembly includes the following items:

  • 304 Stainless Steel V-Band Clamp [Quantity: 1]
  • 304 Stainless "Female" V-Band Flange [Quantity: 1]
  • CP2 Titanium "Male" V-Band Flange [Quantity: 1]
