3.000" V-Band "Male" Flange 304 Stainless - Fits Standard V-Band Clamp - Ace Race Parts
3.000" V-Band "Male" Flange 304 Stainless - Fits Standard V-Band Clamp - Ace Race Parts
3.000" V-Band Flange "Male" 304 Stainless - Fits Standard V-Band Clamp
3.000" V-Band "Male" Flange 304 Stainless - Fits Standard V-Band Clamp - Ace Race Parts
3.000" V-Band "Male" Flange 304 Stainless - Fits Standard V-Band Clamp - Ace Race Parts

3.000" V-Band Flange "Male" 304 Stainless - Fits Standard V-Band Clamp

by Ace Race Parts
SKU 22040
Availability:
100 in stock, ready to be shipped
$ 17.99 - $ 17.99
$ 17.99
$ 17.99 - $ 17.99
$ 17.99

V-Band Dimensions

Tube Size3.000"
Flange OD3.583"
Apex / Base0.170" / 0.287"

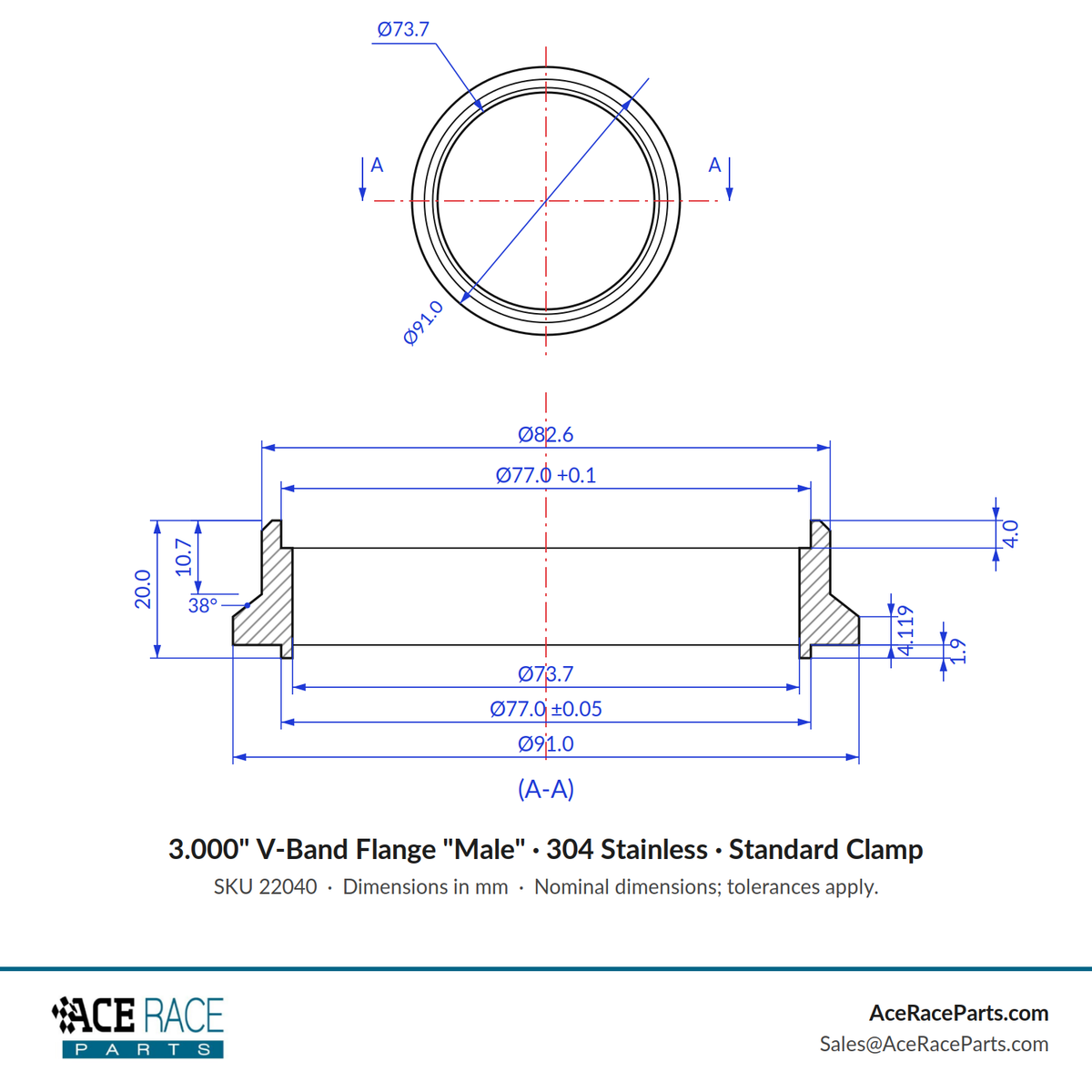

View drawing

Matching an existing V-Band?

There is no industry standard for V-Band flange dimensions, so a clamp or flange of the same tube size from another brand may not fit. Standard and Quick Release styles also do not interchange. Before ordering, measure your existing flange and compare it to ours.

V-Band sizing guide ›

Nominal dimensions; material and manufacturing tolerances apply. Need help matching a part? Email us and we'll help.

FEATURES:

  • Perfect for exhaust systems, turbo manifolds, and more!
  • Precision CNC machining
  • 304 Stainless Steel
  • Male style seating surface
  • Counterbored to fit matching tube size

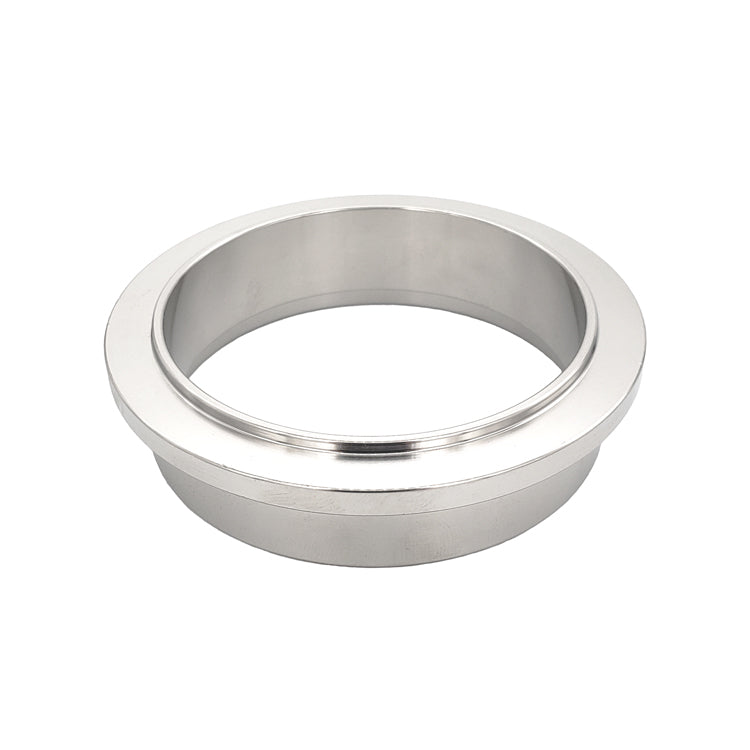

Our "Male" V-Band Flanges are precision CNC machined from solid 304 Stainless Steel round bar and feature a counterbore on the weld side of the flange to allow the matching tube size material to slip into the V-Band Flange and be welded in place with the proper alignment. The seating surface of this Male style V-Band Flange utilizes a CNC machined retainer that, when paired with the matching "Female" style flange, creates a leak-free seal without the need for a gasket.

Note: This "Male" style V-Band Flange is only compatible with our Standard style V-Band Clamps and will not fit our Quick Release style V-Band Clamps. If you are unsure of what type of V-Band Flange you need please contact us and we will happily assist you to find the compatible V-Band Flange(s) and Clamp for your application.

If you need assistance in finding a matching V-Band Clamp for an existing application please review our "How To Measure A V-Band Flange" information here: How to Measure a V-Band Flange.
